Introducing the Cyber 1S1P PCI

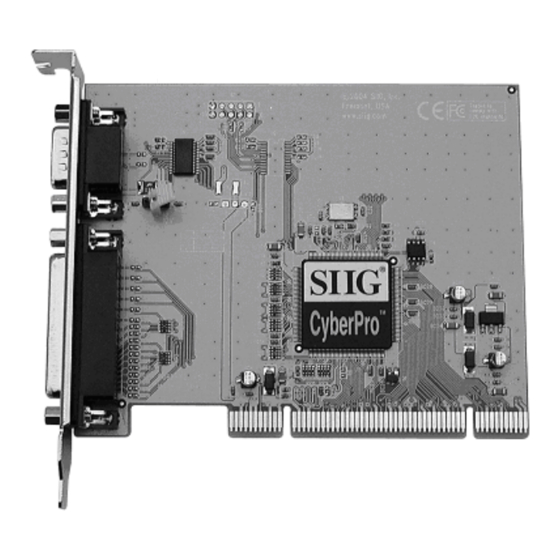

The Cyber 1S1P PCI high-speed serial I/O card provides
one 9-pin serial port and one parallel port.
Features and Benefits
•
Conforms to PCI v2.2 Plug and Play
•
Full support for Windows-based software
•
Reduces CPU load and improves system
performance dramatically
•
IRQ sharing feature reduces IRQ conflicts
•
High-speed serial port (9-pin) works with 56K V.90
external modems, ISDN terminal adapters, PDAs,
digital cameras, label printers and other serial port
devices
•
Built-in FIFO buffers dramatically increase data
transmit/receive speed, especially under Windows'
multitasking environment
•
Each serial port can be configured for either 5v or
12v output, for serial devices that require power
•
IEEE 1284 compliant SPP/EPP/ECP parallel port
System Requirements
•
Pentium or equivalent computer with an available
PCI slot
•
Windows
/64-bit)/Server 2003 (32-/64-bit)/Vista (32-/64-bit)
04-0344C
Cyber 1S1P PCI

Quick Installation Guide

95/98/98SE/ME/NT 4.0/2000/XP (32-
®
1
