1394 PCI Adapter
Quick Installation Guide

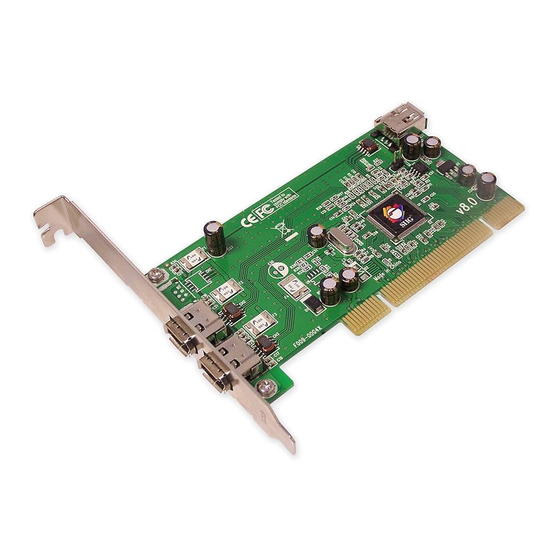

Introducing the 1394 PCI Adapter
The 1394 PCI Adapter is designed to add FireWire
(1394a) interface to your PC or Mac computer for easy
connection to DV camcorders, hard disk drives (self-
powered), scanners, printers, and other 1394 devices.
Features and Benefits
Compliant with IEEE 1394-1995, 1394a-2000 and
•
1394 OHCI 1.1 standards
PCI 2.2 compliant and works in 32/64-bit, 3.3V or
•
5V PCI slots
Provides three high-speed firewire ports for
•
connecting up to 63 devices
Supports both asynchronous and isochronous data
•
transfer modes
Supports serial bus data transfer rates of 100, 200,
•
and 400 Mbps
System Requirements
PC:
Pentium II or equivalent PC with an available PCI
•
slot
Windows 98SE/ME/2000/XP
•
Mac:
Power Mac computer with an available PCI slot
•
Mac OS 8.6 or later
•
04-0222C
1
Advertisement
Related Manuals for SIIG 1394 PCI Adapter
Summary of Contents for SIIG 1394 PCI Adapter
-
Page 1: Quick Installation Guide
1394 PCI Adapter Quick Installation Guide Introducing the 1394 PCI Adapter The 1394 PCI Adapter is designed to add FireWire (1394a) interface to your PC or Mac computer for easy connection to DV camcorders, hard disk drives (self- powered), scanners, printers, and other 1394 devices. Features and Benefits Compliant with IEEE 1394-1995, 1394a-2000 and •... -
Page 2: Hardware Installation
Package Contents 1394 PCI Adapter • This quick installation guide • Hardware Installation General instructions for installing the card are provided below, since the design of computer cases and motherboards vary. Refer to your computer’s reference manual for further information, if needed. Turn OFF the power to your computer. -
Page 3: Driver Installation
Driver Installation Please make sure the board is installed before proceeding with driver installation. Windows 98SE When Windows boots up, a New Hardware Found dialog box should appear and the OHCI Compliant IEEE 1394 Host Controller is identified. At the Add New Hardware Wizard window, click Next. - Page 4 To verify successful Windows installation: Check Device Manager to verify successful driver installation. Windows 98SE/ME: From the main desktop, right click My Computer, then click Properties. Click Device Manager tab. Windows 2000/XP: Right click My Computer, then click Manage. Click Device Manager. Double click 1394 Bus Controller or IEEE 1394 Bus host controllers option.
-
Page 5: Technical Support
The 5-year manufacturer warranty supplied with this product is offered by SIIG, Inc. If you should happen to encounter any problems with this product, please follow the procedures below. - Page 6 Fremont, CA 94538-3152 1394 PCI Adapter is a trademark of SIIG, Inc. SIIG and SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. Pentium is a registered trademark of Intel Corporation. Mac and Mac OS are registered trademarks of Apple Computer, Inc. Other names used in publication are for identification only and may be trademarks of their respective companies.
