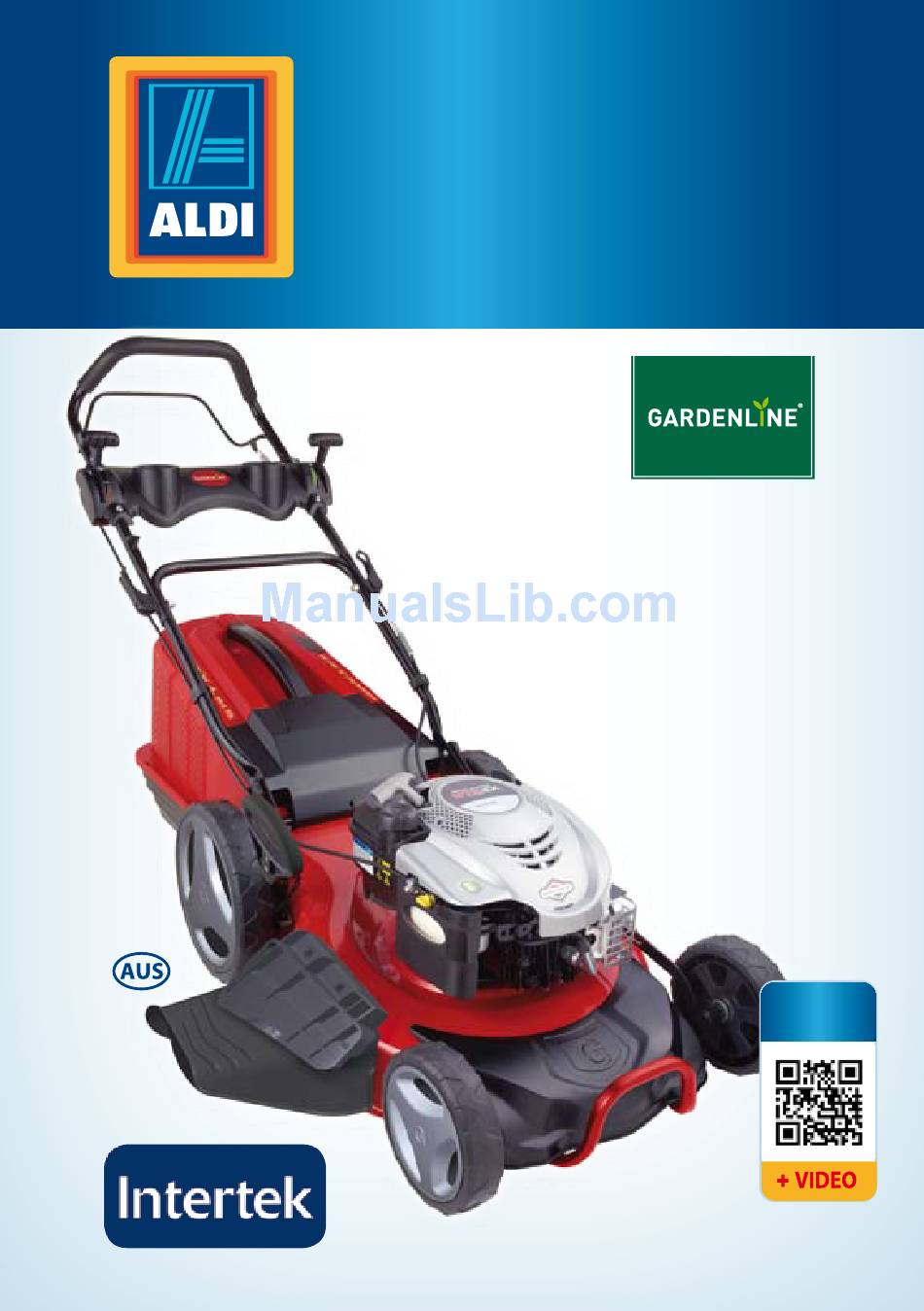

- Page 1 User Manual 190CC 4 STROKE SELF PROPELLED, VARIABLE SPEED PETROL LAWN MOWER WITH SIDE DISCHARGE & MULCH FUNCTION Product Info www.powertoolsupport.com...
- Page 2 Try it out now Just scan the QR code with your smartphone and Product find out more about the Aldi product you have Info purchased*. * Depending on your tarif you may be charged for the connection.
-
Page 3: Table Of Contents
Contents Pack contents /parts Description of Symbols General safety instructions Safety rules for Petrol Lawn Mowers Intended use of the 190cc Petrol Lawn Mower Parts List Assembly Attaching the Lower Handles Attaching the Upper Handles Assembly of the 60L Hard Catcher Attaching the 60L Hard Catcher Assembly of the Side Discharge Chute Adding and Checking the oil... -
Page 4: Pack Contents /Parts
1 x Standard Hose Fitting 1 x Mulching Block 1 x Instruction Manual 1 x Warranty Card & details 1 x Quick Start Guide AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. 49291 • 08/2015 • 49291 (toll free) -
Page 5: Description Of Symbols
Description of symbols The rating plate on your lawn mower may show symbols. These represent important information about the product or instructions on its use. Conforms to relevant standards for electrical safety and electromagnetic compatibility. Wear hearing protection. Wear eye protection. Wear breathing protection. -
Page 6: General Safety Instructions
General safety warnings Safety instructions WARNING Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings below refers to your mains-operated (corded) power tool, garden power tool, battery-operated (cordless) power tool or your petrol operated garden tool. -
Page 7: Power Tool Use And Care
• D o not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. • D ress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. • I f devices are provided for the connection of dust extraction and collection facilities ensure that these are connected and properly used. -
Page 8: Safety Rules For Petrol Lawn Mowers
General safety warnings Safety rules for Petrol Lawn Mowers Training • R ead the instructions carefully. Get familiar with the controls and proper use of the equipment. • O nly use the lawn mower for the purpose for which it was designed, i.e. for cutting and collecting grass. Any other use can be hazardous, causing damage to the machine. • N ever allow children or people unfamiliar with these instructions to use the lawn mower. - Page 9 – If fuel is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until the fuel has evaporated and the vapour dispersed. – Replace all fuel tanks and containers caps securely. • Substitute faulty silencers.
- Page 10 • S tart the engine carefully, following the instructions and keeping feet well away from the blade. • D o not tilt the lawn mower when starting the engine. Start the engine on a flat surface that is free of obstacles and tall grass. • D o not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times. • Never pick up or carry a lawn mower while the engine is running. • Stop the engine and disconnect the spark plug wire: –...
-
Page 11: Maintenance And Storage
• F uel goes off in about 3 - 4 months. If you find your mower does not start, try changing the fuel in the tank with newly purchased fresh unleaded fuel. Do not use ethanol based fuels. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. 49291 • 08/2015 • 49291... -
Page 12: Operation Safety Instructions
Operation Safety Instructions WARNING: Stop the engine and unplug the spark plug before any repairs or maintenance operations. • Check that all nuts, bolts and screws are well tightened before every use. • B efore mowing ensure that the blade and the blade fixing screw are securely fastened. When the blade edges require re-sharpening, this must be done evenly on both sides to prevent any imbalance. If the blades are damaged, it must be replaced. -
Page 13: Intended Use Of The 190Cc Petrol Lawn Mower
4. Self Propelled - Using the variable speed self propelled function for AFTER SALES SUPPORT effortless mowing which can be used with any of the mowing functions 1800 909 909 e-mail: help@powertoolsupport.com listed above. (toll free) MODEL: №. 49291 • 08/2015 • 49291... -
Page 14: Parts List
24. Oil filler cap/dipstick 25. Fuel tank 26. Fuel tank cap 27. Spark plug cover / Spark Plug (located under cover) 28. Air filter AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. 49291 • 08/2015 • 49291 (toll free) - Page 15 190cc 4 Stroke Petrol Lawn Mower Operating instructions and safety notes! AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. 49291 • 08/2015 • 49291...
-
Page 16: Assembly
(Fig C) AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. 49291 • 08/2015 • 49291 (toll free) -
Page 17: Attaching The Upper Handles
2. Secure the self propel variable speed cable (4) to the lower handle (9) using one of the supplied cable holder clips (13) (qty 2). (Fig G) AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. 49291 • 08/2015 • 49291... -
Page 18: Assembly Of The 60L Hard Catcher
TIP: Do not leave grass clippings in the catcher for extended periods of time. AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. 49291 • 08/2015 • 49291 (toll free) -
Page 19: Assembly Of The Side Discharge Chute
3. To remove the side discharge chute (22), raise the side ejector cover (21), and remove the side discharge chute (22). Lower the side ejector cover (21). Slide tabs under bars Raise ejector cover AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. 49291 • 08/2015 • 49291... -
Page 20: Adding And Checking The Oil
3. FOR A NEW LAWN MOWER, add 600ml of SAE 10W/30 engine or oil from the oil chart below for specific conditions. (Fig R) AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. 49291 • 08/2015 • 49291 (toll free) -
Page 21: Fuelling
3. Start the engine at least 3 metres away from the area where the fuel tank has been filled in order to avoid the risk of fire. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. 49291 • 08/2015 • 49291... -
Page 22: Adjusting The Cutting Height
(Fig V) 3. After adjustment, ensure the lever is fully located in the selected notch. AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. 49291 • 08/2015 • 49291 (toll free) -
Page 23: Starting The Engine
(approximately 20-30 seconds) position when move the throttle control (5) to starting a cold the “RUN” position to increase engine. the engine speed. (Fig Y) AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. 49291 • 08/2015 • 49291... -
Page 24: Stopping The Engine / Mowing Advice
Keep a firm grip on the handle bar at all times, always walk, never run with the lawn mower. AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. 49291 • 08/2015 • 49291 (toll free) -
Page 25: Engine Tipping/ Poor Engine Performance
Check the spark plug. If the mower continues to underperform, take the mower to your nearest an authorised Service Agent. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. 49291 • 08/2015 • 49291... -
Page 26: Operating Functions Of The Lawn Mower
(2) against the upper handle bar (1). (Fig AC). NOTE: the lawn mower will immediately start moving forward. AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. 49291 • 08/2015 • 49291 (toll free) -
Page 27: Self Propelled Variable Speed Control
SELF PROPELL when in this position cannot be engaged VARIABLE SPEED in this area. i.e the control cannot be moved in this area. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. 49291 • 08/2015 • 49291... -
Page 28: Maintenance / Replacing The Blades
(37). Be careful not to lose these. 4. Repeat the process to remove the other 3 blades. 5. Clean the dirt and grass from around the blade mounting area. AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. 49291 • 08/2015 • 49291 (toll free) -
Page 29: Removing Oil
(36) (Fig AL) Remove the oil drain plug using a 3/8” square adaptor. (Fig AM) WARNING: Oil may be hot. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. 49291 • 08/2015 • 49291... -
Page 30: Air Cleaner Maintenance
AO . filter (28). 6. Close the air filter cover (29) and secure the fastener. NOTE: Refer to engine manual for further information. AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. 49291 • 08/2015 • 49291 (toll free) -
Page 31: Spark Plug
(34) to compress the washer. NOTE. When installing a new spark plug, tighten 1/2 turn after the spark plug seats to compress the washer. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. 49291 • 08/2015 • 49291... -
Page 32: Deck Wash
NOTE: For general cleaning and maintenance of the mower, including the housing, catcher, handles, levers and knobs, these can be cleaned using a rag or damp cloth. Do not use chemicals or solvents. AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. 49291 • 08/2015 • 49291 (toll free) -
Page 33: Storage And Transporting
• Protect all metal engine parts from corrosion by coating them with oil. • C ompletely change the engine oil. • C oat areas that may rust with a light film of oil. Cover the engine and store it on a level surface in a dry, dust free area. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. 49291 • 08/2015 • 49291... -
Page 34: What Your 3 Year Warranty Means
After Sales Support TEL: 1800 909 909 AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. 49291 • 08/2015 • 49291 (toll free) -
Page 35: Service Support / Accessories
• Replacement 4 x swing blades (49291-BL) If you have any queries regarding these accessories, please call us on our Customer Support Line - 1800 909 909. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. 49291 • 08/2015 • 49291... -
Page 36: Troubleshooting
Briggs and Stratton via www.briggsandstratton.com or calling Customer Service on (03) 9796 4900. For all other issues, please contact Customer Service on 1800 909 909 or email help@powertoolsupport.com AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. 49291 • 08/2015 • 49291 (toll free) -
Page 37: Recycling / Specifications
Champion RJ19MLC Equivalent Replacement Spark Plugs: Champion RJ19LM Catcher Capacity: 60 Litres Weight (GW): 43.5 kg Noise label rating: 75dBA (taken at 7.5 metres) AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. 49291 • 08/2015 • 49291... - Page 38 190cc 4 Stroke Petrol Lawn Mower Understanding and using these operating instructions AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. 49291 • 08/2015 • 49291 (toll free)
- Page 39 190cc 4 Stroke Petrol Lawn Mower Operating instructions and safety notes! AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. 49291 • 08/2015 • 49291...
- Page 40 ALDI guarantees that our exclusive brand products are developed to our stringent quality specifications. If you are not entirely satisfied with this product, please return it to your nearest ALDI store, within 60 days from the date of purchase, for a full refund or replacement, or take advantage of our after sales support by calling the supplier’s Customer Service Hotline.
