Great care has gone into the manufacture of this product and it is
should therefore provide you with years of good service when used
properly. In the event of product failure within it's intended use over
the course of the first 3 years after date of purchase, we will remedy
the problem as quickly as possible once it has been brought to our
attention. In the unlikely event of such an occurrence, or if you require
any information about the product, please contact us via our helpline
support services, details of which are to be found both in this manual
and on the product itself.
GB
IE
Produced for:
Aldi Stores Ltd., PO Box 26,
Importer:
Atherstone, Warwickshire CV9 2SH.
SUMEC UK
UNIT A&B ESCRICK BUSINESS PARK
Aldi Stores (Ireland) Ltd.,
ESCRICK, YORK, YO19 6FD, UK
PO Box 726, Naas, Co. Kildare.
www.aldi.com
Email: support@coreservice.co.uk
3
AFTER SALES SUPPORT
724816
GB +44 (0)1904 727506
IE
+353 (0)124 75 150
support@coreservice.co.uk
YEAR
MODEL: XSZ46J
WARRANTY
PLU Code: 882
10/2022
User
Manual

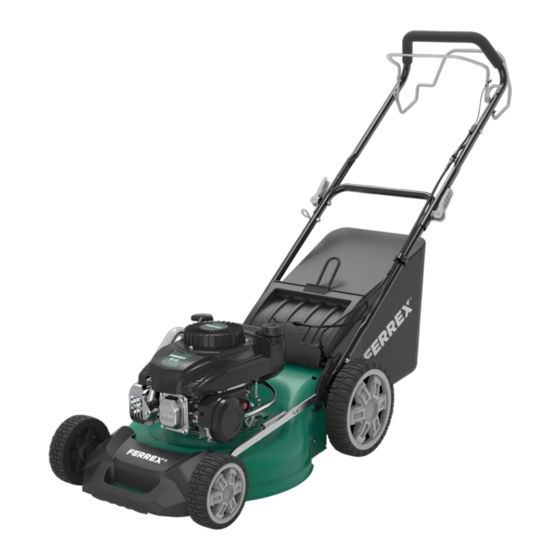

SELF PROPELLED
PETROL
LAWNMOWER
XSZ46J
Contents
Product images and parts list .................................................................3
Original Instruction
General information.................................................................................7
Reading and storing the instruction manual.......................................7
Explanation of symbols............................................................................7
Safety........................................................................................................10
Intended use.............................................................................................10
Safety notes...............................................................................................10
Assembly..................................................................................................14
Installation.................................................................................................14
Remove the packaging............................................................................14
Assemble the lower handle.....................................................................15
Assembling the hybrid collection box ..................................................15
Fix the cable...............................................................................................16
Getting started.........................................................................................16
Operation.................................................................................................19
Setting the Cutting Height ......................................................................19
Starting the Engine...................................................................................20
Mowing.......................................................................................................22
Maintenance............................................................................................25
Troubleshooting......................................................................................31
Storage.....................................................................................................32
Disposal....................................................................................................34
Technical data..........................................................................................35
EC Declaration of Conformity
Warranty
Warranty Card
Warranty Conditions
V 2022.10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ALDI FERREX XSZ46J
Summary of Contents for ALDI FERREX XSZ46J
-
Page 1: Table Of Contents
Fix the cable....................16 Getting started..................16 XSZ46J Operation....................19 Setting the Cutting Height ..............19 Produced for: Starting the Engine...................20 Aldi Stores Ltd., PO Box 26, Mowing.......................22 Importer: Atherstone, Warwickshire CV9 2SH. Maintenance....................25 SUMEC UK Troubleshooting..................31 UNIT A&B ESCRICK BUSINESS PARK Aldi Stores (Ireland) Ltd.,... - Page 2 Product images and parts list Product images and parts list...
-
Page 3: Product Images And Parts List
Product images and parts list Product images and parts list Main mower deck (with upper handle) PULL STARTING PROPULSION-LEVER PRESS DOWN STOP/START-LEVER Hybrid collection box THE PRIMER CLOSED -KNOB CLOSED Cable clip Lower handle Knobs with nut and bolts, x2 Quick release assy, x2 Rope guide (attached to the lower handle) Socket spanner for spark plug... -
Page 4: General Information
46CM Petrol Lawnmower 46CM Petrol Lawnmower General information General information Reading and storing the instruction manual Sound level data (96 dB) in accordance with Directive 2000/14/EC This instruction manual accompanies this lawnmower. It contains important information on start-up and handling. Before using the lawnmower, read the Keep bystanders away. -
Page 5: Safety
46CM Petrol Lawnmower 46CM Petrol Lawnmower Safety General information Intended use The product complies with the applicable European directives and an evaluation method of conformity for The lawnmower is designed exclusively for cutting grass. 0197 these directives was done. The manufacturer cannot be held liable for damage caused by improper or incorrect usage. - Page 6 46CM Petrol Lawnmower 46CM Petrol Lawnmower Safety Safety have been given supervision or instruction concerning use − Check the grass bag frequently for wear or deterioration; of the appliance by a person responsible for their safety. − Replace worn or damaged parts for continued safety; −...
-
Page 7: Assembly
46CM Petrol Lawnmower 46CM Petrol Lawnmower Safety Assembly Assembly damage to machine and user. − Never use lawnmower when you are tired, ill or under influence of alcohol or other drugs. Installation − Stop the engine and disconnect the spark plug cable, making sure that all moving parts have come to a complete Always take care when removing the packaging to prevent stop:... -
Page 8: Assemble The Lower Handle
46CM Petrol Lawnmower 46CM Petrol Lawnmower Assembly Getting Started 2. Assemble the lower handle (Fig 2) NOTE! 2a Remove the packaging from the handle. Set the height Always fit the hybrid collection box before starting the engine. adjustment to the highest position, and align the pin on the handle with the hole in the bracket. - Page 9 46CM Petrol Lawnmower 46CM Petrol Lawnmower Getting Started Getting Started of your engine it is important that the oil is changed after the first Fuel and lubrication 24 hours of use. NOTE! NOTE! To prevent engine damage the engine is shipped without oil or Always use clean, fresh unleaded petrol.
-
Page 10: Operation
46CM Petrol Lawnmower 46CM Petrol Lawnmower Operation Operation smoke or allow flames or sparks in the area where the engine is backwards to adjust the cutting height. Move it to any one of refueled or where petrol is stored. Avoid repeated or prolonged the 7 positions (25~75mm) for the desired cutting height;... -
Page 11: Mowing
46CM Petrol Lawnmower 46CM Petrol Lawnmower Operation Operation Start/Stop Bar Activation (Fig 11a) NOTE! Install the spark plug carefully by hand, to avoid cross WARNING! threading. Never start the engine before adding the right amount of oil to After the plug is seated, tighten 1/8 to 1/4 turn with the spark the engine. - Page 12 46CM Petrol Lawnmower 46CM Petrol Lawnmower Operation Operation with one hand and remove the hybrid collection box using its The best result will be achieved if the grass is dry. Wet grass will handle with your other hand. tend to clog the blade and the grass collection system. Grass grows at different rates at different times of the year.
-
Page 13: Maintenance
46CM Petrol Lawnmower 46CM Petrol Lawnmower Maintenance Maintenance adhered to. This will ensure the lawnmower operates correctly NOTE! and is safe to use. Never turn the mower upside down. after every 12 hours of 24 hours of 36 hours of Air filter clean clean... - Page 14 46CM Petrol Lawnmower 46CM Petrol Lawnmower Maintenance Maintenance Air Filter Stop the engine, wait one minute and check the oil level. Top up if necessary. NOTE! NOTE! Never run the engine without the air filter element installed. For more information see the Engine Manual. The air cleaner system uses a foam filter.
- Page 15 46CM Petrol Lawnmower 46CM Petrol Lawnmower Maintenance Maintenance 3. Inspect the blade adaptor on any signs of damage. NOTE! 4. Fit a new blade, locate the blade on the two studs on the Always handle the blade with care- sharp edges could cause blade flange and then replace the washer and bolts.
-
Page 16: Troubleshooting
46CM Petrol Lawnmower 46CM Petrol Lawnmower Troubleshooting Storage Troubleshooting STORAGE Fault Possible cause Troubleshooting Storing the Lawnmower for Short Periods Screws are loose Check screws The lawnmower can be stored for short periods of time (less Blade fasteners are Check blade Heavy vibration than 15 days) without performing any storage maintenance. -
Page 17: Disposal
46CM Petrol Lawnmower 46CM Petrol Lawnmower Storage Disposal Disposal NOTE! Disposing of the packaging Do not empty the petrol tank in enclosed areas, near fire or when Disposal informatio n Dispose of the packaging separated into single smoking. Petrol fumes can cause explosions and fire. type materials. -
Page 18: Technical Data
46CM Petrol Lawnmower 46CM Petrol Lawnmower Guarantee Declaration Technical data SUMEC Technical data 4 Stroke. Single cylinder Engine type 132cc Engine displacement Declaration of CE Conformity 2.1kW Engine max. power 2900min Engine speed SUMEC UK Co.,Ltd. 46cm Cutting width Unit A&B, Escrick Business Park Escrick, York YO 19 6FD Collection box capacity 0.9L... - Page 19 WARRANTY CARD Warranty conditi ions 46cm SP PETROL LAWNMOWER XSZ46J Dear Customer, ALDI warranty offe ers you extensive benefits: Warranty period: 3 years from date of purchase. 6 months for wear parts and consu ables under Please contact our AFTER SALES SUPPORT by phone or e-mail before sending in the device.
