3-11-3. Port-based Group

Function name:

Port-based Group Configuration

Function description:
It shows the information of the existed Port-based VLAN Groups. You can
easily create, edit and delete a Port-based VLAN group by pressing <Add>,
<Edit> and <Delete> function buttons. User can add a new VLAN group by
inputting a new VLAN name.
Parameter description:
VLAN Name:
The name defined by administrator is associated with a VLAN group.
Valid letters are A-Z, a-z, 0-9, "
length is 15 characters.
Member:
This is used to enable or disable if a port is a member of the new added
VLAN, "Enable" means it is a member of the VLAN. Just tick the check
)
box ( beside the port x to enable it.
Add Group:
Create a new Port-based VLAN. Input the VLAN name and choose the
member by ticking the check box beside the port No., then, press the
<Apply> button to have the setting taken effect.
GS-2108C User Manual
-
" and "_" characters. The maximal

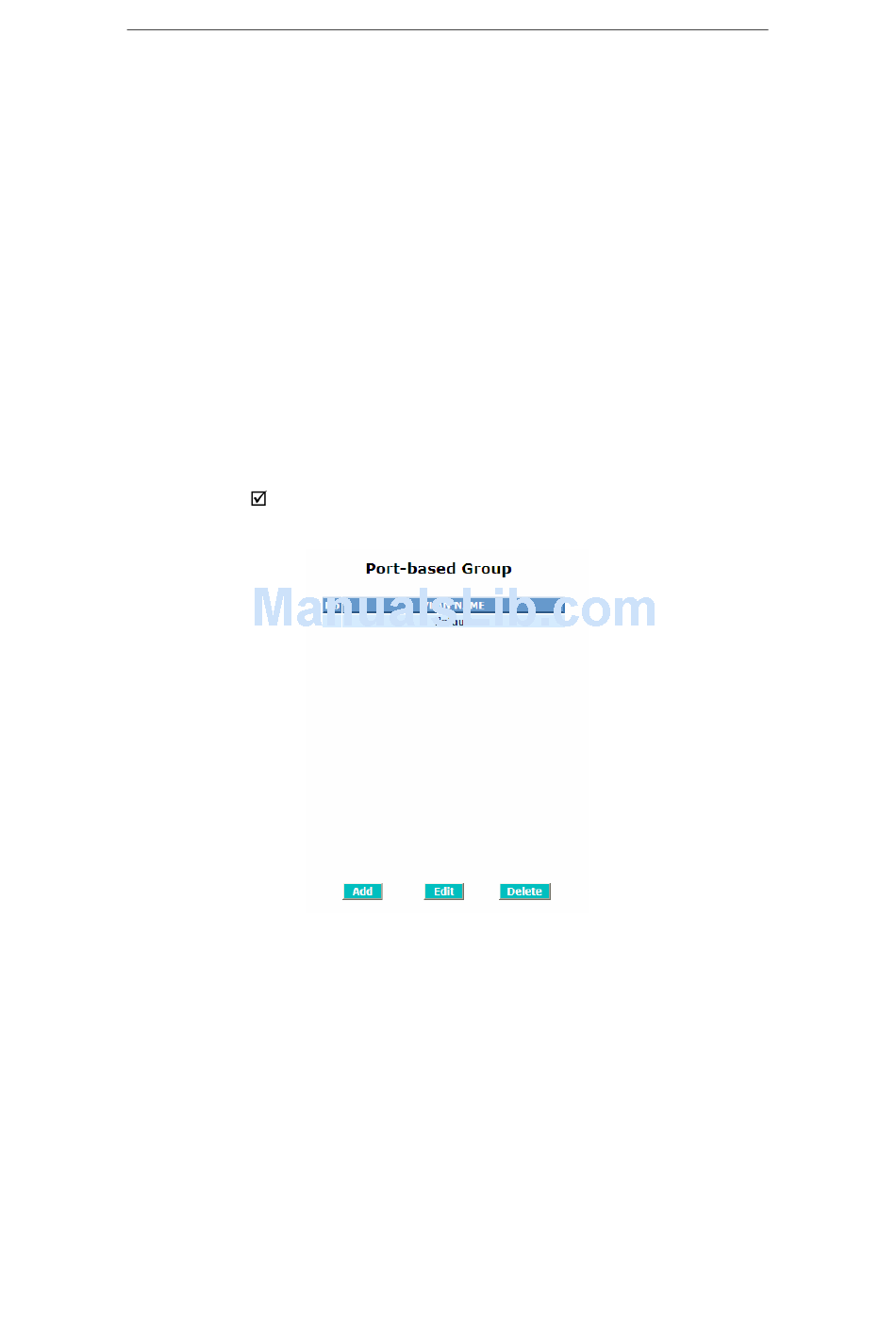

Fig. 3-36
