Parameter description:

Quality of Service (QoS) ToS Configuration:

Used for setting up the QoS in Layer 3.
Port:
User can set up the port (1~8) respectively to let TOS QoS function work
on them. If you would like to set up all ports at a time, user is also
allowed to choose "All" in the selection list to simplify the procedure of
configuration.
Bit 0, Bit 1, Bit 2:
According to the arrangement of Bit 5 ~ Bit 7 in TOS Field of IP Header,
it can form 8 kinds of traffics, including 0 0 0, 0 0 1, 0 1 0, 0 1 1, 1 0 0,
1 0 1, 1 1 0 and 1 1 1.
Class:
8 kinds of traffic as mentioned above, user can set up High Priority or
Low Priority for each port respectively.
Publication date: April, 2008
Revision A4

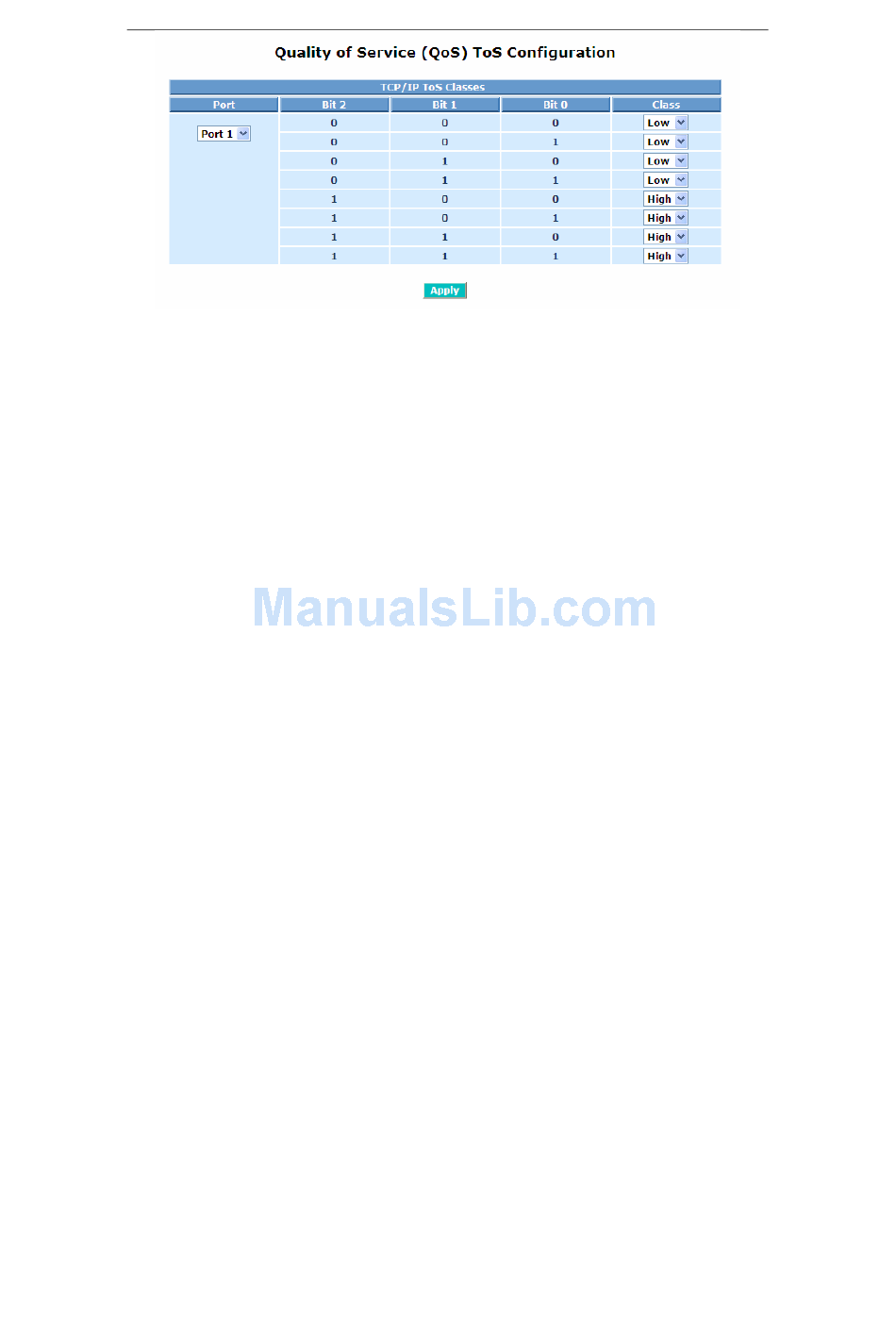

Fig. 3-20
