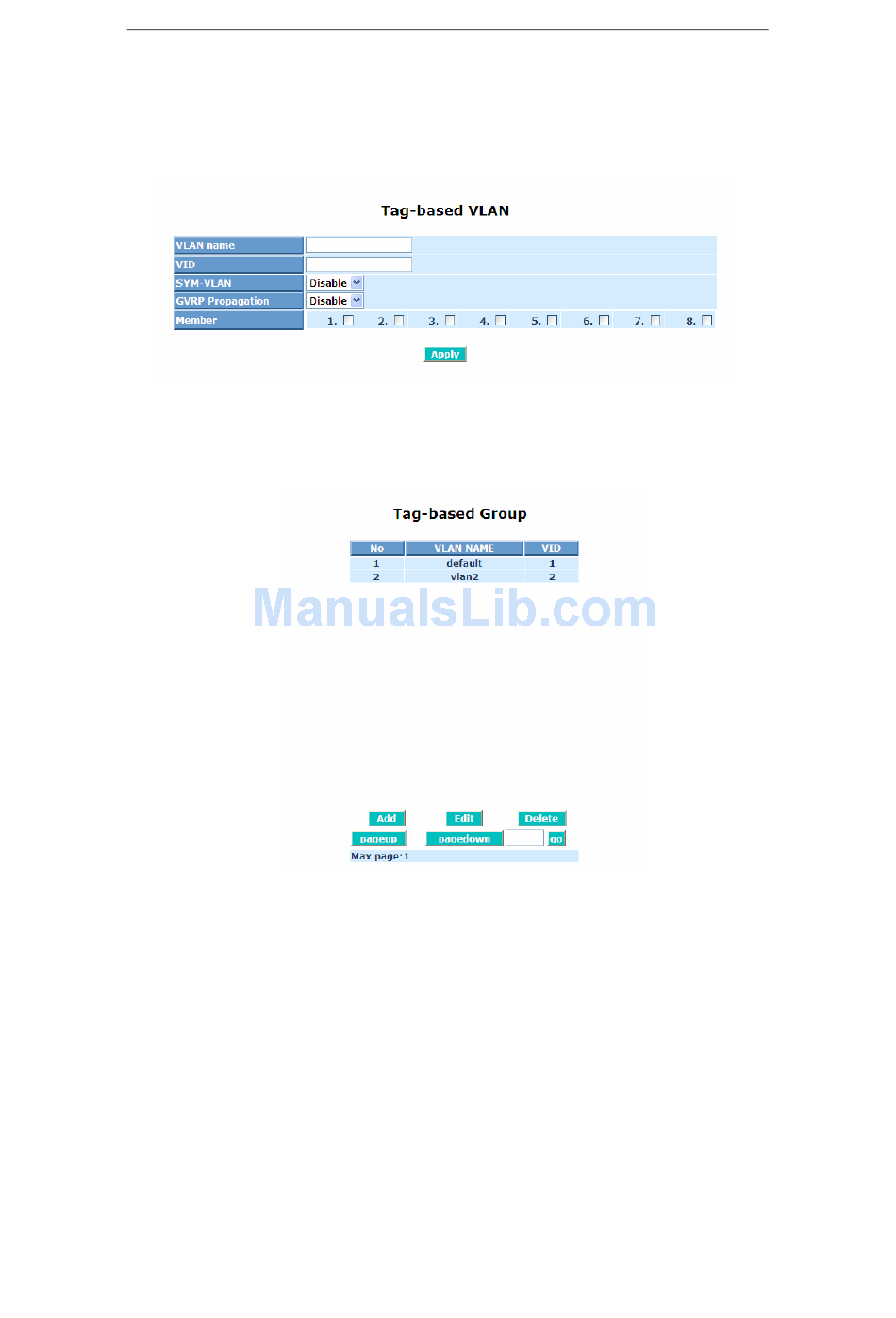

Add Group:

Create a new Tag-based VLAN. Input the VLAN name as well as VID,
configure the SYM-VLAN function and choose the member by ticking the
check box beside the port No., then, press the <Apply> button to have
the setting taken effect.

Delete Group:

Just press the <Delete> button to remove the selected group entry from
the Tag-based group table.
Edit a group:
Just select a group entry and press the <Edit> button, then you can
modify a group's description, SYM-VLAN and member set.
Publication date: April, 2008
Revision A4
Fig. 3-34
Fig. 3-35
