1-5. View of the Optional Modules

In the switch, Port 7~8 includes two types of media --- TP and SFP Fiber (LC,
BiDi LC...); this port supports 10/100/1000Mbps TP or 1000Mbps SFP Fiber with
auto-detected function. 1000Mbps SFP Fiber transceiver is used for high-speed
connection expansion; the following are optional SFP types provided for the switch:
⎯
1000Mbps LC, MM, SFP Fiber transceiver (SFP.0LC.202)
⎯
1000Mbps LC, SM 10km, SFP Fiber transceiver (SFP.0LC.212.10)
⎯
1000Mbps LC, SM 30km, SFP Fiber transceiver (SFP.0LC.212.30)
⎯
1000Mbps LC, SM 50km, SFP Fiber transceiver (SFP.0LC.212.50)
⎯
1000Mbps BiDi LC, type 1, SM 20km, SFP Fiber WDM transceiver
(SFP.0BL.621.201)
⎯
1000Mbps BiDi LC, type 2, SM 20km, SFP Fiber WDM transceiver
(SFP.0BL.621.202)
⎯
1000Mbps LC, SM 10km, SFP Fiber transceiver with DDM
(SFP.DLC.212.10)

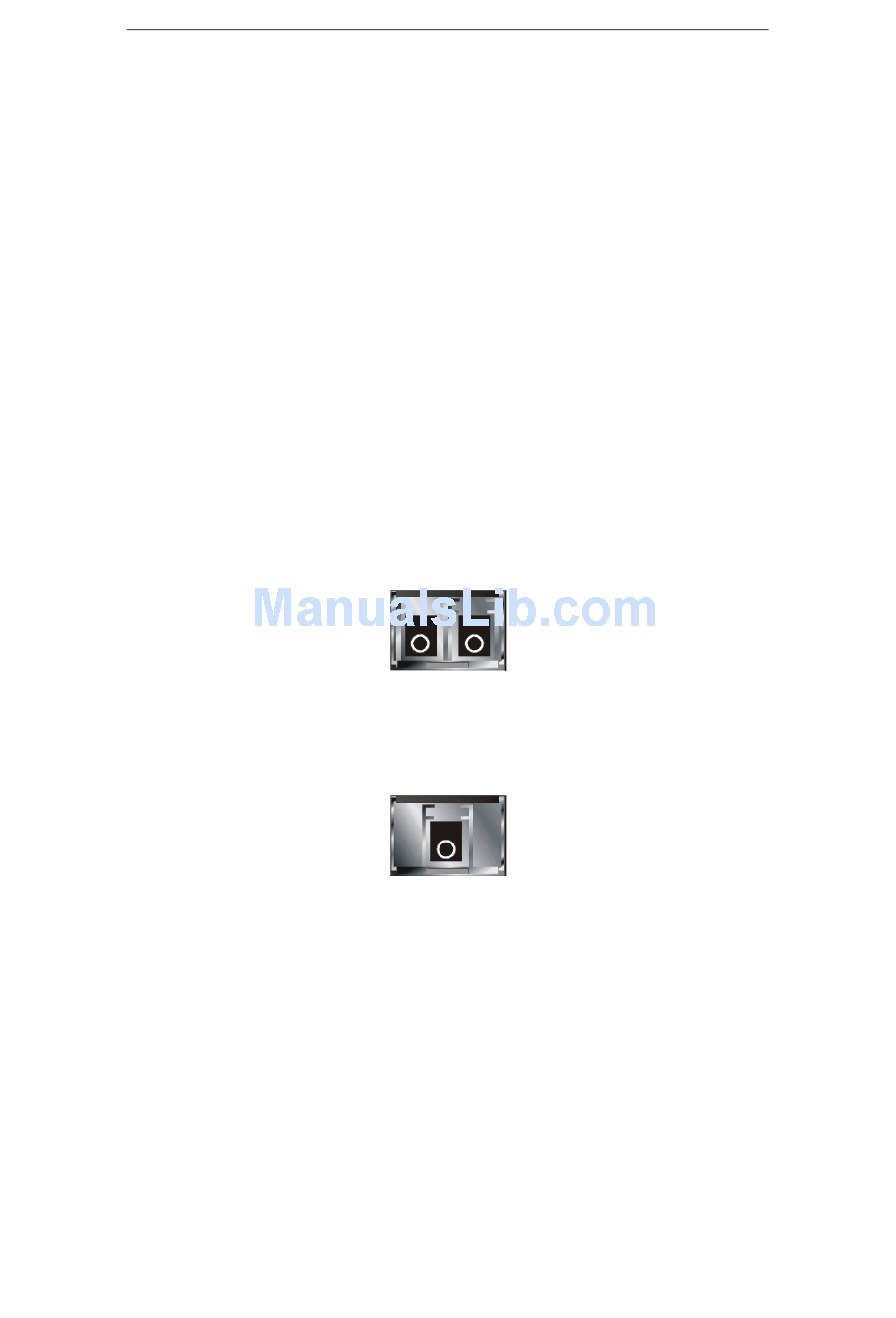

Fig. 1-4 Front View of 1000Base-SX/LX LC, SFP Fiber Transceiver
Fig. 1-5 Front View of 1000Base-LX BiDi LC, SFP Fiber Transceiver
