Summary of Contents for Ruby Tech 24-Port 100BaseTX + 2-P

  • Page 1 Gigabit Smart Switch...
  • Page 2 Gigabit Smart Switch Table of Contents Introduction Getting to Know the Switch LEDs The Gigabit Ports The Fiber Ports The Back Panel Installing the Switch Pre-Installation Considerations Desktop Installation Rack Mounting Powering on the Switch Uplinking the Switch Configuring the Switch through Console Interface Overview Configuring the Hyper Terminal Setup Program Getting Started...
  • Page 3 Gigabit Smart Switch Port Configuration Trunk Configuration VLAN Configuration Port Monitoring Configuration QoS Configuration Bandwidth Control Misc Operation Log out Specifications Cable Specifications Technical Specifications Environmental Information Standard Conformance Appendix: Warranty Information...
  • Page 4 Gigabit Smart Switch The information in this guide may change without notice. The manufacturer assumes no responsibility for any errors, which may appear in this guide. Ethernet is a trademark of XEROX Corporation. Microsoft, Windows and Windows logo are trademarks of Microsoft Corporation. Copyright 2005.
  • Page 5 Gigabit Smart Switch Introduction 24-Port 10/100BaseTX + 2-P Gigabit Smart Switch Manage the networking depending on your need of connectivity speed with the Smart Switch! 24-Port 10/100BaseTX + 2-P Gigabit Smart Switch provides 24 100BaseTX ports, in addition, it is designed with 2 Gigabit and Fiber ports, which enables you to speed up your connectivity very easily.

  • Page 6: Getting To Know The Switch

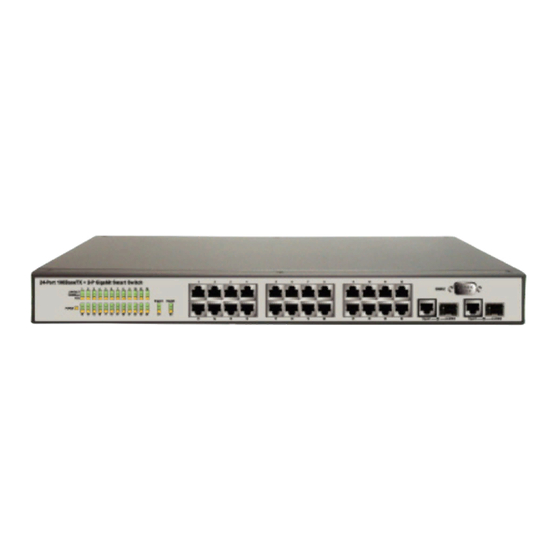

    Gigabit Smart Switch Getting to Know the Switch Front View 10/100Mbps LEDs 24 10/100Mbps Port Console Port 1000Mbps LEDs Gigabit Port Fiber Port LEDs LEDs Color Function POWER Green Lights to indicate the power is being supplied to Switch LINK/ACT Green Lights to indicate a functional network link through the corresponding port (1 through 24) with an attached device.
  • Page 7 Gigabit Smart Switch The Fiber Port The switch is equipped with two fiber ports. They are provided to link to fiber to expand the switch application in various environment. The fiber ports are designed for other peripheral devices that require very high bandwidth. Using fiber cable to connect devices, it supports full-duplex data transfer rates of 1000Mbps.

  • Page 8: Installing The Switch

    Gigabit Smart Switch Installing the Switch This part describes how to install the Switch and make connections to it. Please read the following instructions step by step. Besides, the Switch does not need software installation. Install the Switch either on a desktop or a rack. Pre-Installation Considerations Before installing the Switch, make sure that the RS232 cable complies with cable specification.

  • Page 9: Rack Mounting

    Gigabit Smart Switch Note: Connection to the Switch requires UTP CAT5 network cable with RJ-45 tips. For more information, please see the cable specifications. Rack Mounting To rack-mount the Switch in any standard 19-inch rack, follow the instructions described below. Step 1 Place the Switch on a hard flat surface with the front panel faced towards your front side...

  • Page 10: Powering On The Switch

    Gigabit Smart Switch Figure 3 Mounting the Switch in A Rack Step 6 Connect the Switch to network devices. A. Connect one end of a standard network cable to the 24 RJ-45 ports B. Connect the other end of the cable to the network devices such as printer servers, workstations or routers, and so on.
  • Page 11 Gigabit Smart Switch Configuring the Switch through Console Interface Overview 24-Port 10/100BaseTX + 2-P Gigabit Smart Switch features a menu-driven console interface for switch configuration. The switch can be configured through the console port. Therefore, you can easily manage your networking from the screen. Configuring the Hyper Terminal Setup Program To configure the Hyper Terminal, which is windows utility program for serial communications given on Windows 9X/Me/2000 or NT, please follow the...
  • Page 12 Gigabit Smart Switch Step 3. Select a proper COM port to communicate with the switch.
  • Page 13 Gigabit Smart Switch Step 4. Set the serial port properties then press OK. Settings here are: Bits per second: 19200 Data bits: 8 Parity: None Stop bits: 1 Flow control: None...

  • Page 14: Getting Started

    Gigabit Smart Switch Getting Started Log-in As you finish Hyper Terminal Setup steps, the log-in screen will appear. You will be asked to enter the Username and Password. The default Username is “admin” and Password is blank, and then press Enter to continue.

  • Page 15: Switch Main Menu

    Gigabit Smart Switch Switch Main Menu After you log in the Switch, the main menu will appear. The Switch Main Menu displays 9 subjects of configuration. Each subjects leads you to the screen for that management setting. Use arrow, TAB or back key to move and highlight the subject you would configure.

  • Page 16: Port Status

    Gigabit Smart Switch Port Status The Port Status screen displays the status for each port. Select <Quit> to return to the previous panel, and <Refresh > to refresh status.

  • Page 17: Port Configuration

    Gigabit Smart Switch Port Configuration The Port Configuration screen enables you to configure the ports including administrative status, auto negotiation, speed and duplex mode, and flow control. Select <Quit> to return to the previous panel, <Edit > to enter to edit, and <Save> to save the settings.

  • Page 18: Trunk Configuration

    Gigabit Smart Switch Trunk Configuration Trunking combines ports into an aggregate link. The bandwidth of a network connection will increase with Trunking mode. 7 Trunking groups can be set. Toggle to enable or disable the trunking function of each group. Then, assign ports to each trunk by toggling your selection.

  • Page 19: Vlan Configuration

    Gigabit Smart Switch VLAN Configuration VLAN Configuration lets you to select “VLAN Configuration”, “Advanced 802.1Q VLAN Setting”, and Return to Main Menu. Enter into “VLAN Configuration” to select VLAN Mode. Select <Edit>, and toggle VLAN mode to select “PortBased” or “802.1Q” mode. Select <Quit>...
  • Page 20 Gigabit Smart Switch Enter to make sure the change of mode. Press “Y” or ”N” to continue. PortBased VLAN Group To add a PortBased VLAN Group, select <Add>, and enter into the VLAN group adding screen. First, type in a number from 1 to 255 for the group ID. Then, assign the group member ports.
  • Page 21 Gigabit Smart Switch 802.1Q VLAN Group To add a 802.1Q VLAN Group, select <Add>, and enter into the VLAN adding screen, First, type in the number form 1 to 255 for the group ID. Then, select the ports as Tagged or Untagged for group member. Select <Quit>...

  • Page 22: Port Monitoring Configuration

    Gigabit Smart Switch Port Monitoring Configuration Port Monitoring Configuration lets you to set the ports you would monitor. Select <Edit> to toggle port monitoring mode including “RX”, ”TX”, and ”RX & TX”. Enter to set mode. After selecting port monitoring mode, select <Edit> to edit the mode, monitoring port, and the ports that would be monitored.
  • Page 23 Gigabit Smart Switch Select <Quit> to return to the previous panel, <Edit > to enter to edit, and <Save> to save the settings. Operation completed successfully will appear.

  • Page 24: Qos Configuration

    Gigabit Smart Switch QoS Configuration QoS configuration enables you to set the priority of sending packets for each port. Select <Edit> to set QoS mode including Disabled QoS Priority, High Empty Than Low, High:Low=3:1, High:Low=5:1, and High:Low=7:1. Static Port Ingress Priority : Set the static port ingress priority Off, Low, or High.

  • Page 25: Bandwidth Control

    Gigabit Smart Switch Bandwidth Control Bandwidth control enables you to set the rate of incoming and outgoing packets. Select <Quit> to return to the previous panel, <Edit > to enter to edit, and <Save> to save the settings.

  • Page 26: Misc Operation

    Gigabit Smart Switch Misc Operation Misc operation enables you to view and set the Misc operation. Entering into each item to view and set the configuration. 1. Advanced Switch Configuration Broadcast Storm Filter—Select 5%, 20% or Off for the value. Collision Retry Forever—Select Enable or Disable.
  • Page 27 Gigabit Smart Switch 2. Password Setting Toggle to set the password. 3. Restore System Default Setting Press Y to restore to default or N to reject. 4. Reboot system Press Y to reboot or N to reject.
  • Page 28 Gigabit Smart Switch 5. System Information You are allowed to view system information in this screen. 6. IP Configuration You are allowed to set the IP address, subnet mask, and default gateway in this screen. 0. Return to Main Menu Logout Highlight Logout, then the screen will automatically logout.

  • Page 29: Web Interface

    Gigabit Smart Switch Configuring the Switch through Web Log-in To access to the web configuration screen, open the browser, and enter the default switch IP: 192.168.1.254. Then, the login screen will appear. The default Username is “admin”, and leave the Password blank. Web Interface Welcome Page You successfully login the web screen as seeing the welcome page.
  • Page 30 Gigabit Smart Switch Port Status The Port Status screen displays the status for each port.
  • Page 31 Gigabit Smart Switch Port Configuration The Port Configuration screen enables you to configure the ports including administrative status, auto negotiation, speed and duplex mode, and flow control.
  • Page 32 Gigabit Smart Switch Trunk Configuration Trunking combines ports into an aggregate link. The bandwidth of a network connection will increase with Trunking mode. 7 Trunking groups can be set. Toggle to enable or disable the trunking function of each group. Then, assign ports to each trunk by toggling your selection.
  • Page 33 Gigabit Smart Switch VLAN Configuration To configure the VLAN function, select PortBased or 802.1Q, and click on Apply, PortBased To add a Portbased VLAN group, name the group ID within number 1-255. And select the members for this group. Click Apply to confirm. 802.1Q To add a 802.1Q VLAN group, name the VLAN ID within number 1-255.
  • Page 34 Gigabit Smart Switch Port Monitoring Configuration Port Monitoring Configuration lets you to set the ports you would monitor. Select <Edit> to toggle port monitoring mode including “RX”, ”TX”, and ”RX & TX”. Enter to set mode.
  • Page 35 Gigabit Smart Switch QoS Configuration QoS configuration enables you to set the priority of sending packets for each port. Select <Edit> to set QoS mode including Disabled QoS Priority, High Empty Than Low, High:Low=3:1, High:Low=5:1, and High:Low=7:1. Static Port Ingress Priority : Set the static port ingress priority Off, Low, or High.
  • Page 36 Gigabit Smart Switch Bandwidth Control Bandwidth control enables you to set the rate of incoming and outgoing packets.
  • Page 37 Gigabit Smart Switch Misc Operation Advanced Switch Configuration Broadcast Storm Filter—Select 5%, 20% or Off for the value. Collision Retry Forever—Select Enable or Disable. MAC Table Auto-Aging—Select 150 sec, 300 sec, or 600 sec. MAC Table Hashing—Select CRC Hash, or Direct Map. Console Auto Logout Time—Select Never, 5 min, 10 min, 20 min.
  • Page 38 Gigabit Smart Switch Restore System Default Setting Click OK to reset, Cancel to reject. Reboot System Click OK to confirm, Cancel to reject. System Information You can view the system information in this screen.
  • Page 39 Gigabit Smart Switch IP Configuration You are allowed to set the IP address, subnet mask, and default gateway in this screen. Logout As you click Logout, the screen will appear. Click Back to logout.

  • Page 40: Cable Specifications

    Gigabit Smart Switch Specifications Cable Specifications Straight-Through and Crossed-Over Cable Specifications Table lists the cables you can use and their specifications. Caution: Please do not use telephone cables. Telephone cables do not support Ethernet or Fast Ethernet. Straight-Through and Crossed-Over Cable Specifications Table Ethernet Type Cable Requirements Maximum Length...
  • Page 41 Gigabit Smart Switch To determine which wire is wire 1, hold the RJ-45 cable tip with the spring clip facing towards the ground and the end pointing away from you. The copper wires exposed upwards to your view. The first wire on the far left is wire 1. You can also refer to the illustrations and charts of the internal wiring on the following page.

  • Page 42: Technical Specifications

    Gigabit Smart Switch Technical Specifications IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, Standards IEEE802.1q CSMA/CD Protocol 24 100BaseTX ports Ports 2 optional Gigabit slots Connectors RJ-45 24 100Mbps ports: 10/100Mbps at half duplex, 20/200Mbps at full duplex Speed Gigabit slot: 10/100/1000Mbps at half duplex, 20/200/2000Mbps at full duplex LEDs Power, Speed, Link/Act, FDX/COL per port...
  • Page 43 Gigabit Smart Switch Appendix : Warranty Information We provide this limited warranty for its product only to the person or entity who originally purchased the product from us or its authorized reseller or distributor. We guarantee that equipment is free from physical defects in workmanship and material under normal use from the date of original retail purchase of the Hardware.
