1-4. View of GS-2108C

1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs)

There are 8 TP Gigabit Ethernet ports and 2 SFP fiber ports for optional
removable modules on the front panel of the switch. LED display area contains a
Power LED, which indicates the power status and 8 ports working status of the
switch.
TP Port Status: Link/ACT
Power Indication LED
Publication date: April, 2008
Revision A4

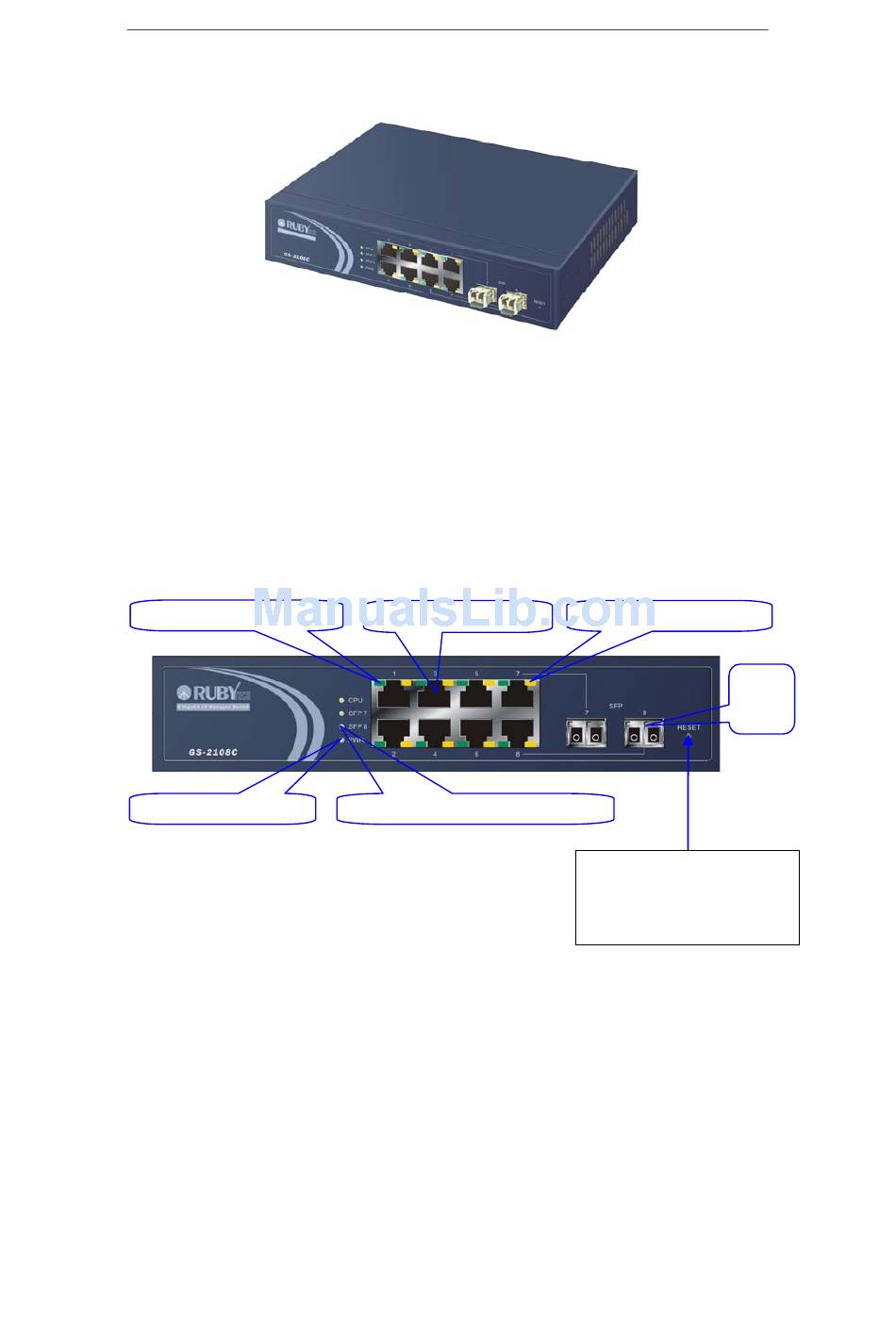

Fig. 1-1 Full View of GS-2108C
Gigabit Ethernet Port
Fiber Port Status Indication LEDs
Fig. 1-2 Front View of GS-2108C
6
TP Port Status: SPEED
SFP
Fiber
Port
RESET Button:
RESET button is used to
reset the management
system.
