Aggtr; Status - Ruby Tech GS-2108C User Manual

GS-2108C User Manual

Aggtr:

Aggtr is an abbreviation of "aggregator". Every port is also an aggregator,
and its own aggregator ID is the same as its own Port No. We can regard
an aggregator as a representative of a trunking group. Ports with same
Group ID and using same trunking method will have the opportunity to
aggregate to a particular aggregator port. This aggregator port is usually
the port with the smallest Port No. within the trunking group.

Status:

This field represents the trunking status of a port which uses a trunking
method other than "None". It also represents the management link status
of a port which uses the "None" trunking method. "---" means "not ready"
Publication date: April, 2008
Revision A4

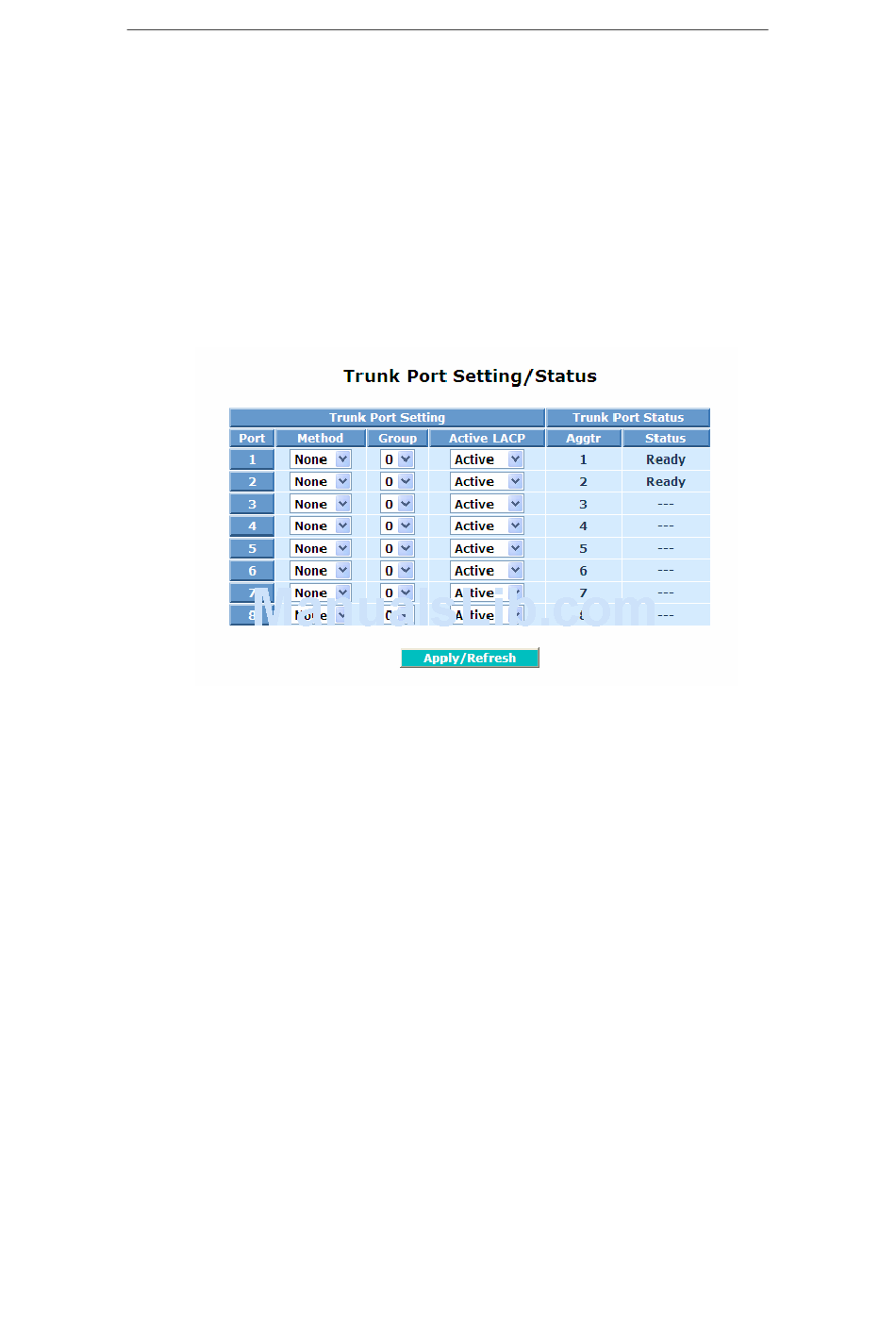

Fig.3-52
