Placement; Water Line; Custom Panels - Sub-Zero ICBBI-36R Installation Manual

INSTALLATION

Placement

CAUTION
Before moving the unit into position, secure door(s)
closed and protect any finished flooring.
Use an appliance dolly to move the unit near the opening.
If the unit has been on its back or side, it must stand upright
for a minimum of 24 hours before connecting power.
Plug the power cord into the grounded outlet and roll the
unit into position. Verify the anti-tip brackets are properly
engaged.
If used, side panels will need to be
IMPORTANT NOTE:
installed before the unit is placed in its final position. Refer
to page 8.

Water Line

Approximately .9 m of 1 / " plastic tubing is connected to
4
the unit with a preassembled 1 / " compression connection
4
under the unit. The water line fitting connection kit, provided
with the unit, contains a 1 / " compression union fitting for
4
connection to the household water line.
Purge the water line prior to final connection to the unit. This
will remove any debris that may be present in the tubing
from installing the new water line.
Place the sleeve and nut on the water line and fasten
to the connection at the end of the tubing. Do not over
tighten. Check all water line fittings for leaks. Verify the
drain pan can be installed and removed without water line
interference.
If a reverse osmosis system used, it is
IMPORTANT NOTE:
recommended that the water filtration system be bypassed
by removing the filter.
IMPORTANT NOTE: Water lines can not be exposed to
freezing temperatures.
PANEL INSTALLATION

Custom Panels

For overlay and flush inset applications, custom door and
grille panels must be installed. Panel size is critical for a
proper fit. To verify panel requirements and dimensions,
refer to the Sub-Zero design guide at subzero.com/specs.
Flush inset applications require a
IMPORTANT NOTE:
minimum 13 mm reveal on all sides.
Finish all sides of custom panels. They may be visible when
the door is open.
EXTERNAL DISPENSER
For external dispenser models, the dispenser glasswell will
need to be removed before custom panels can be installed.
The total panel thickness (including
IMPORTANT NOTE:
backer and spacer, if used) in the glasswell area can range
from 6 mm to a maximum 29 mm. If the panel is thicker, the
area must be routed to 29 mm maximum thickness.
To remove the glasswell, lift the water grille up and out.
Remove the control panel by removing the center plastic
mandrel supports. Tilt the control panel out and disconnect
the wire harness (blue side up) from the back side. Remove
the bezel by removing the four screws. Refer to the illustra-
tions below.
Once custom panels have been installed, reverse the proce-
dure to reinstall the glasswell.
ICE
WATER
LOCK
INDICATOR
LIGHT
WATER
GRILLE

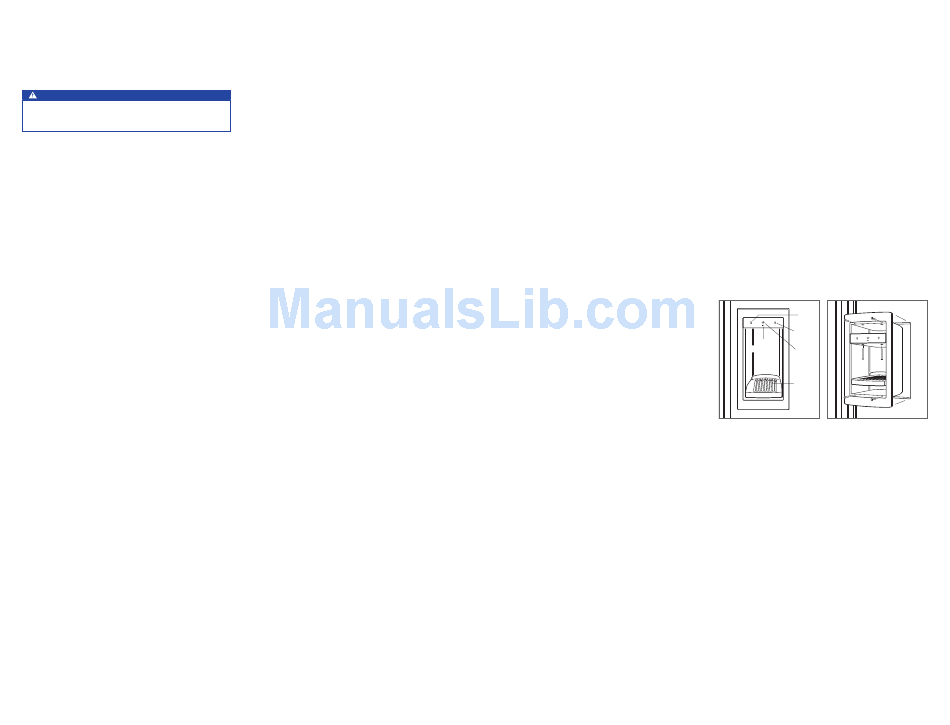

Dispenser glasswell. Glasswell removal.
subzero.com
|
7
