Biometric-EXP EVB
2. Loading the Demo Onto the Gecko Starter Kit
The following steps will load the demo firmware onto the Gecko STK. This process requires Simplicity Studio which
is available for download at www.silabs.com/simplicity-studio.
1. Use a USB mini type cable to connect the J-Link debug interface on the Gecko STK to the PC and set the
3-position Power Source Select switch to DBG (right-most position).
2. Launch Simplicity Studio.
3. Click on Refresh Detected Hardware.
4. Select the Gecko STK device, under Detected Hardware.
5. Click on the Demos button on the top right of Simplicity Studio.
2

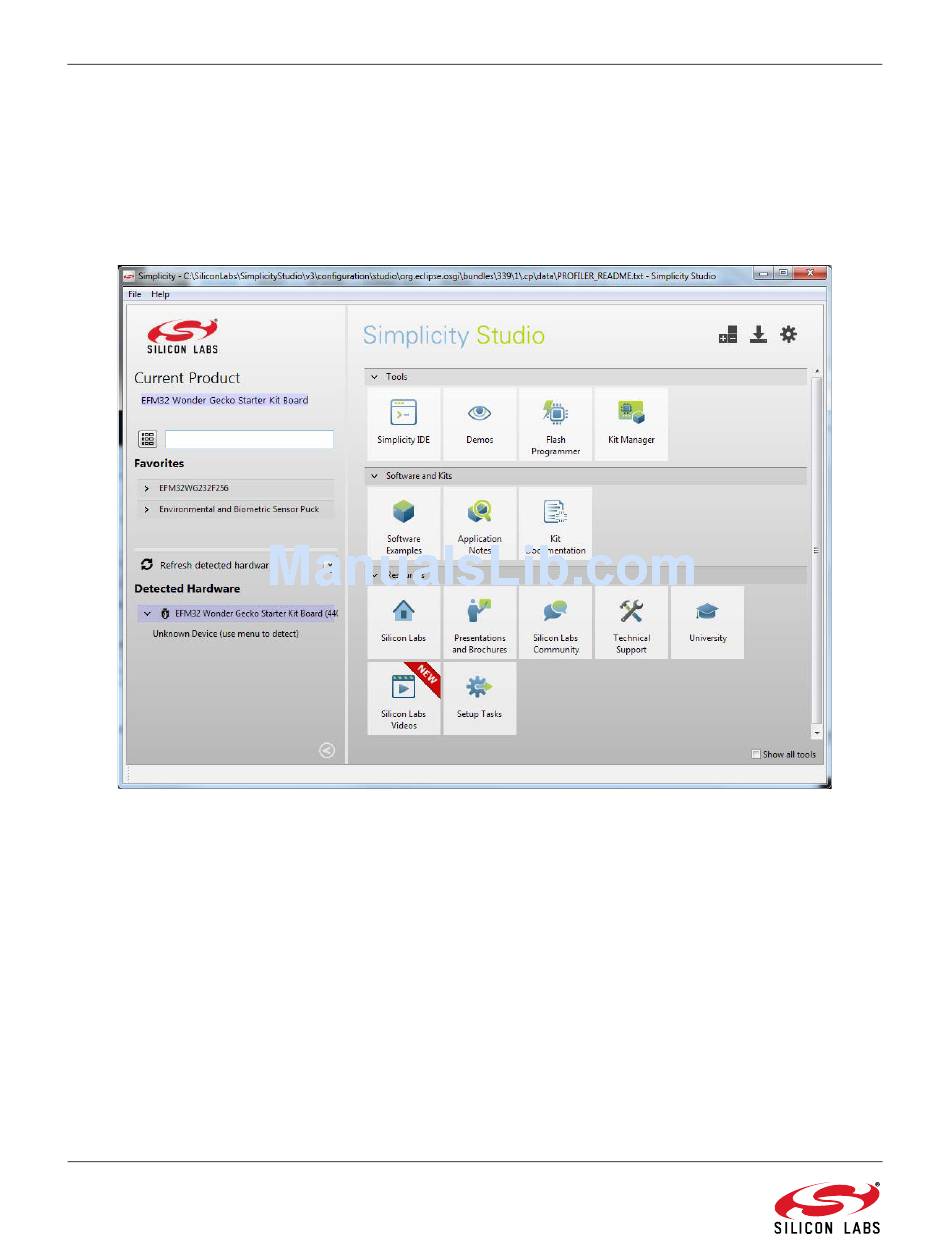

Figure 2. Simplicity Studio
