Silicon Laboratories Biometric EXP EVB UG User Manual

B EXP Evaluation Board U
I O ME T R I C
1. Introduction
The Silicon Laboratories' Biometric-EXP Evaluation Board is a hardware plugin card for EFM32™ Starter Kits
(STK's). The Biometric-EXP is intended to demonstrate and evaluate the biometric applications of Silicon
Laboratories Si7013 Humidity and Temperature Sensor and the Si1146 Proximity/UV/Ambient Light Sensor which
is capable of monitoring pulse rate and oxygen saturation (SpO2). A Biometric-EXP Software Demo is available to
download to an EFM32 Wonder Gecko STK through Simplicity Studio. The software is capable of displaying
humidity, temperature, UV, pulse rate, and SpO2 readings on the Wonder Gecko STK display. In addition to the
Silicon Labs sensors, it is also of note that the Biometric-EXP EVB contains a Silicon Laboratories' TS3310 Boost
DC-DC Converter.

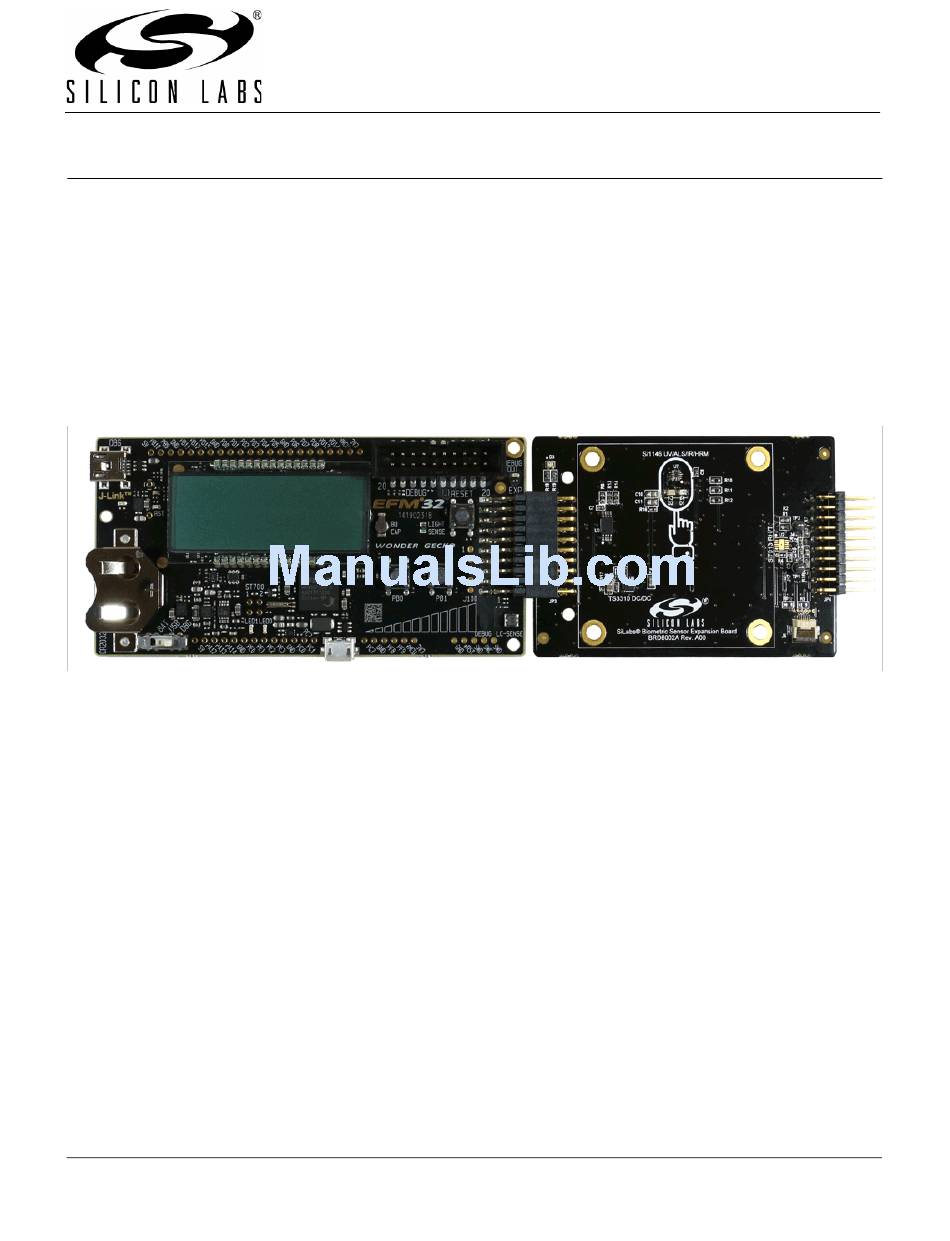

Figure 1. EFM32 Wonder Gecko STK (Left) Connected to a Biometric-EXP (Right)
1.1. Key Features
 Si7013 Humidity and Temperature Sensor
 Si1146 Proximity/UV/Ambient Light Sensor capable of monitoring Pulse Rate and SpO2
 6-pin ribbon cable connector for attaching a wrist-based heart rate monitor EVB (ordered separately as
HRM-GGG-PS)
 20-pin expansion header
 Battery operated with low power optimizations for long battery life
 Demonstration software source code available
 USB debug mode allowing HRM and SpO2 samples to be transferred to a PC
 Windows GUI to visualize pulse signals and to record samples from USB debug mode
 Easy use through Simplicity Studio
Rev. 0.1 8/14
Biometric EXP EVB UG
Copyright © 2014 by Silicon Laboratories
' G
SER S UIDE
Biometric EXP EVB UG
