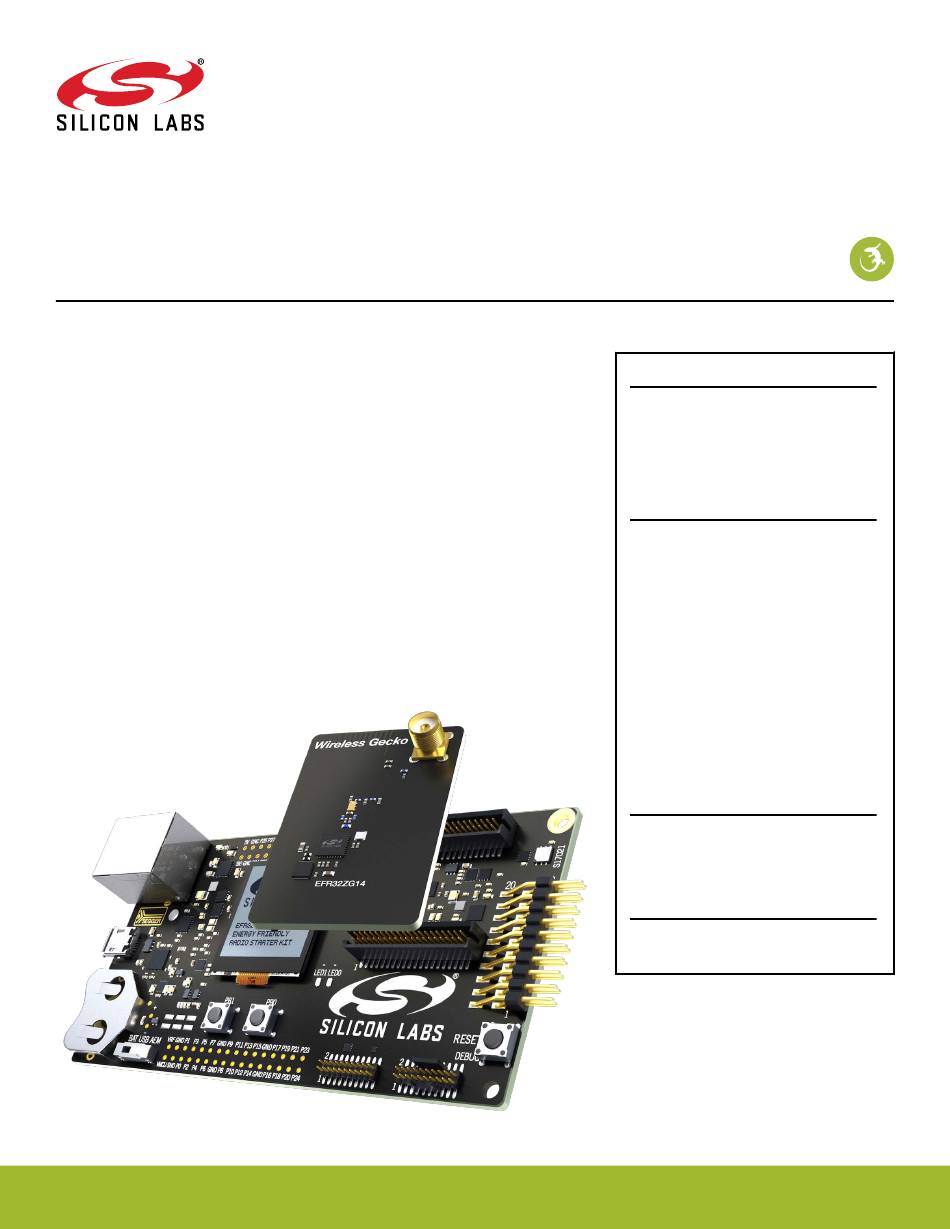

UG476: Z-Wave 700 - EFR32ZG14 Long
Range Wireless Starter Kit User's Guide
A Wireless Starter Kit with the BRD4206A Radio Board is an ex-
cellent starting point to get familiar with the EFR32 Wireless
Gecko Z-Wave® Wireless System-on-Chip. It also provides the
necessary tools for developing a Silicon Labs Z-Wave gateway ap-
plication.
BRD4206A is a plug-in board for the Wireless Starter Kit Mainboard, and it is a complete
reference design for the EFR32ZG14 Wireless SoC. The board features an SMA con-
nector for RF connection and an optional PCB antenna that can be selected by moving a
0 Ω resistor.
The Wireless Starter Kit Mainboard contains an on-board J-Link debugger with a Packet
Trace Interface and a virtual COM port, enabling application development and debugging
the attached radio board as well as external hardware. The mainboard also contains
sensors and peripherals for easy demonstration of some of the EFR32's many capabili-
ties.
This document describes how to use the BRD4206A Radio Board together with a Wire-
less Starter Kit Mainboard.
silabs.com | Building a more connected world.
BRD4206A RADIO BOARD FEATURES
• EFR32 Wireless Gecko Wireless SoC with
256 kB Flash, 32 kB RAM.
(EFR32ZG14P231F256GM32)
• SMA antenna connector (863-925 MHz)
• Optional PCB antenna
WIRELESS STK MAINBOARD FEATURES
• Advanced Energy Monitor
• Packet Trace Interface
• Virtual COM port
• SEGGER J-Link on-board debugger
• External device debugging
• Ethernet and USB connectivity
• Silicon Labs Si7021 relative humidity and
temperature sensor
• Low Power 128x128 pixel Memory LCD
• User LEDs / pushbuttons
• 20-pin 2.54 mm EXP header
• Breakout pads for Wireless SoC I/O
• CR2032 coin cell battery support
SOFTWARE SUPPORT
• Simplicity Studio™
• Energy Profiler
• iOS and Android applications
ORDERING INFORMATION
• SLWRB4206A
Rev. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EFR32ZG14 and is the answer not in the manual?

Questions and answers

Summary of Contents for Silicon Laboratories EFR32ZG14

  • Page 1 • Optional PCB antenna BRD4206A is a plug-in board for the Wireless Starter Kit Mainboard, and it is a complete reference design for the EFR32ZG14 Wireless SoC. The board features an SMA con- WIRELESS STK MAINBOARD FEATURES nector for RF connection and an optional PCB antenna that can be selected by moving a 0 Ω...
  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ....... . 4 1.1 Radio Boards ......4 1.2 Ordering Information .
  • Page 3 7.1 Introduction .......23 7.2 Theory of Operation ......23 7.3 AEM Accuracy and Performance .
  • Page 4: Introduction

    To further enhance its usability, the mainboard contains sensors and peripherals that demonstrate some of the many capabilities of the EFR32ZG14. The mainboard also has a 20-pin EXP header which can be used for connecting EXP boards to the kit, or for easy con- nection to I/Os on the target IC on the radio board.
  • Page 5: Hardware Overview

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Hardware Overview 2. Hardware Overview 2.1 Hardware Layout The layout of the EFR32ZG14 Z-Wave Long Range Wireless Starter Kit is shown in the figure below. Radio Board Breakout Pads Plug-in Radio Board On-board USB and...
  • Page 6: Block Diagram

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Hardware Overview 2.2 Block Diagram An overview of the EFR32ZG14 Z-Wave Long Range Wireless Starter Kit is shown in the figure below. Wireless STK Mainboard Board Controller USB Mini-B...
  • Page 7: Connectors

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Connectors 3. Connectors This chapter gives you an overview of the Wireless STK Mainboard connectivity. The placement of the connectors is shown in the fig- ure below. VMCU VMCU Figure 3.1.
  • Page 8: Breakout Pads

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Connectors 3.3 Breakout Pads Most pins of the EFR32 are routed from the radio board to breakout pads at the top and bottom edges of the Wireless STK Mainboard.
  • Page 9: Exp Header

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Connectors 3.4 EXP Header The EXP header is an angled 20-pin expansion header that allows connection of peripherals or plugin boards to the kit. It is located on the right-hand side of the mainboard, and it contains several I/O pins that can be used with most of the EFR32 Wireless Gecko's fea- tures.
  • Page 10: Exp Header Pinout

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Connectors 3.4.1 EXP Header Pinout The pin-routing on the EFR32 is very flexible, so most peripherals can be routed to any pin. However, many pins are shared between the EXP header and other functions on the Wireless STK Mainboard.
  • Page 11: Debug Connector

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Connectors 3.5 Debug Connector The debug connector serves multiple purposes based on the "debug mode" setting which can be configured in Simplicity Studio. When the debug mode is set to "Debug IN", the debug connector can be used to connect an external debugger to the EFR32 on the radio board.
  • Page 12: Simplicity Connector

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Connectors 3.6 Simplicity Connector The Simplicity Connector enables the advanced debugging features, such as the AEM, the virtual COM port, and the Packet Trace Interface, to be used towards an external target. The pinout is illustrated in the figure below.
  • Page 13: Debug Adapter

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Connectors 3.7 Debug Adapter The BRD8010A STK/WSTK Debug Adapter is an adapter board which plugs directly into the debug connector and the Simplicity Con- nector on the mainboard. It combines selected functionality from the two connectors to a smaller footprint 10-pin connector, which is more suitable for space-constrained designs.
  • Page 14: Power Supply And Reset

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Power Supply and Reset 4. Power Supply and Reset 4.1 Radio Board Power Selection The EFR32 on a Wireless Starter Kit can be powered by one of these sources: •...
  • Page 15: Efr32 Reset

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Power Supply and Reset 4.3 EFR32 Reset The EFR32 Wireless SoC can be reset by a few different sources: • A user pressing the RESET button • The on-board debugger pulling the #RESET pin low •...
  • Page 16: Peripherals

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Peripherals 5. Peripherals The starter kit has a set of peripherals that showcase some of the features of the EFR32. Note that most EFR32 I/O routed to peripherals are also routed to the breakout pads or the EXP header, which must be taken into consideration when using these.
  • Page 17: Virtual Com Port

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Peripherals 5.2 Virtual COM Port An asynchronous serial connection to the board controller is provided for application data transfer between a host PC and the target EFR32. This eliminates the need for an external serial port adapter.
  • Page 18: Host Interfaces

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Peripherals 5.2.1 Host Interfaces Data can be exchanged between the board controller and the target device through the VCOM interface, which is then available to the user in two different ways: •...
  • Page 19: Hardware Handshake

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Peripherals 5.2.3 Hardware Handshake The VCOM peripheral supports basic RTS/CTS flow control. VCOM_CTS (target clear to send) is a signal that is output from the board controller and input to the target device. The board controller de-asserts this pin whenever its input buffer is full and it is unable to accept more data from the target device.
  • Page 20: Board Controller

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Board Controller 6. Board Controller The Wireless STK Mainboard contains a dedicated microcontroller for some of the advanced kit features provided. This microcontroller is referred to as the board controller and is not programmable by the user. The board controller acts as an interface between the host PC and the target device on the radio board, as well as handling some housekeeping functions on the board.
  • Page 21: Command Examples

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Board Controller 6.1.3 Command Examples PTI Configuration pti config 0 efruart 1600000 Configures PTI to use the "EFRUART" mode at 1.6 Mb/s. Serial Port Configuration serial config vcom handshake enable Enables hardware handshake on the VCOM UART connection.
  • Page 22: Troubleshooting

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Board Controller 6.2.4 Troubleshooting Problem Solution No data received after ending a After certain debugger operations the host computer manually disables SWO on the target in order debug session.
  • Page 23: Advanced Energy Monitor

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Advanced Energy Monitor 7. Advanced Energy Monitor 7.1 Introduction Any embedded developer seeking to make their embedded code spend as little energy as the underlying architecture supports needs tools to easily and quickly discover inefficiencies in the running application.
  • Page 24: Aem Accuracy And Performance

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Advanced Energy Monitor 7.3 AEM Accuracy and Performance The AEM is capable of measuring currents in the range of 0.1 µA to 95 mA. For currents above 250 µA, the AEM is accurate within 0.1 mA.
  • Page 25: On-Board Debugger

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide On-Board Debugger 8. On-Board Debugger The Wireless STK Mainboard contains an integrated debugger, which can be used to download code and debug the EFR32. In addition to programming a target on a plug-in radio board, the debugger can also be used to program and debug external Silicon Labs EFM32, EFM8, EZR32, and EFR32 devices connected through the debug connector.
  • Page 26: Debug Modes

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide On-Board Debugger 8.2 Debug Modes To program external devices, use the debug connector to connect to a target board and set the debug mode to [Out]. The same con- nector can also be used to connect an external debugger to the EFR32 Wireless SoC on the kit by setting debug mode to [In].
  • Page 27: Debugging During Battery Operation

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide On-Board Debugger 8.3 Debugging During Battery Operation When the EFR32 is battery-powered and the J-Link USB is still connected, the on-board debug functionality is available. If the USB power is disconnected, the Debug IN mode will stop working.
  • Page 28: Kit Configuration And Upgrades

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Kit Configuration and Upgrades 9. Kit Configuration and Upgrades The kit configuration dialog in Simplicity Studio allows you to change the J-Link adapter debug mode, upgrade its firmware, and change other configuration settings.
  • Page 29: Schematics, Assembly Drawings, And Bom

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Schematics, Assembly Drawings, and BOM 10. Schematics, Assembly Drawings, and BOM Schematics, assembly drawings, and bill of materials (BOM) are available through Simplicity Studio when the kit documentation pack- age has been installed.
  • Page 30: Kit Revision History

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Kit Revision History 11. Kit Revision History The kit revision can be found printed on the kit packaging label, as outlined in the figure below. Z-Wave 700 – EFR32ZG14 Long Range Radio Board...
  • Page 31: Document Revision History

    UG476: Z-Wave 700 - EFR32ZG14 Long Range Wireless Starter Kit User's Guide Document Revision History 12. Document Revision History Revision 1.0 November 2020 • Initial document version. silabs.com | Building a more connected world. Rev. 1.0 | 31...
  • Page 32 Trademark Information Silicon Laboratories Inc.®, Silicon Laboratories®, Silicon Labs®, SiLabs® and the Silicon Labs logo®, Bluegiga®, Bluegiga Logo®, ClockBuilder®, CMEMS®, DSPLL®, EFM®, EFM32®, EFR, Ember®, Energy Micro, Energy Micro logo and combinations thereof, “the world’s most energy friendly microcontrollers”, Ember®, EZLink®, EZRadio®, EZRadioPRO®, Gecko®, Gecko OS, Gecko OS Studio, ISOmodem®, Precision32®, ProSLIC®, Simplicity Studio®, SiPHY®, Telegesis, the Telegesis Logo®, USBXpress®, Zentri, the Zentri logo and...
