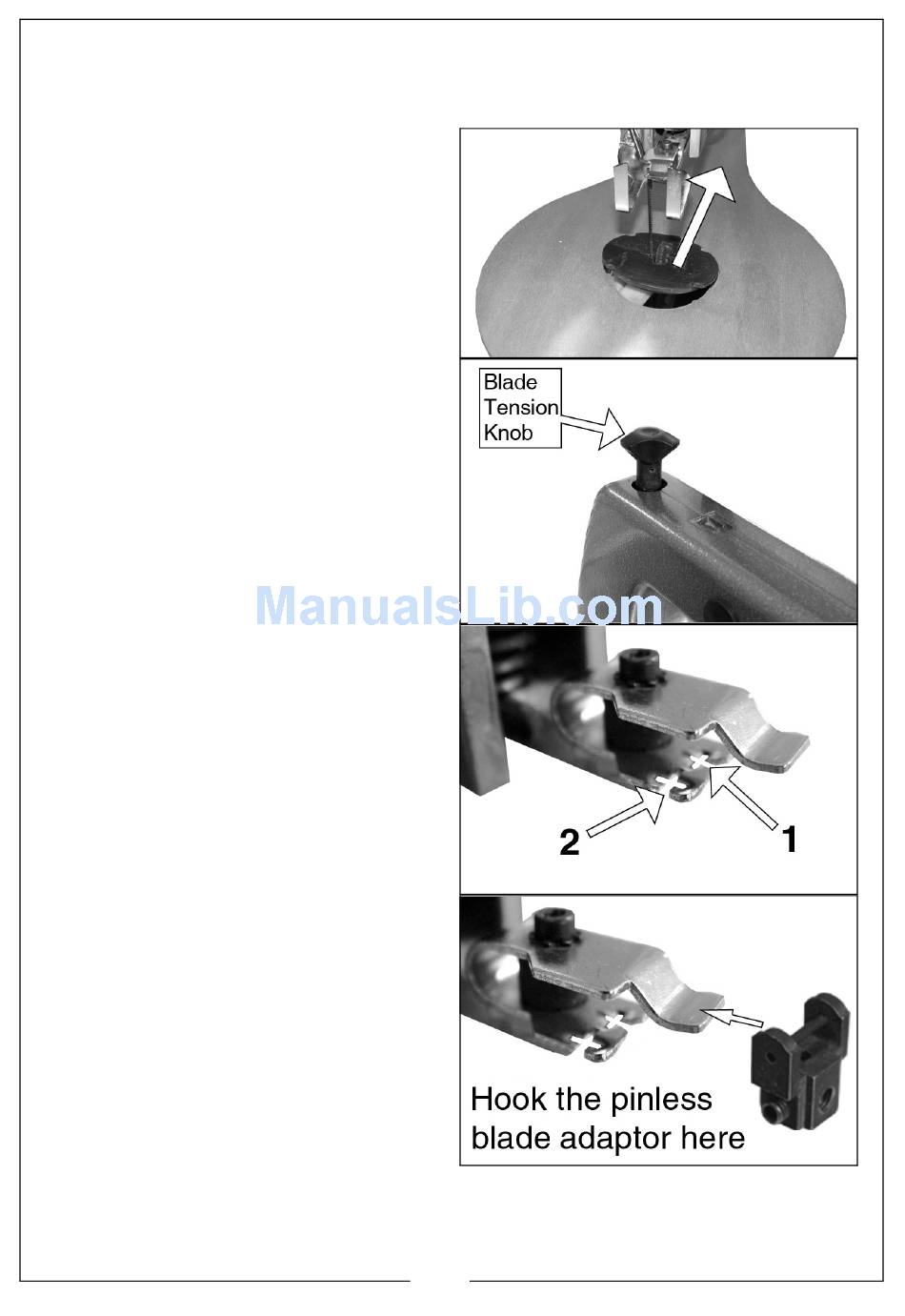

INSTALLING BLADES

1. Unplug the saw from the power source.
2. Remove the table insert.
3. Turn the blade tension knob
anticlockwise to remove the
tension from the saw blade (if
fitted).
• The following replacement
blades are available from your
Clarke Dealer, : 15TPI (Part No:
AWNCSS400C035A) 18TPI (Part
No AWNCSS400C035B)
4. Press down the upper arm and
hook the blade to the blade
holder. The blade holder has two
slots.
• Use slot
upper arm.
• Use slot
to the upper arm.
• If you are using pinless blades
hook the blade adaptor to the
front of the blade holder.
5. Turn the blade tension knob
clockwise to re-tension the blade.
6. Replace the table insert.
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
1
to cut in line with the
2
to cut at right angles
11
