Page 1

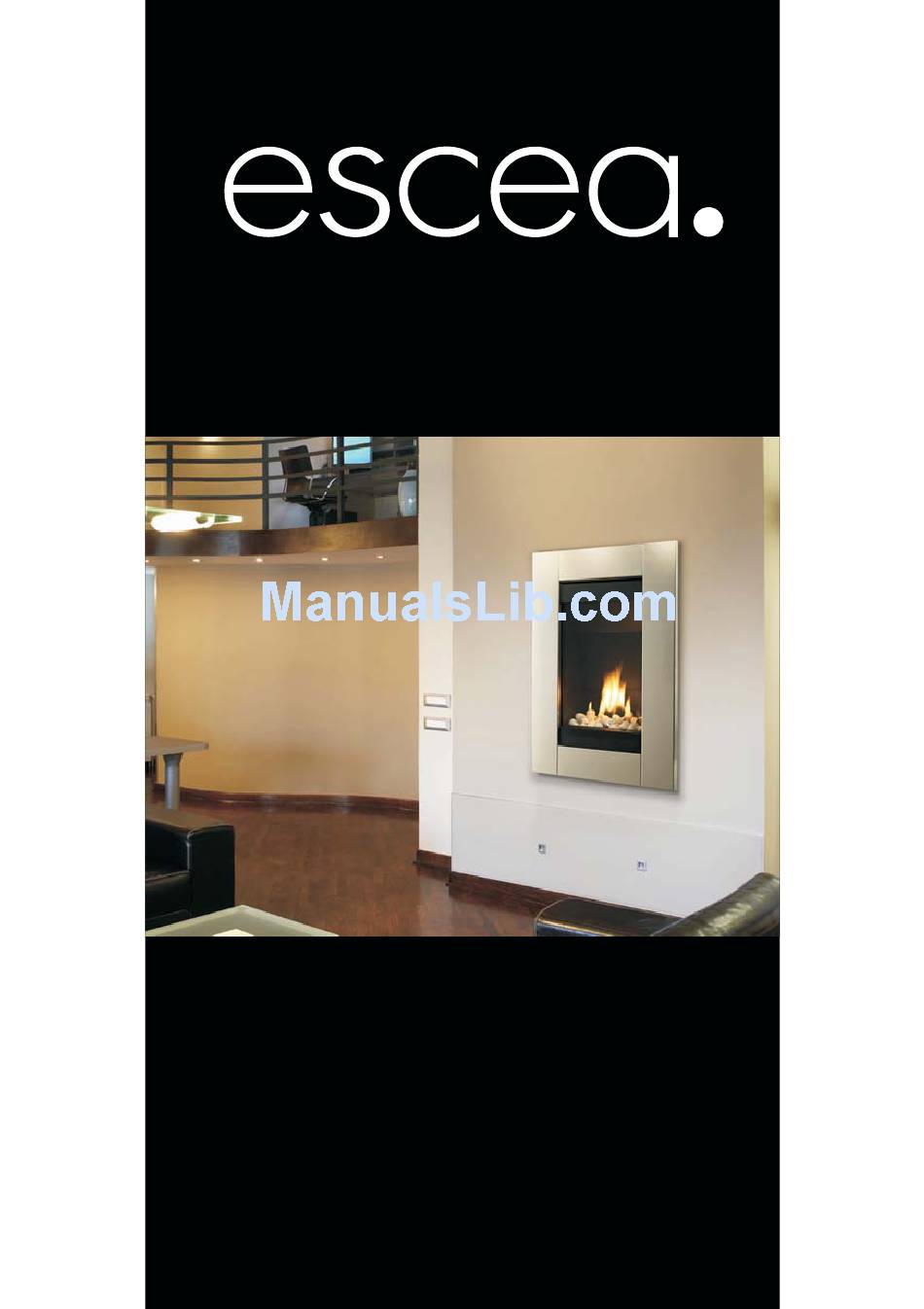

GAS FIRE USER GUIDE ST500 www.escea.net 630172_1 Manual_User_ST500_R-emotion_NZ...
Page 2
To access this, the fascia must be removed. Escea recommends the ST500 is inspected and serviced by a qualified Gas Fitter once every twelve (12) months.
Page 3
Normal operating Sounds and Smells > Warranty Information The ST500 electronic control system is designed to work within the temperature range of 0°C to 70°C, with a humidity level that is non condensing. This is to ensure safe operation of the electronic and gas control system.
Page 4
Basic Operation The ST500 remote control allows you to turn ON and OFF the fire, control the flame height in the Manual mode, or control the room temperature in the Thermostat mode. The remote has a maximum range of 10 meters, and...
Page 5
Basic Operation Switching off the ST500 To turn off the fire, push the OFF button, to shut down the gas flow to the fire and switch it off. The OFF display will now appear in the display. Setting the control mode for the fireplace: There are three different modes for controlling the appliance: >...
Page 6
Basic Operation Automatic mode: If Auto is pressed in the initial screen, 25ºC (77 º F) appears as the desired temperature in the selected ↓ ↑ setting. In the bottom row, appear, indicating that we can change the desired temperature value by just pressing the left or middle button.
Page 7
Basic Operation Program mode (continued) The daily program screen consists of: A: Selected (including “Daily”). The selected day can be changed by pressing Change (middle button). B: Day schedule graphic. This bar displays the program for the whole day by showing the temperature setting for each hour of the day.
Page 8
To turn on the ST500, push the ON/OFF button on the touch pad. The system will emit a beep and begin the ignition process, which can take about 20 seconds. Once the start up process is complete, the pilot flame is lit. The ST500 is now in the 'Manual' mode and ready to be used.
Page 9
For this reason TV location decisions rest solely with the householder and Escea will not be held liable for any adverse affects on a TV located near to an Escea fireplace that may be caused by heat.
Page 10
When batteries are replaced in either the battery box (inside the fireplace) or n the handset, the unit will require 1 minute afterwards to regain connection. ST500 Mantle Clearances If any part of the installation If the entire installation (mantle,...
Page 11
Your ST500 Decorative Gas Fireplace requires that annual service checks be carried out by a Registered Installer to ensure that it will continue to operate in a safe manner. Please ensure that you schedule annual service checks for your ST500 with your local Registered Installer. Removing the ST500 Fascia Ensure the fascia is allowed to cool before handling.
Page 12
Cleaning your ST500 The unit must be cold before starting any form of maintenance or cleaning. If your Stainless Steel fascia requires cleaning, 3M Stainless steel cleaner (or equivalent) is recommended.
Page 13
Sounds and Smells Note: Each time the fire is lit from cold the glass will fog up with condensation. This is normal and the condensation will disappear within a few minutes once the glass heats up. Sounds It is possible that you will hear some sounds from your gas appliance. This is perfectly normal due to the fact that there various types of materials used within your appliance.
Page 14
Warranty period without the prior written consent of ESCEA then the Limited Warranty shall be void. ESCEA may, at its sole discretion, decide that the Limited Warranty is void in relation to any part of the product, which has been modified.
Page 15
Warranty 4. No ESCEA Distributor, retailer, employee or other third party is authorized to make any modification, extension, or addition to this Limited Warranty, whether verbal or written. 5. ESCEA reserves the right to discontinue products or make substitutions, in such event, the buyer may receive a substitute product or a cash refund at ESCEA'S sole discretion, if a replacement for the product covered by this Limited Warranty is no longer available.
