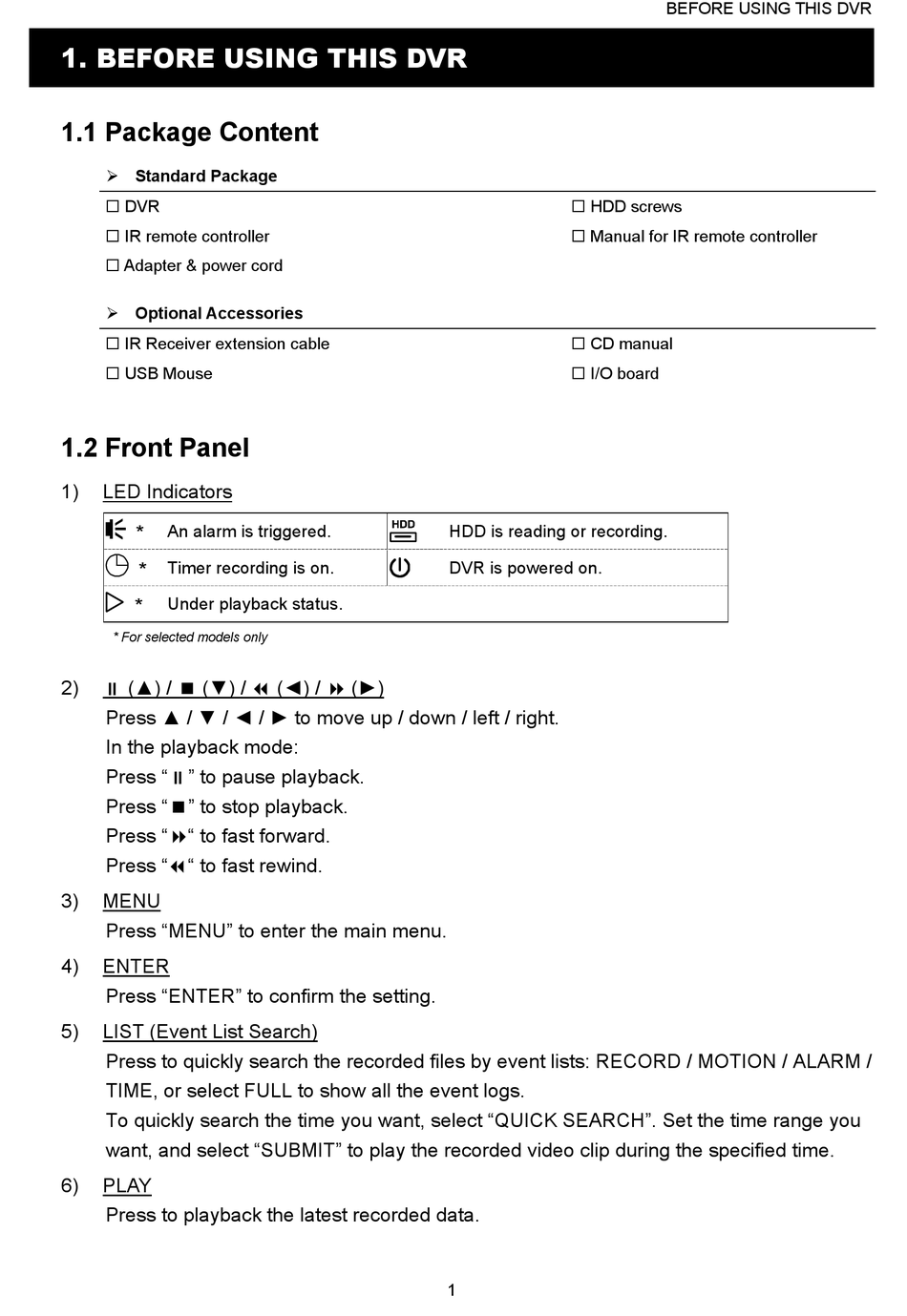

1. BEFORE USING THIS DVR

1.1 Package Content

 Standard Package
 DVR
 IR remote controller
 Adapter & power cord
 Optional Accessories
 IR Receiver extension cable
 USB Mouse

1.2 Front Panel

1) LED Indicators
* An alarm is triggered.
Timer recording is on.
*
Under playback status.
*
* For selected models only
2)  (▲) /  (▼) /  (◄) /  (►)
Press ▲ / ▼ / ◄ / ► to move up / down / left / right.
In the playback mode:
Press "" to pause playback.
Press "" to stop playback.
Press "" to fast forward.
Press "" to fast rewind.
3) MENU
Press "MENU" to enter the main menu.
4) ENTER
Press "ENTER" to confirm the setting.
5) LIST (Event List Search)
Press to quickly search the recorded files by event lists: RECORD / MOTION / ALARM /
TIME, or select FULL to show all the event logs.
To quickly search the time you want, select "QUICK SEARCH". Set the time range you
want, and select "SUBMIT" to play the recorded video clip during the specified time.
6) PLAY
Press to playback the latest recorded data.
 HDD screws
 Manual for IR remote controller
 CD manual
 I/O board
HDD is reading or recording.
DVR is powered on.
