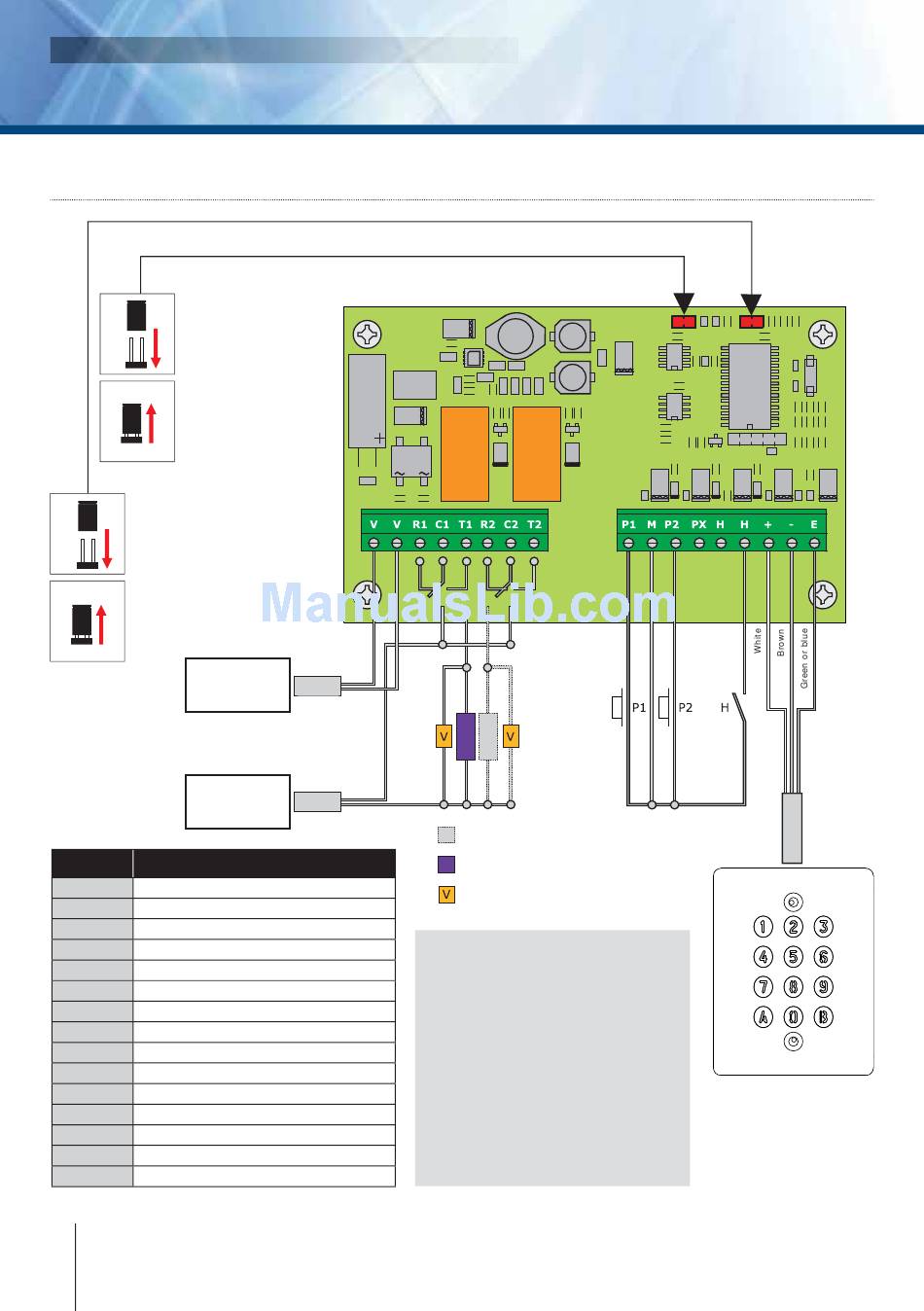

6] WIRING DIAGRAM KCIN 2-RELAY OUTPUTS

P3
to the user to modify
its own
To enable this feature
put the jumper on. (see
Programming section in
the instruction manual)
P2 jumper resets the key-
pad to factory
values. Remove the power
from the keypad then put
the jumper.
(see Programming section
in the instruction manual)
Power supply
12 to 24VAC
or 12 to 48VDC
Power supply
According to lock
specifi cations
Outputs Description
V
Input voltage 12V to 24VAC or 12V to 48VDC
V
Input voltage 12V to 24VAC or 12V to 48VDC
R1
N/C contact relay 1
C1
Common relay 1
T1
N/O contact relay 1
R2
N/C contact relay 2
C2
Common relay 2
T2
N/O contact relay 2
P1
Request-to-exit input relay 1
M
Common of inputs
P2
Request-to-exit input relay 2
H
Timer Contact
+
White wire from keypad
-
Brown wire from keypad
E
Green or Blue wire (illumination)
cdvi.com
6 6
cdvigroup.com
D - 693 : Remote electronics
jumper allows
Pin code.
default
Relay Relay
1 2
Fail safe lock
Fail secure lock
Varistor
Request-to-Exit inputs
P1 request-to-exit input activates relay 1.
P2 request-to-exit input activates relay 2.
Latch or toggled output.
H input can be used with
a timer to enable free access
by pressing on any digit key
on the keypad.
When the contact is open
then the request-to-enter is disabled.
When the contact is closed then press
any key on the keypad to enter.
P3
P2
H (Open)
KCIN Keypad mode
H (Closed)
KCIN Request-to-
Enter mode
