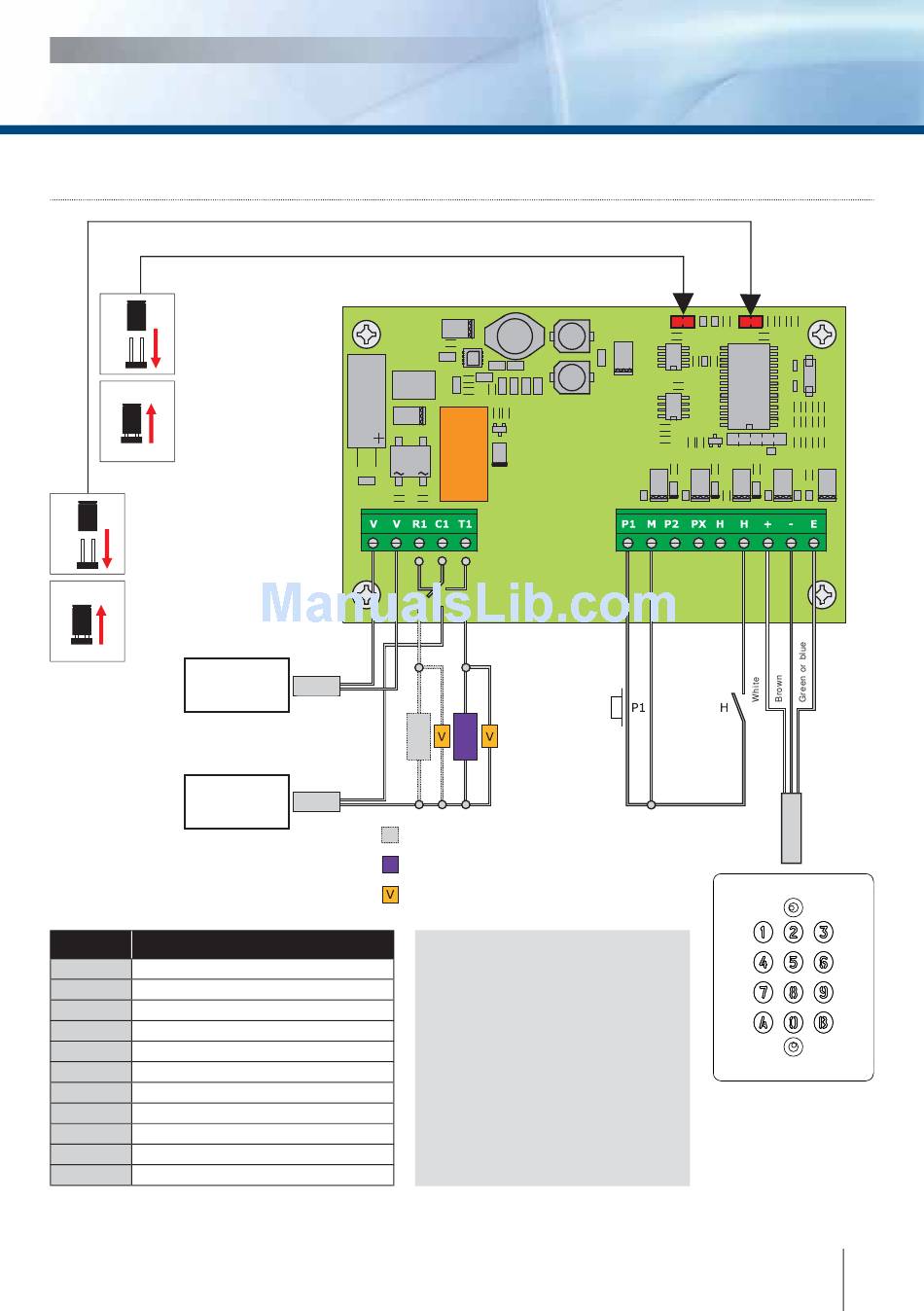

5] WIRING DIAGRAM : KCIN 1-RELAY OUTPUT

P3 jumper allows to the
user to modify its own
Pin code. To enable this
feature put the jumper
on. (see Programming
section in the instruction
manual)
P2 jumper resets the key-
pad to factory
values. Remove the power
from the keypad then put
the jumper.
(see Programming section
in the instruction manual)
Power supply
12 to 24VAC
or 12 to 48VDC
Power supply
According to lock
specifi cations
Outputs Description
V
Input voltage 12V to 24V ac or 12V to 48V dc
V
Input voltage 12V to 24V ac or 12V to 48V dc
R1
N/C contact relay 1
C1
Common relay 1
T1
N/O contact relay 1
P1
Request-to-exit input relay 1
M
Common of input
H
Timer Contact
+
White wire keypad
-
Brown wire keypad
E
Green or Blue wire (illumination)
D - 693 : Remote electronics
Relay
default
Fail safe lock
Fail secure lock
Varistor

Request-to-Exit inputs

P1 request-to-exit input activates relay 1.
P2 request-to-exit input activates relay 2.
Latch or toggled output.
H input can be used with
a timer to enable free access
by pressing on any digit key
on the keypad.
When the contact is open
then the request-to-enter is disabled.
When the contact is closed then press
any key on the keypad to enter.
1
H (Open) KCIN
Keypad mode
H (Closed) KCIN
Request-to-Enter
mode
P3
P2
