Illuminated weatherproof Keypad with Remote Electronics 1, 2 or 3 relays

2] NOTES AND RECOMMENDATIONS

CABLE

- The distance between the KCIN
and the remote electronic can not exceed
more than 10 meters.
- Make sure that the cable is not near
by a high voltage cable (ex: 230 V AC).
Recommended cable between
The KCIN and the remote electronic
2-pair cables (4 wires) SYT1 8/10
Recommended power supplies
suitable for the KCIN
- ARD12 (230V input)
- BS60 (230V input)

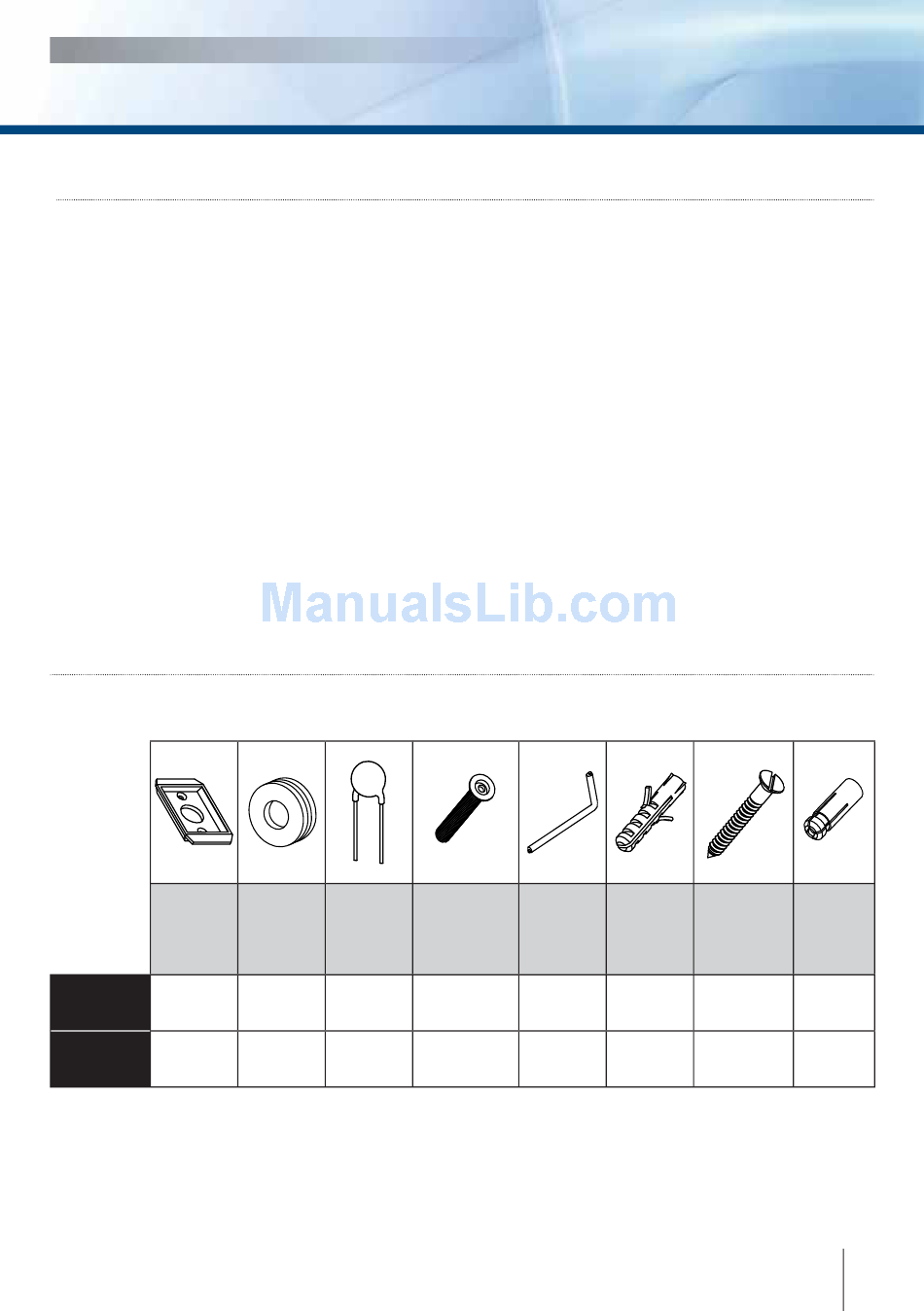

3] MOUNTING KIT

3] MOUNTING KIT
Remote
electronic
mounting
plate
Remote
1
electronic
-
KCIN
.
ths
Wire
Diax
sealed Varistor
cap
2 -
- 1
Mounting recommendations
Mount the keypad on a fl at surface to avoid
any vandalism and to insure the best mounting.
Security advice
- For security reasons, change
the factory default master code.
- When selecting a master code and user code
avoid simple codes (example : 3 4 5 6 7).

Back EMF protection

To secure the system from back electromagnetic
fi elds do not forget to mount the varistor
in parallel on the lock terminal.
screws
®
Diax
®
(M5x35)
- -
2 1
Screw
Plastic
anchor
(M4x30)
2 2
2 2
