Setup Menu

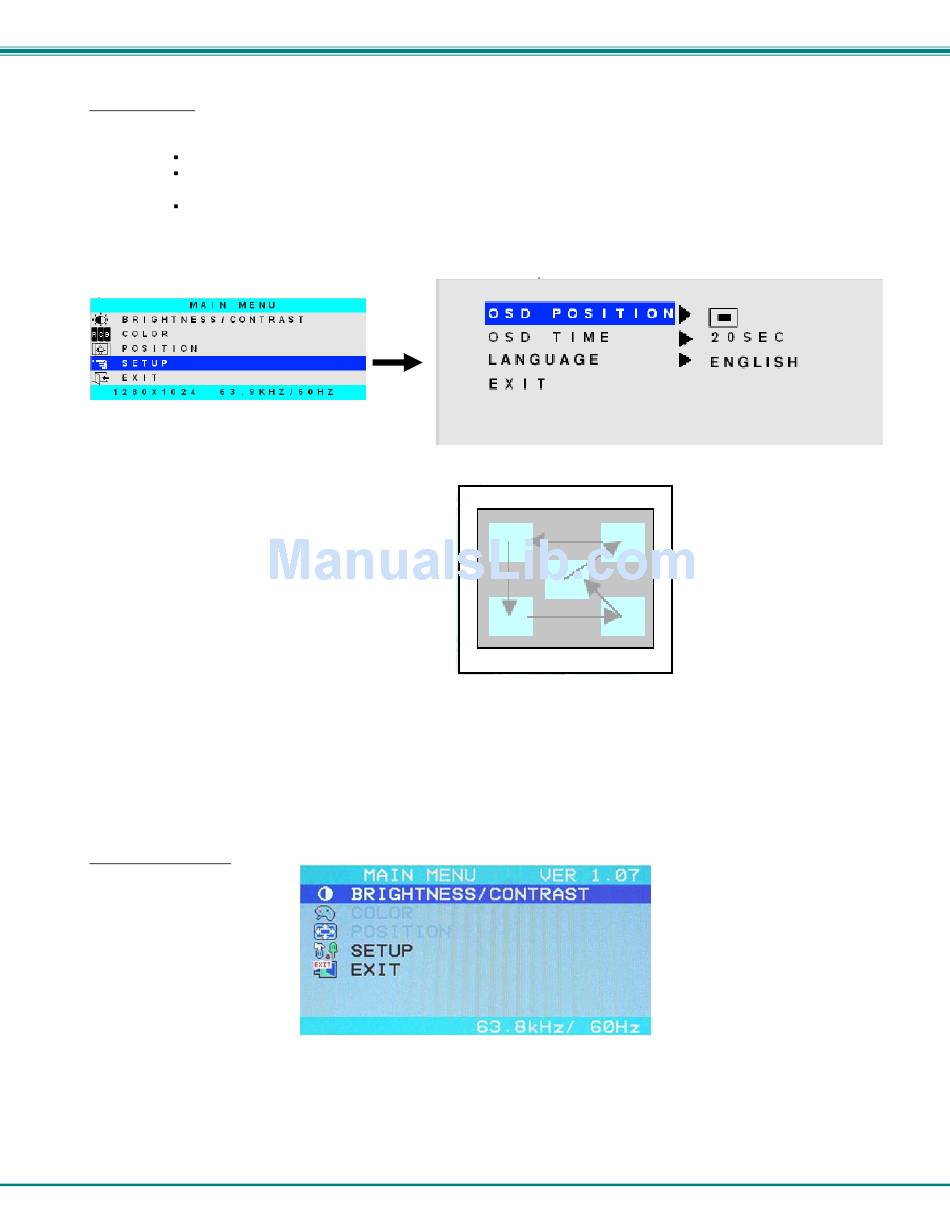

Selecting the Setup menu will bring up a screen in which the user can adjust
OSD POSITION-the position of the OSD menus on the LCD display
OSD TIME-the length of time the user can be idle before the OSD menu automatically exits (adjustable from 10
LANGUAGE-the language that the OSD menus will be presented in
With the item highlighted, (use the Up or Down arrow to move between them), press the Select button to choose the option to
adjust. Then use the Up or Down Arrow to adjust the setting as needed.
Menu.
OSD Image can be moved
to different points on the
display

OSD Control Menu-DVI Model (-D17)

The OSD (On Screen Display) Menu enables the user to select the desired characteristics of the LCD display. To activate the
OSD Menu, press the Menu button (page 15).
wait 10-60 seconds and it will automatically be cleared from the screen.
saved.

OSD Main Menu

Note: In order to display the OSD Menu, the RACKMUX must first be connected to a video source (see "Connect to a
CPU" – page 8).
Note: If menu does not appear when the Menu button is pressed, the monitor may be set for a "PC" (VGA) input source.
Press the Up Arrow button on the monitor to switch it to a "Digital" (DVI) input source.
to 60 seconds)
To turn the Menu back OFF, either select "EXIT" from the main menu or just
Select EXIT when finished to return to the Main
Any changes made before exiting the menu will be
