NTI RACKMUX-V15/17 RACKMOUNT LCD MONITOR WITH KEYBOARD AND MOUSE

KEYBOARD FUNCTIONS

The keyboard on the RACKMUX-Vxx is a standard condensed Windows format. To reduce the keyboard size, some keys have
been assigned multiple functions, accessible via the "Fn" key.
how to enable them. Use the LEDs to know what special features are enabled.

Function Key Operation

The Function ("Fn") key provides several special functions on the RACKMUX keyboard, including:
enabling otherwise standard keyboard keys to be used as the keys of a numeric keypad
enabling multi-function keys to change operation
enabling the "T" key to act as a mode key to toggle between USB and PS/2 keyboard/mouse mode
To turn ON (lock) the Function key, press the "Fn" key twice quickly (double-click).
To turn OFF (unlock) the Function key, press the "Fn" key twice quickly again. The "Fn" LED will turn OFF.
Note: The "Fn" key will also operate similar to the shift key (with only momentary effect). Press and hold the "Fn" key
prior to pressing the special function key. The "Fn" key will remain active as long as it is depressed.
F1 F2 F3
Esc
@
!
~
2
1
`
W
Q
Tab
A
CapsLock
Shift Z
Fn Ctrl
Function Key to enable additional key functions
On= NumLock
is locked
F6
F4 F5 F7
# % ^
$
3 5 6
4
E R T Y
S D F G
X C V B
Alt

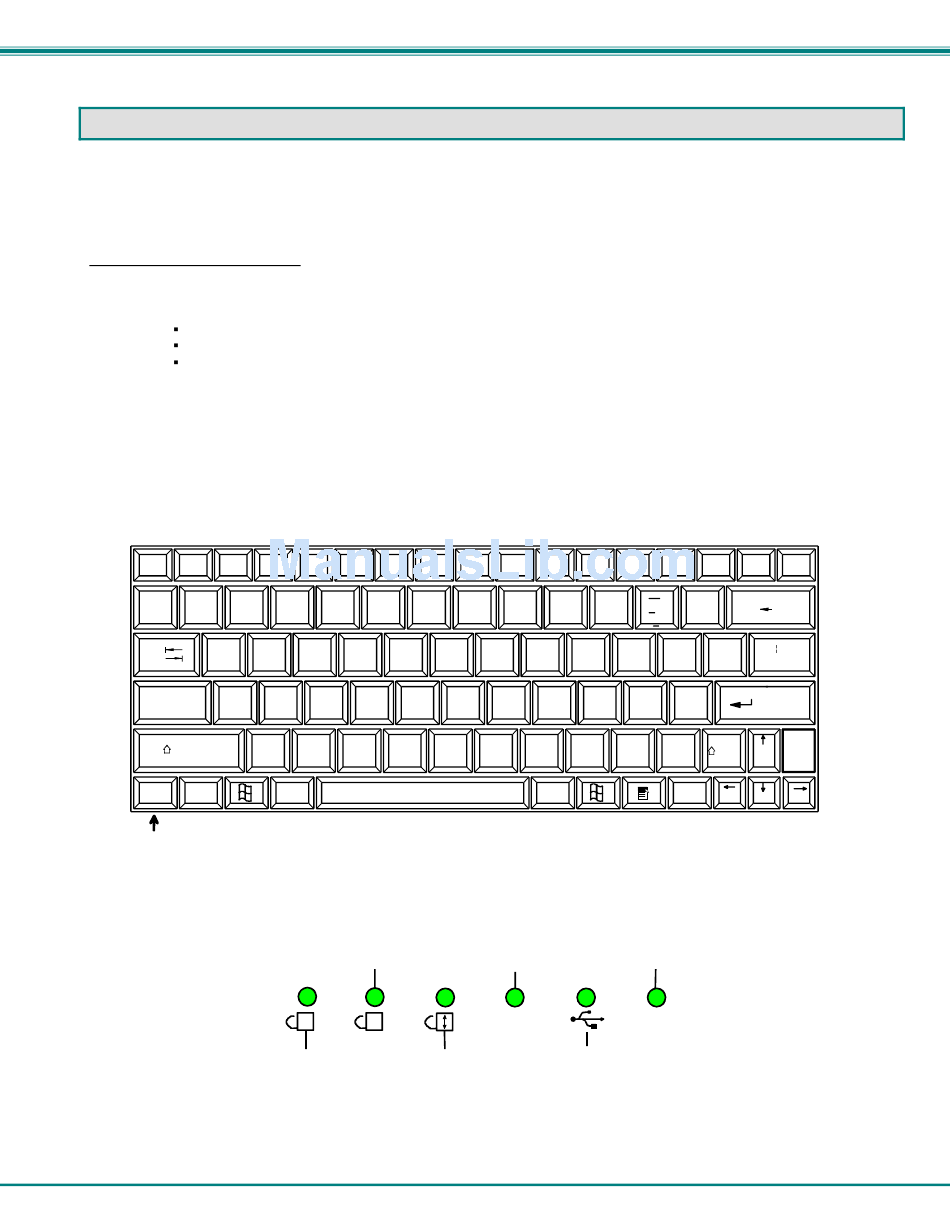

Figure 21- US(English) Keyboard Layout

On= CapsLock
is locked
A
1
On= Scroll Lock
is locked

Figure 22- Keyboard LED Indications

This section will describe which keys have multiple functions and
The "Fn" LED will illuminate.
F8 F11 F12
F9 F10
& ( )
*
7 8 9 0
7 8 9
U I O P
4 5 6
H J K L
1 2 3
<
>
,
N M
.
.
0
Alt
On= PS/2
On= Function
Keyboard/Mouse
Key feature
mode
is ON
Fn
On= USB
Keyboard/Mouse
mode
21
Num Lk Insert Delete Pause
Sys Rq
Scr Lk Prt Sc Break
+
Backspace
=
{ }
]
[
\
Enter
: "
Enter
;
'
+
*
?
Shift
/ Pg Up
/
Ctrl
Pg Dn End
Home
PS/2
