Before you begin, make sure that power to all the devices (Master View Pro and
PCs) you will be connecting up have been turned off.

First Stage Installation

In a Single Stage installation, there are no additional Master View's daisy
chained down from the first unit. To set up a single stage installation do the
following:
1. Set Switches 1 - 5 of the Master View Pro's DIP Switch to the ON position to
set this unit up as the First Station (see the table on page 26 for Dip Switch
Station Setting details).
2. To enable Hot Key port selection (see p.13, for details concerning Hot Key
Port Selection), set DIP Switch 6 to the ON position.
3. Plug the monitor, keyboard, and mouse into the Console port connectors
located on the right rear panel of the Master View unit. Each port is labeled
with an appropriate icon to indicate itself.

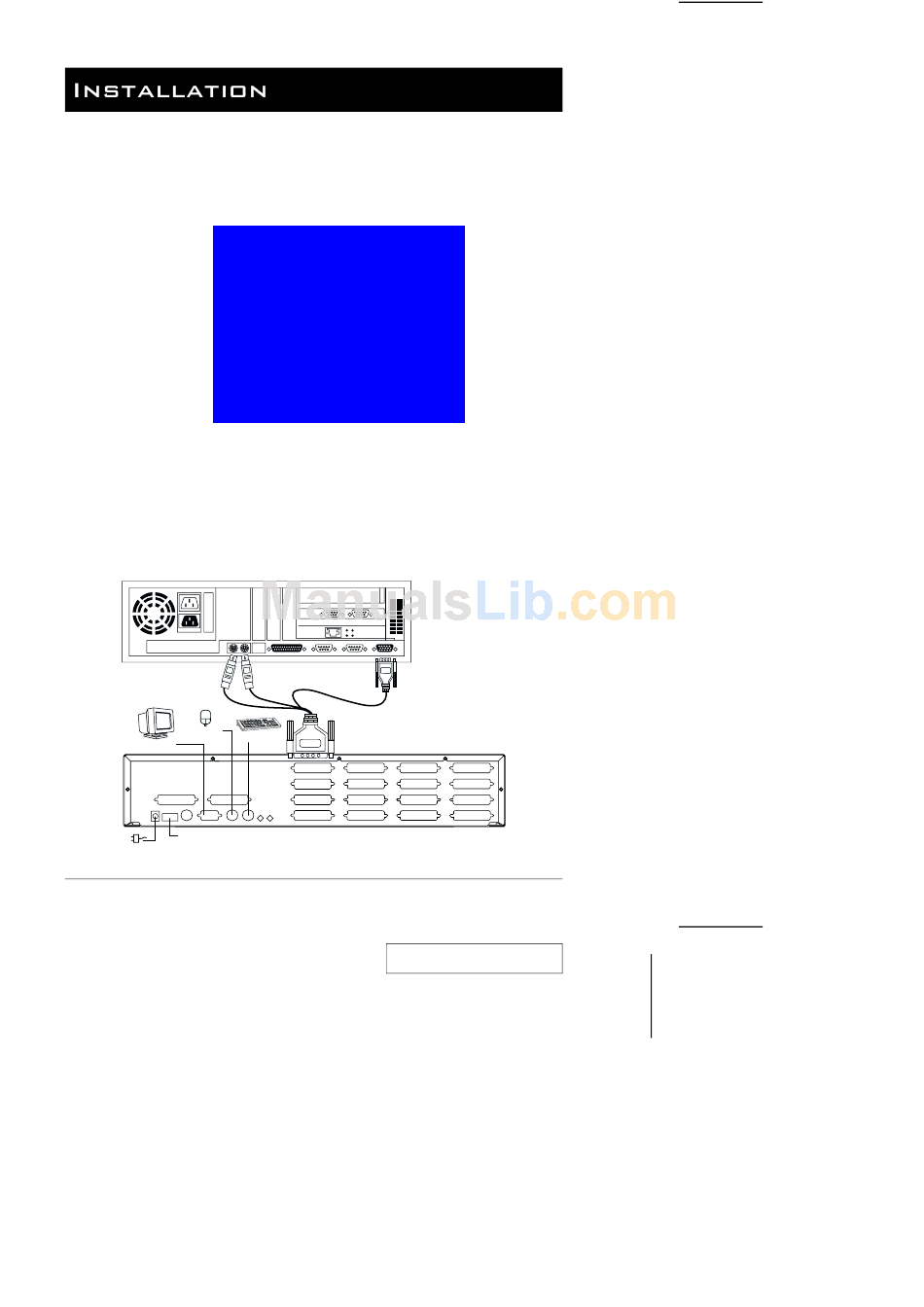

4. Use connector cable sets (as described in the Hardware Requirements
section), to connect the monitor, keyboard and mouse ports of the PCs to
any available Master View CPU Port (CPU1 to CPU16), as shown in the
diagram below.
Note: Ignore the Chain In and Chain Out Ports at this time. They are only
used when daisy chaining additional Master View Pro units. Daisy
chaining is described in the next section.
5. Plug the power adapter into an AC source; plug the power adapter cable into
the Master View Pro's Power Jack.
PS/2 KEYBOARD
PORT
PS/2 MOUSE
VGA MONITOR
DIP Switch
Power Adapter
6
PS/2
VGA MONITOR
MOUSE
PORT
PORT
PS/2 KEYBOARD
