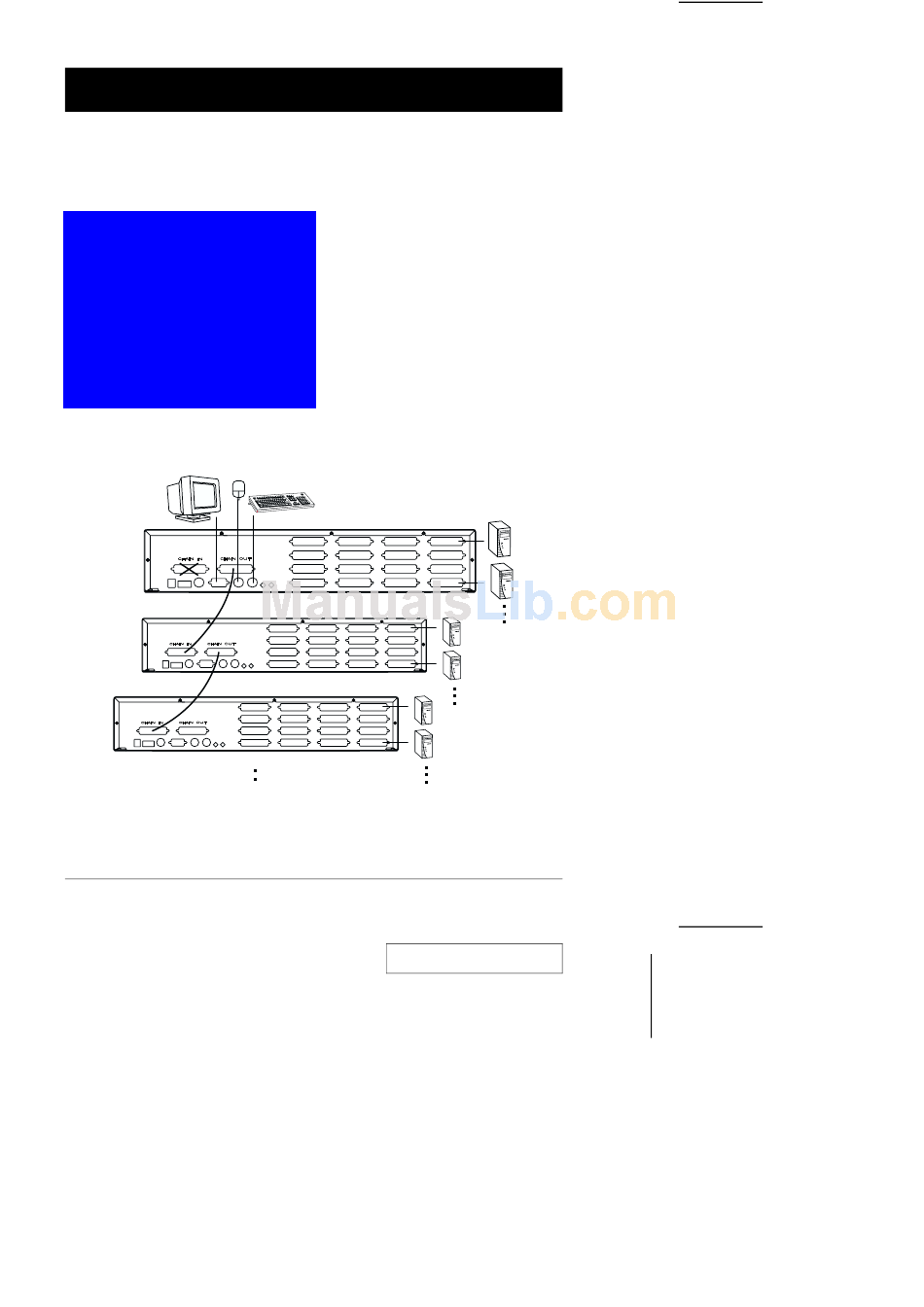

4. Use Daisy chain cable set 2L-1700 (as described in the Hardware
Requirements section), to connect from the Chain Out Port of the parent
Master View unit to the Chain In Port of the child Master View unit (First
Station Out to Second Station In, Second Station Out to Third Station In, etc.).
Note: You cannot use the Chain In Port of the First Station Master View,
since it is the highest level parent.
5. Plug the power adapter into an AC source; plug the power adapter cable into
the Master View unit's power jack located on the unit's rear panel.
6. Connect the PCs to the ports with the cable sets described in the Cables
section on page 3, and power up. When powering up, you must follow these
two basic rules:
a) Turn on the power to a child Master View Station before turning on the
power to its parent (i.e., start with the last unit in the chain and work back
to the First Station).
b) Turn on the power to all the Master View Pro Stations before turning on
the power to any of the PCs.
