Summary of Contents for ATEN CS1182

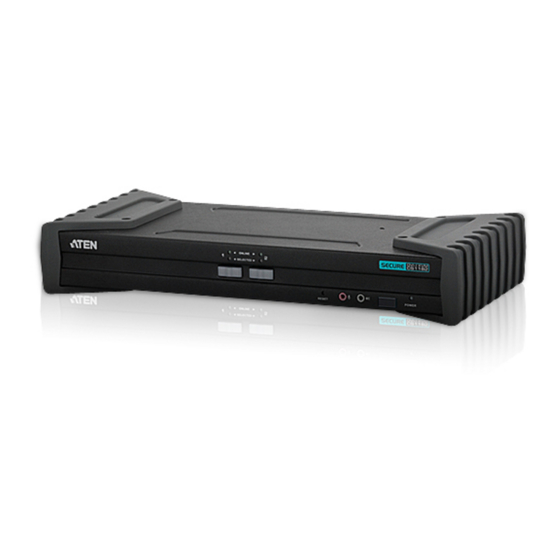

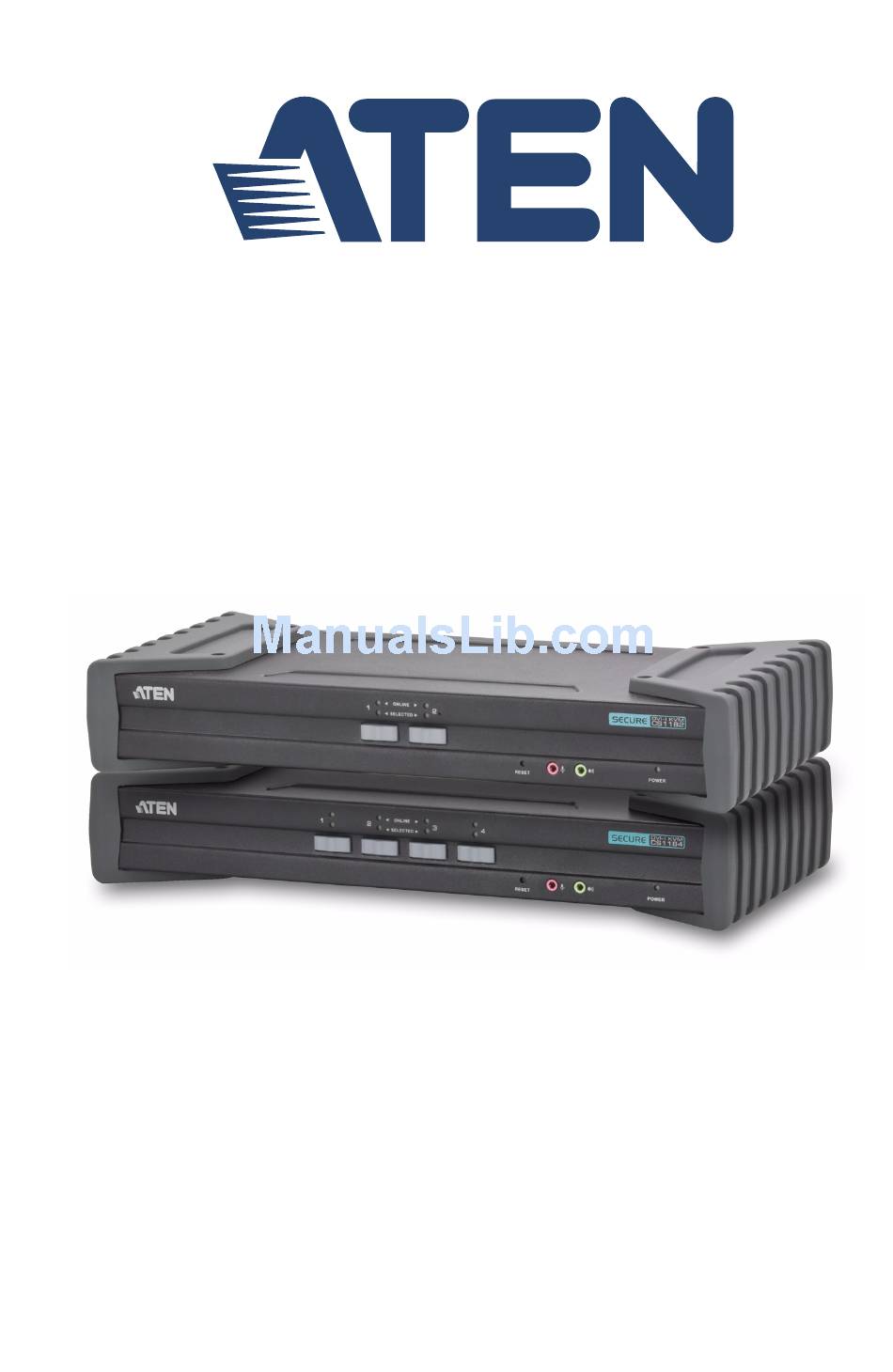

- Page 1 USB DVI Secure KVM Switch CS1182 / CS1184 User Manual www.aten.com...
-
Page 2: Fcc, Ce Information
CS1182 / CS1184 User Manual FCC, CE Information Federal Communication Commission Interference Statement: This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: User Information
CS1182 / CS1184 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America... -
Page 4: Package Contents
Manual Part No. PAPE-0341-AT1G F/W Version: 1.0.064 Manual Date: 2014-02-27 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 5: Table Of Contents
CS1182 / CS1184 User Manual Contents FCC, CE Information......... . ii SJ/T 11364-2006. - Page 6 CS1182 / CS1184 User Manual General ..........13 Consignes de sécurité...
-
Page 7: About This Manual
CS1182 / CS1184 User Manual About This Manual This User Manual is provided to help you get the most from your CS1182 / CS1184 system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below. -
Page 8: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 9: Chapter 1. Introduction
HIDs (keyboards, mouse, speakers, etc.) between multiple computers. Conformity with Protection Profile v2.1 certifies that other USB peripherals cannot be connected to the console ports of the CS1182 / CS1184, and that only a keyboard and mouse are accommodated, therefore providing high-level security, protection and safekeeping of data. -
Page 10: Features
CS1182 / CS1184 User Manual Features 2/4-port USB DVI Dual-Link Secure KVM Switch Port selection via Pushbutton only (OSD, hotkey methods are not allowed) to enhance security One USB console controls 2/4 secure computers NIAP-certified – validated to EAL2+ security requirements Restricted USB connectivity –... -
Page 11: Requirements
Chapter 1. Introduction Requirements Console DVI monitor capable of the highest resolution that you will be using on any computer in the installation USB mouse USB keyboard Microphone and speaker Computers A DVI card USB Type A ports keyboard and mouse ports Cables The DVI-D KVM cable sets which are specifically designed to work with this switch are not supplied in the package and require a separate purchase. -
Page 12: Operating Systems
CS1182 / CS1184 User Manual Operating Systems Suggested operating systems are shown in the table, below: Version Windows 2000, 2003, 2008, XP, Vista Linux RedHat 9.0 and higher, Fedora Core 4 and higher SuSE 10 and higher Debian 3.1, 4.0 Ubuntu 7.04, 7.10... -
Page 13: Components
Front View Rear View Note: The CS1184 has been used in these illustrations. The front and rear panels of the CS1182 and the CS1184 are the same, except the CS1182 has two ports/port selection pushbuttons and the CS1184 has four. - Page 14 Note: The Selected LEDs will flash constantly when a chassis intrusion is detected. See Chassis Intrusion Detection, page 12 for further details. Reset Button Press this to reset the CS1182 / CS1184 to the default settings. Audio Ports The cables from your main speakers and main microphone plug in here.
-
Page 15: Chapter 2. Hardware Setup
(DVI, USB and audio). Stacking The CS1182 / CS1184 features a rugged, metal enclosure which provides stability and allows the unit to stacked on the desktop.The unit can be placed on any level surface that can safely support its weight and the weight of the attached cables. -
Page 16: Grounding
To prevent damage to your installation it is important that all devices are properly grounded. Use a grounding wire to ground the CS1182 / CS1184 by connecting one end of the wire to the grounding terminal, and the other end of the wire to a suitable... -
Page 17: Cable Connection
6. Check that the USB seal is still attached to the CAC reader port to prevent unintended usage. 7. Plug the female end of the power cord into the CS1182 / CS1184's power socket; plug the male end into an AC power source. -
Page 18: Installation Diagram
CS1182 / CS1184 User Manual Installation Diagram Rear View USB DVI KVM Cable Set USB DVI KVM Cable Set Front View... -
Page 19: Chapter 3. Operation
KVM. Port ID Numbering Each KVM port on the CS1182 / CS1184 is assigned a port number (1–2 for the CS1182; 1–4 for the CS1184). The port numbers are marked on the rear of the switch. See Rear View, page 5. The port ID of a computer is derived from the KVM port number it is connected to. -
Page 20: Chassis Intrusion Detection
KVM. Chassis Intrusion Detection To help prevent malicious tampering with the CS1182 / CS1184, the switch becomes inoperable and the Selected LEDs flash constantly when a chassis intrusion, such as the cover being removed, is detected. -
Page 21: Appendix
Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 22 CS1182 / CS1184 User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 23: Consignes De Sécurité
Appendix Consignes de sécurité Général Ce produit est destiné exclusivement à une utilisation à l’intérieur. Veuillez lire la totalité de ces instructions. Conservez-les afin de pouvoir vous y référer ultérieurement. Respectez l’ensemble des avertissements et instructions inscrits sur l’appareil. Ne placez jamais l’unité sur une surface instable (chariot, pied, table, etc.). Si l’unité... - Page 24 CS1182 / CS1184 User Manual L’équipement doit être installé à proximité de la prise murale et le dispositif de déconnexion (prise de courant femelle) doit être facile d’accès. La prise murale doit être installée à proximité de l’équipement et doit être facile d’accès.
- Page 25 Appendix L’unité a été exposée à la pluie ou à l’eau. L’unité est tombée ou le boîtier a été endommagé. Les performances de l’unité sont visiblement altérées, ce qui indique la nécessité d’une réparation. L’unité ne fonctionne pas normalement bien que les instructions d’utilisation soient respectées.
-
Page 26: Technical Support
CS1182 / CS1184 User Manual Technical Support International For online technical support – including troubleshooting and documentation: http://eservice.aten.com For telephone support, See Telephone Support, page iii: North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support... -
Page 27: Specifications
Appendix Specifications Function CS1182 CS1184 Computer Connections Port Selection Pushbutton Connectors Console Keyboard 1 x USB Type-A F (Black) Video 1 x DVI-I Dual Link F (White) Mouse 1 x USB Type-A F (Black) Audio Speaker 2 x Mini Stereo Jack F (Green;1 x front panel,1 x rear... -
Page 28: Limited Warranty
CS1182 / CS1184 User Manual Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION. - Page 29 Index Manual Switching, 11 Port ID Numbering, 11 Cables, 9 Cable Connection, 9 Components, 5 Online front view, 5 Registration, iii LEDs, 6 Port LEDs, 6 rear view, 5 Port ID Numbering, 11 Powering On, 11 desktop mounting, 7 Requirements, 3 cables, 3 Features, 2 computer, 3...
