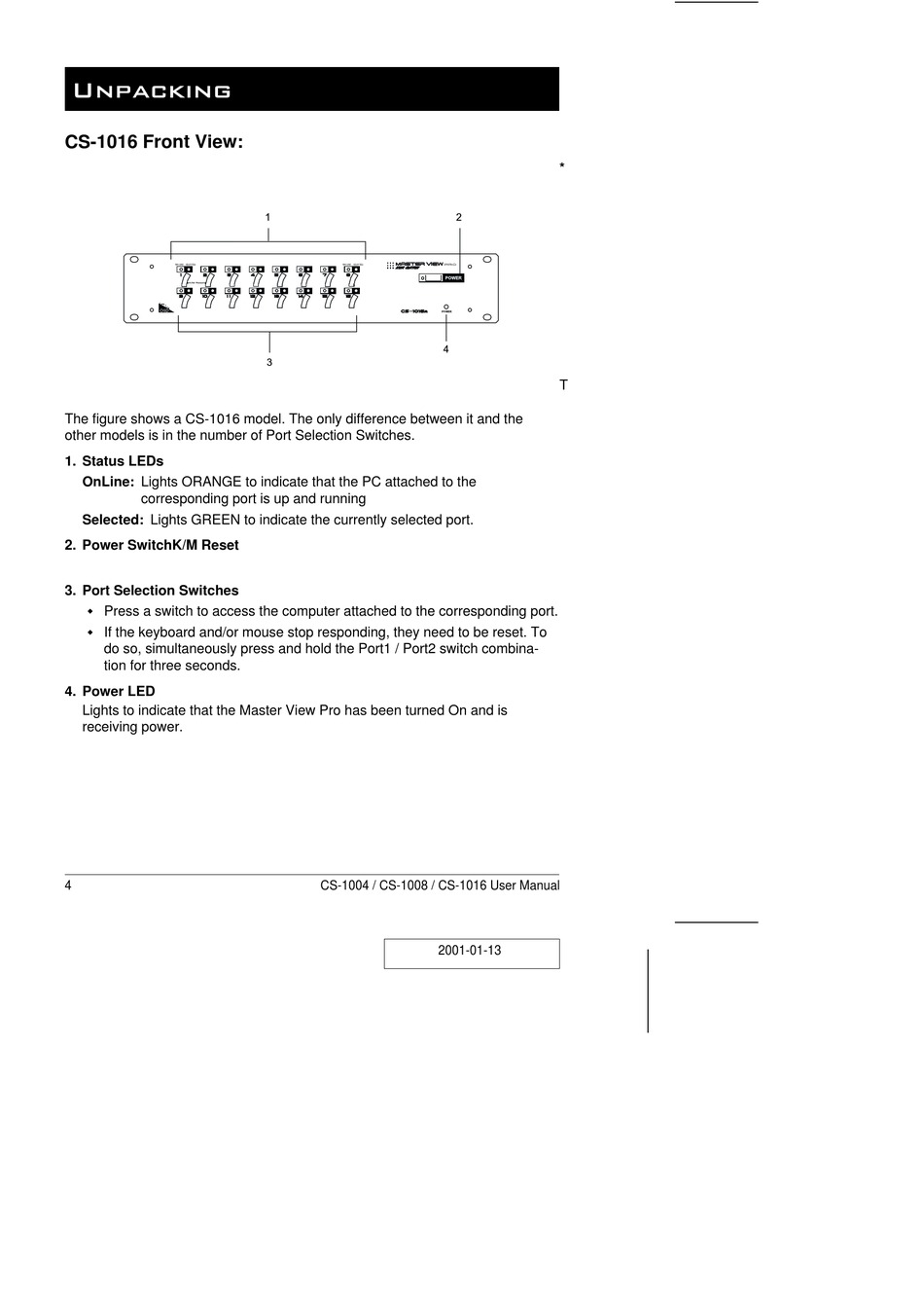

Unpacking; Cs-1016 Front View - ATEN Master View CS-1004 User Manual

CS-1016 Front View:

The figure shows a CS-1016 model. The only difference between it and the
other models is in the number of Port Selection Switches.
1. Status LEDs
OnLine: Lights ORANGE to indicate that the PC attached to the
corresponding port is up and running
Selected: Lights GREEN to indicate the currently selected port.
2. Power SwitchK/M Reset
3. Port Selection Switches
w
Press a switch to access the computer attached to the corresponding port.
w
If the keyboard and/or mouse stop responding, they need to be reset. To
do so, simultaneously press and hold the Port1 / Port2 switch combina-
tion for three seconds.
4. Power LED
Lights to indicate that the Master View Pro has been turned On and is
receiving power.
