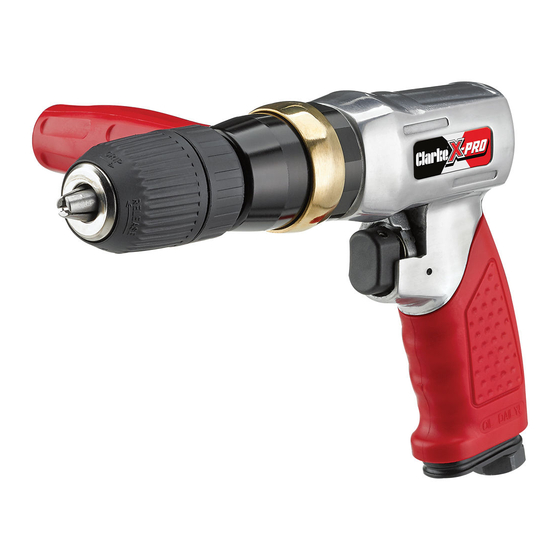

- Page 1 1/2”REVERSIBLE AIR DRILL MODEL NO: CAT158 PART NO: 3120172 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0217...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Reversible Air Drill. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
-
Page 3: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair out of the way. - Page 4 • Moving to another work area. • Passing the drill to another person. 14. Never use the drill if it is defective or operating abnormally. 15. The drill should be serviced if required by qualified service personnel. 16. Avoid damaging the drill for example by applying excessive force of any kind.
- Page 5 OVERVIEW NO DESCRIPTION NO DESCRIPTION Auxiliary Handle Air Exhaust Outlet Forward/Reverse Switch Trigger 1/4” BSP female air inlet Keyless Chuck Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 6: The Compressed Air Supply
THE COMPRESSED AIR SUPPLY AIR SUPPLY REQUIREMENTS WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND A COMPRESSED AIR SUPPLY. • Use only clean, dry, regulated compressed air as a power source. •... -
Page 7: Before Use
7. Ensure the trigger is NOT depressed when connecting the air line. • Your drill is now ready for use • You can fit a whip hose with a quick fit coupling if required (available from your Clarke dealer.) Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 8: Fitting The Handle
FITTING THE HANDLE The drill is supplied with an auxiliary handle. To install it proceed as follows. 1. Slide the clamping ring over the body of the drill, ensuring it rests against the flat shoulder shown. 2. Twist the handle to tighten the clamping ring around the drill body. -
Page 9: Operation
OPERATION OPERATING THE DRILL 1. Squeeze the trigger to start the drill. 2. Release the trigger to stop the drill. 3. To change the direction of rotation move the lever behind the trigger from F to R. 4. Always ensure the drill has stopped before putting it down. - Page 10 STORAGE If the drill is to be stored or is idle for longer than 24 hours, run a few drops of Clarke air-line oil into the air inlet and depress the trigger in order to lubricate the internal parts. When not in use, the drill should be disconnected from the air supply and stored in a dry place out of the reach of children.
-
Page 11: Troubleshooting
2. Motor parts worn. 2. Return to Clarke dealer for repair. 3. Worn or sticking 3. Drip air tool lubricating mechanism due to oil into air inlet. Allow oil lack of lubricant. -
Page 12: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 13: Parts List
PARTS LIST Description No Description Main Housing Front Plate Bolt Bushing Muffler Cover Middle Gear Gasket Minor Gear Air Inlet O-ring Gear Carrier O-ring Primary Gear Valve Stem Spindle O-ring Gear Ring Screw Bearing Forward/Reverse Lever Clamp Nut Spring Washer Set Screw Keyless Chuck Trigger... -
Page 14: Specification
1.7 kg Please note that the details and specifications contained herein are correct at the time of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
