T E C H N O L O G I E S
User Guide

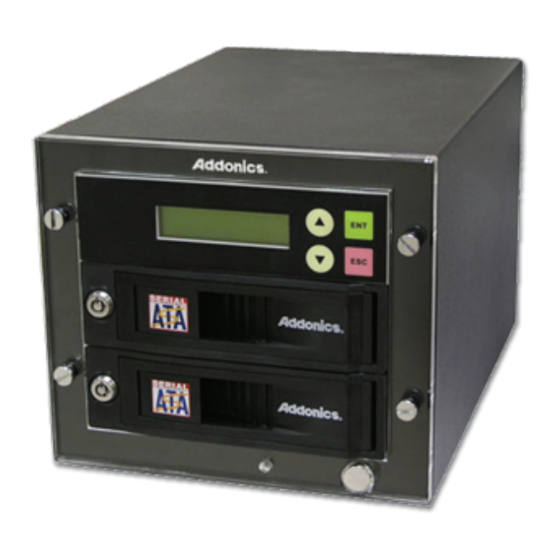

HDD Duplicator Deluxe
(
)
HDUS325DX
www.addonics.com
Technical Support
If you need any assistance to get your unit functioning properly, please have
your product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/

Advertisement

loading

Related Manuals for Addonics Technologies HDUS325DX

Summary of Contents for Addonics Technologies HDUS325DX

  • Page 1 T E C H N O L O G I E S User Guide HDD Duplicator Deluxe HDUS325DX www.addonics.com Technical Support If you need any assistance to get your unit functioning properly, please have your product information ready and contact Addonics Technical Support at:...
  • Page 2 Drive Installation The top enclosure houses the SOURCE drive and the bottom enclosure houses the TARGET drive. To install drives, unlock the enclosure using the provided key and gently pull the lever until the door swings open. For 3.5” installation, insert the drive with the SATA connectors to the rear and the label side up as shown.
  • Page 3 To install a 2.5” drive into the Snap-In 25 adapter: Step 1. Gently squeeze the latches on the Snap-In 25 tray and slide it out of the enclosure. Latches Step 2. Gently pull the drive retainer clips outward on the tray while inserting the drive from the top.

  • Page 4: Quick Start

    Step 3. Slide the tray back into the enclosure until the latches snap into place. Quick Start Note: Make sure the TARGET drive is equal to or larger than the SOURCE drive's capacity. After installing the drives and turning on the Unit, the duplicator will beep, wait for a set delay and display its firmware version.
  • Page 5 Connecting the Power Cable and Powering On a. Connect the power cord provided from the wall outlet to the back of the tower. b. Push the power button to turn on the HDD duplicator. The Duplicator Panel There are four buttons and an LCD on the panel of HDD Duplicator.

  • Page 6: Main Menu

    Main Menu: 1. Copy HDD Scans the ports, then copies from the source to any targets found. 2. Compare HDD Scans the ports, then any targets found will be compared to the source. 3. PreScan Source Reads all blocks on the source drive to confirm no I/O errors are encoun- tered.
  • Page 7 Setup Options: 6-01. Language Use this option to select the language of the system, currently only English is supported. 6-02. Copy Size Controls how much of the source drive to use for copy operations, in percent- age. Default setting is ALL (100%). 6-03.
  • Page 8 NOTE: This function scans the entire disk before proceeding. Providing a drive that is as small as possible is strongly recommended. 9-04. Compare Firmware Used to confirm correct firmware. Connect a drive formatted as FAT contain- ing one partition with the firmware file in the root directory. NOTE: This function scans the entire disk before proceeding.
