Installation

Installing the Lamp

The Showtec Sunstrip Active uses the 240V/75W GU10 (82382) bulb as manufactured by all popular
manufacturers. Use only the appropriate lamp for your unit. 10 Lamps included.
Note that, product versions that use other lamps, may be offered in the future. Check your product
specification label for information.
Always disconnect from electric mains power supply before changing lamps.
The lamp has to be replaced when it is damaged or deformed due to the heat.
Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the
device was not designed for.
Damages caused by non-observance are not subject to warranty.
Procedure :

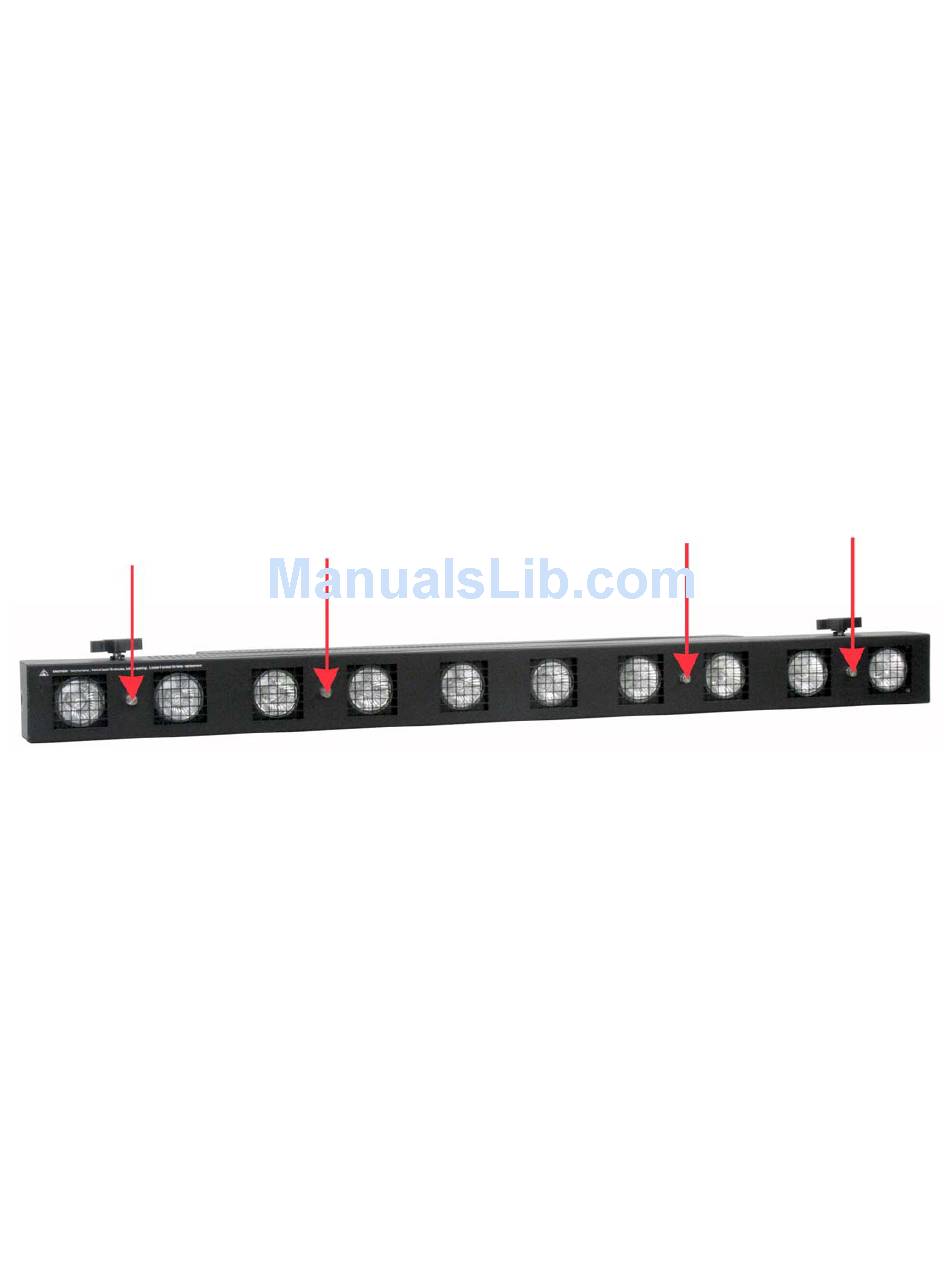

1. Loosen the 4 screws on the front of the housing.
2. Gently remove the metal housing.
3. Read lamp instructions. Do not touch the lamp bulb glass. Push and turn the lamp Counter Clockwise and
remove the lamp. Oil on hands shortens the lamp life. (If you touch the bulb glass, wipe off the glass with
a clean, lint-free towel and rubbing alcohol.).
4. Insert the lamp pins into the small holes in the lamp socket,. Push and turn Clockwise to install the lamp.
Do the same for the remaining lamps.
5. Put the metal housing back and fasten the screws snugly.
6
Fig. 3
