Description of the device
Features
The Showtec Sunstrip Active DMX is a light effect with high output and great effects.
• DMX-control via standard DMX-controller
• 1, 2, 5 or 10 DMX-control channels required depending on your setup
• 16 built-in programs subject to Speed and Dimmer, except for Auto & Full
• 0-100% dimming level
• 01 –99 Chase speed adjustment
• Power Failure Memory
• Fuse Protection
• Powercon in- and output
• Mounting/Floor brackets included
• Built-in Dimmerpack
• 10x Showtec Lamp 240V/75W GU10 (82382) Included !
• Fuse T6,3A / 250V

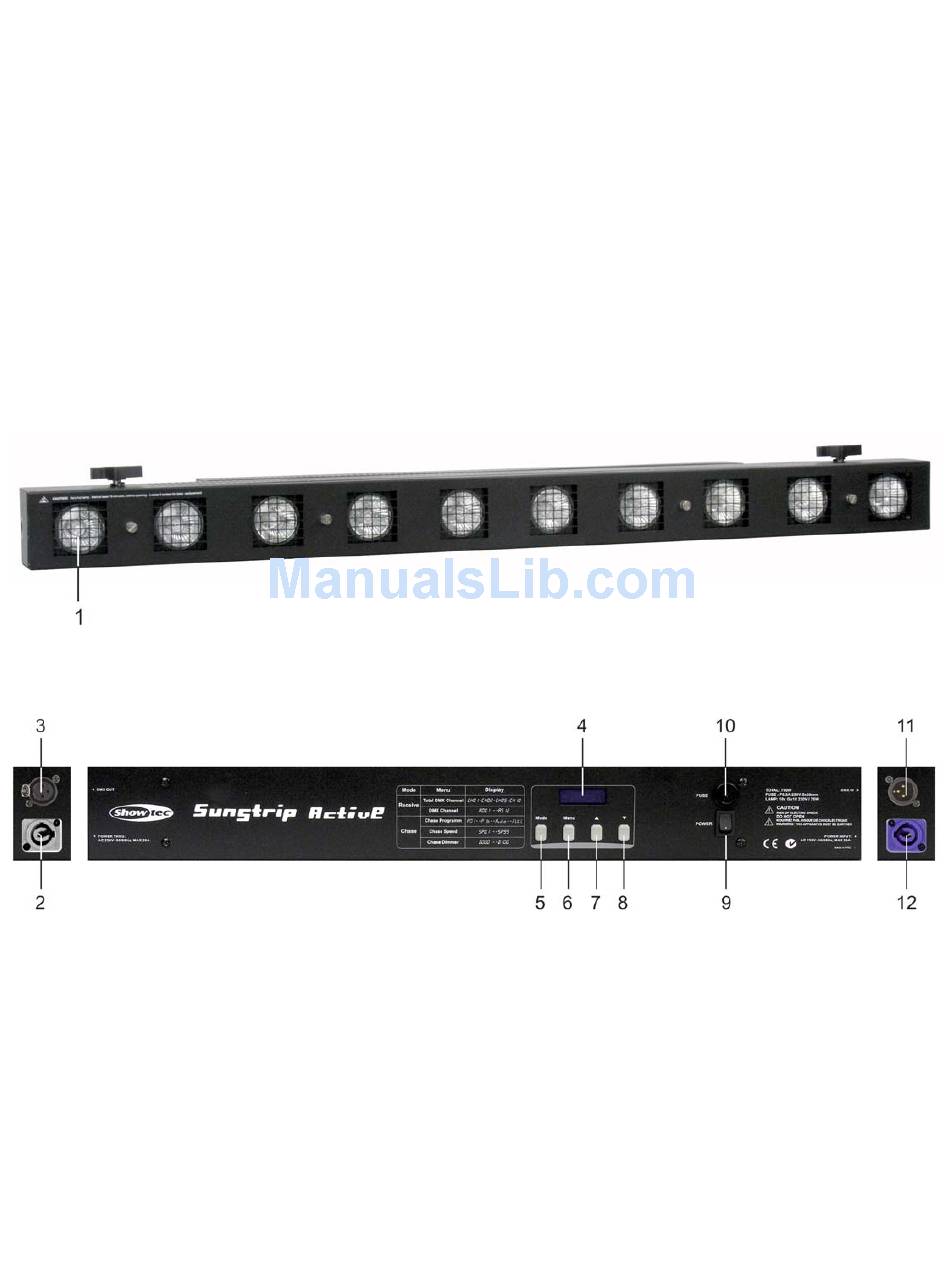

Overview
1) 10x Showtec Lamp 240V/75W GU10 (82382)
2) Power Thru (Grey): This connector sends the power to the next unit (Max 20A).
3) DMX signal connector (OUT): This connector sends the DMX signal to the next unit.
4) LED Display
5) Mode Button
6) Menu Button
7) Up Button
8) Down Button
9) Power On/Off
10) Fuse; 6,3A 250V 5*20mm
11) DMX signal connector (IN): This connector accepts the DMX input signal.
12) Power Input (Blue): This connector is the input power for this unit (Max 20A).
5
Fig. 1
Fig. 2
