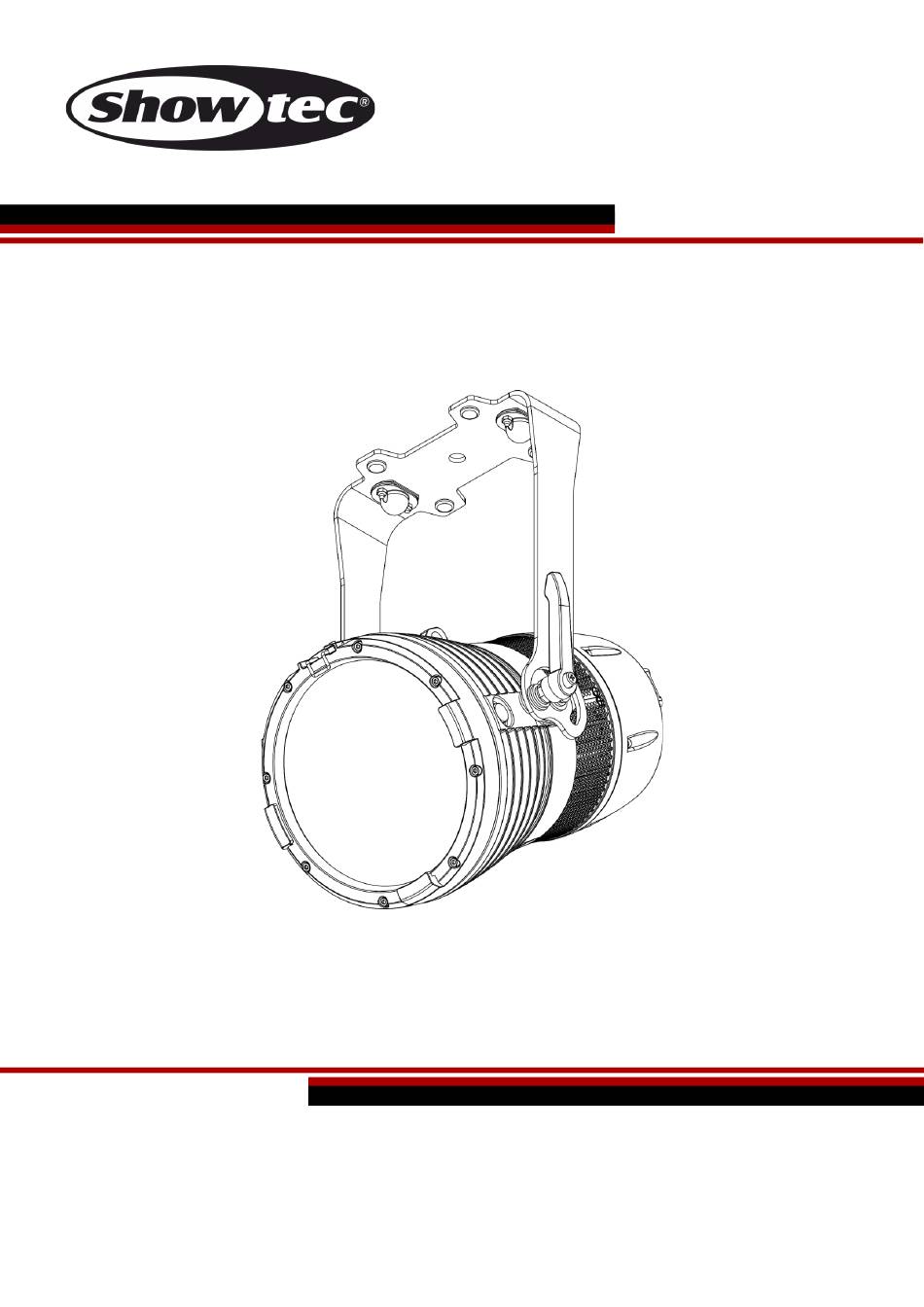

- Page 1 USER MANUAL ENGLISH Spectral Revo Tungsten IP65 Product code: 43642 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Spectral Revo Tungsten IP65 Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Spectral Revo Tungsten IP65 Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 LEDs Lifespan ............................... 4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety .................................. - Page 4 Spectral Revo Tungsten IP65 DMX Channels ..............................28 UNO (1 Channel), DOS (2 Channels) ......................28 VW.D (3 Channels), VW.F (6 Channels), STD.P (8 Channels) ..............28 Supported RDM PIDs (Parameter IDs) ......................29 Troubleshooting ..............................30 Maintenance ..............................31 Safety Instructions for Maintenance ......................31 Preventive Maintenance ..........................31 Basic Cleaning Instructions ........................32 Corrective Maintenance ..........................32...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Spectral Revo Tungsten IP65 ● Schuko to Seetronic power cable (1,5 m) ● Safety cable ●... -
Page 6: Symbols And Signal Words
Spectral Revo Tungsten IP65 Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Safety
Spectral Revo Tungsten IP65 Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions DANGER Danger for children For adult use only. - Page 8 Spectral Revo Tungsten IP65 WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. Attention Power supply ● Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device.
-
Page 9: Requirements For The User
Spectral Revo Tungsten IP65 Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. ● The safety devices are not damaged. ●... -
Page 10: Description Of The Device

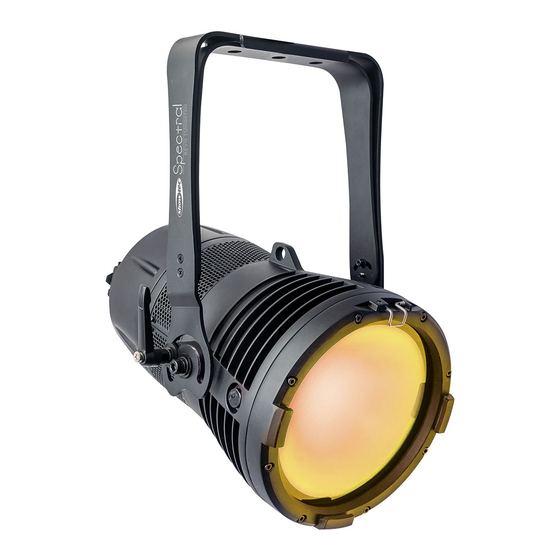

Spectral Revo Tungsten IP65 Description of the Device The Showtec Spectral Revo Tungsten IP65 is an IP65-rated outdoor spot. It is equipped with a dual color LED engine with tunable CCT between 2700 K and 4500 K. Front View 01) 2 x Mounting holes for quick lock bracket... -
Page 11: Product Specifications
Spectral Revo Tungsten IP65 Product Specifications Model: Spectral Revo Tungsten IP65 Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 145 W Physical: Dimensions: 425 x 320 x 219 mm (L x W x H) (including bracket) Weight: 6,2 kg Optics: Light source: 140 W LED module... -
Page 12: Dimensions
Spectral Revo Tungsten IP65 Dimensions Fig. 04 Fig. 05 Fig. 06 Product code: 43642... -
Page 13: Installation
Spectral Revo Tungsten IP65 Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. Personal Protective Equipment During installation and rigging wear personal protective equipment in compliance with the national and site-specific regulations. -
Page 14: Rigging
Spectral Revo Tungsten IP65 Rigging The device can be positioned on a flat surface or mounted to a truss or other rigging structure. Make sure that all loads are within the pre-determined limits of the supporting structure. CAUTION Restrict the access under the work area during rigging and/or derigging. To mount the device, follow the steps below: 01) Use a clamp to attach the device to the supporting structure, as shown in Fig. -
Page 15: Angle Adjustment
Spectral Revo Tungsten IP65 Angle Adjustment You can adjust the angle of the device with the 2 adjustment screws (03). 01) Turn the adjustment screws (03) counterclockwise to release them. 02) Tilt the device at the desired angle (see Fig. 08). 03) Turn the adjustment screws (03) clockwise to tighten them. -
Page 16: Connecting To Power Supply
Spectral Revo Tungsten IP65 Connecting to Power Supply DANGER Electric shock caused by short-circuit The device accepts AC mains power at 100–240 V and 50/60 Hz. Do not supply power at any other voltage or frequency to the device. This device falls under IEC protection class I. Make sure that the device is always electrically connected to the ground (earth). -
Page 17: Setup
Spectral Revo Tungsten IP65 Setup Warnings and Precautions DANGER Electric shock caused by short-circuit This device is IP65 rated. ● Do not expose the device to conditions that exceed the rated IP class conditions. ● Keep the connectors sealed with the rubber caps when the connectors are not in use. ●... -
Page 18: Dmx Cables
Spectral Revo Tungsten IP65 DMX Cables Shielded twisted-pair cables with 5-pin XLR connectors must be used for reliable DMX connection. You can purchase DMX cables directly from your Highlite International dealer or make your own cables. If you use XLR audio cables for DMX data transmission, this may lead to signal degradation and unreliable operation of the DMX network. -
Page 19: Dmx Linking
Spectral Revo Tungsten IP65 DMX Linking To connect multiple devices on one DMX data link, follow the steps below: Use a 5-pin DMX cable to connect the DMX OUT connector of the lighting controller to the DMX IN connector of the first device. 02) Connect the first device’s DMX OUT connector to the second device’s DMX IN connector with a 5-pin DMX cable. -
Page 20: Operation
Spectral Revo Tungsten IP65 Operation Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is intended for professional use as an outdoor spot. It is not suitable for households and for general lighting. -
Page 21: Control Panel
Start-up Upon start-up the display will show a splash screen with the Showtec logo. By default the display of the device is locked. To unlock the display and access the main menu, you need to enter the password: 01) Press and hold the MENU button for 6 seconds to light up the display. -
Page 22: Menu Overview
Spectral Revo Tungsten IP65 Menu Overview Product code: 43642... - Page 23 Spectral Revo Tungsten IP65 Product code: 43642...
-
Page 24: Main Menu Options
Spectral Revo Tungsten IP65 Main Menu Options The main menu has the following options: 01) Press the UP/DOWN buttons to navigate through the main menu. 02) Press the ENTER button to open the submenus. Note: ● Some of the submenus require a password. The default password is pressing the UP/DOWN buttons in the following order: UP, DOWN, UP, DOWN. -
Page 25: Dmx Address
Spectral Revo Tungsten IP65 DMX Address In this menu you can set the DMX starting address of the device. Press the UP/DOWN buttons to select the DMX starting address of the device. The selection range is 001–512. 02) Press the ENTER button to save the changes. Run Mode In this menu you can set the control mode of the device. -
Page 26: Settings
Spectral Revo Tungsten IP65 Settings In this menu you can adjust the device’s settings. This menu requires a password. The default password is pressing the UP/DOWN buttons in the following order: UP, DOWN, UP, DOWN. 01) Enter the password. 02) Press the ENTER button to confirm the password and access the menu. 03) Press the UP/DOWN buttons to select one of the following 8 options: ●... -
Page 27: Reset
Spectral Revo Tungsten IP65 Reset In this submenu you can restore the default factory settings of the device. This submenu requires a password. The default password is pressing the UP/DOWN buttons in the following order: UP, DOWN, UP, DOWN. 01) Enter the password. 02) Press the ENTER button to confirm the password and start the reset. -
Page 28: Cct Calibration
Spectral Revo Tungsten IP65 ● CCT: See 6.6.7.1. CCT Calibration ● CALR: See 6.6.7.2. Calibration Reset 04) Press the ENTER button to confirm the selection. CCT Calibration In this submenu you can calibrate the warm white and natural white values for each predefined color temperature. -
Page 29: Dmx Channels
Spectral Revo Tungsten IP65 DMX Channels UNO (1 Channel), DOS (2 Channels) Function Value Setting 1 CH 2 CH Master Dimmer 000–255 From low to high intensity (0–100 %) Master Dimmer Fine 000–255 Fine adjustment VW.D (3 Channels), VW.F (6 Channels), STD.P (8 Channels) VW.D VW.F STD.P... -
Page 30: Supported Rdm Pids (Parameter Ids)
Spectral Revo Tungsten IP65 Supported RDM PIDs (Parameter IDs) Parameter ID Discovery command SET command GET command DISC_UNIQUE_BRANCH DISC_MUTE DISC_UN_MUTE DEVICE_INFO SUPPORTED_PARAMETERS SOFTWARE_VERSION_LABEL DMX_START_ADDRESS IDENTIFY_DEVICE DEVICE_MODEL_DESCRIPTION MANUFACTURER_LABEL DEVICE_LABEL SENSOR_DEFINITION SENSOR_VALUE DEVICE_RESET DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION STATUS_MESSAGES STATUS_ID_DESCRIPTION Product code: 43642... -
Page 31: Troubleshooting
Spectral Revo Tungsten IP65 Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 32: Maintenance
Spectral Revo Tungsten IP65 Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: ●... -
Page 33: Basic Cleaning Instructions
Spectral Revo Tungsten IP65 Basic Cleaning Instructions The external lens of the device must be cleaned periodically in order to optimize the light output. The cleaning schedule depends on the conditions at the site where the device is installed. When smoke or fog machines are used at the site, the device will need more frequent cleaning. -
Page 34: Deinstallation, Transportation And Storage
Spectral Revo Tungsten IP65 Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 35 Spectral Revo Tungsten IP65 Product code: 43642...
