Kingsman IDV26 Installation Instructions Manual

Kingsman IDV26 Installation Instructions Manual

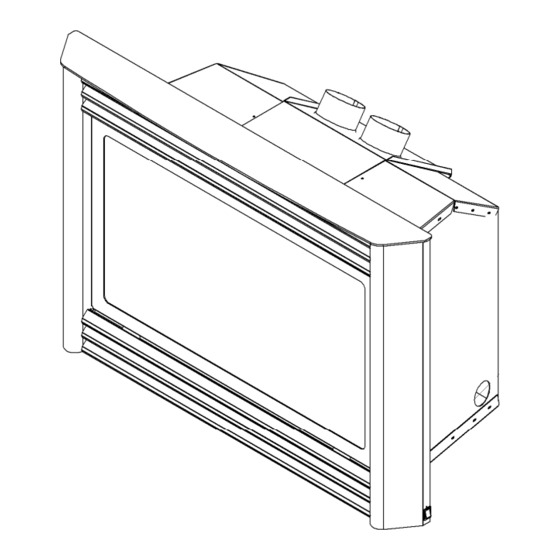

Gas fired direct vent room heater inserts
Table of Contents

Advertisement

Model Numbers:
IDV26 –
Stock Numbers: IDV26N, IDV26LP, IDV26NE,IDV26LPE
Minimum Fireplace Opening Required: 33"W x 19-1/2"H x 14-1/4"D Components In
IDV33
- Stock Numbers: IDV33N, IDV33NE, IDV33LP, IDV33LPE
Minimum Fireplace Opening Required: 26-1/4"W x 21-3/8"H x 14-3/8"D
IDV36 –
Stock Numbers: IDV36N, IDV36NE, IDV36LP, IDV36LPE
Minimum Fireplace Opening Required: 30-3/4"W x 25-5/8"H x 14-3/8"D
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or
mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certified kit is used.
These instructions must be kept with the unit for future reference.
WARNING: If the information in these instructions is not followed
exactly, a fire or explosion may result causing property damage,
personal injury or loss of life.
Warning: Improper installation, adjustment, alteration, service or
maintenance can cause property damage, personal injury or loss of
life. Refer to this manual. Installation and service must be performed
by a qualified installer, service agency or the gas supplier.
Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
-What To Do If You Smell Gas
 Do not try to light any appliance.
 Extinguish any open flame.
 Do not touch any electrical switch.
 Do not use any phone in your building.
 Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
 If you can not reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
A Division of R-Co. Inc.
2340 Logan Avenue
Winnipeg, Manitoba, Canada R2R 2V3
Ph: (204) 632-1962
Printed in Canada March 14, 2014 Part # 26IDV-MAN

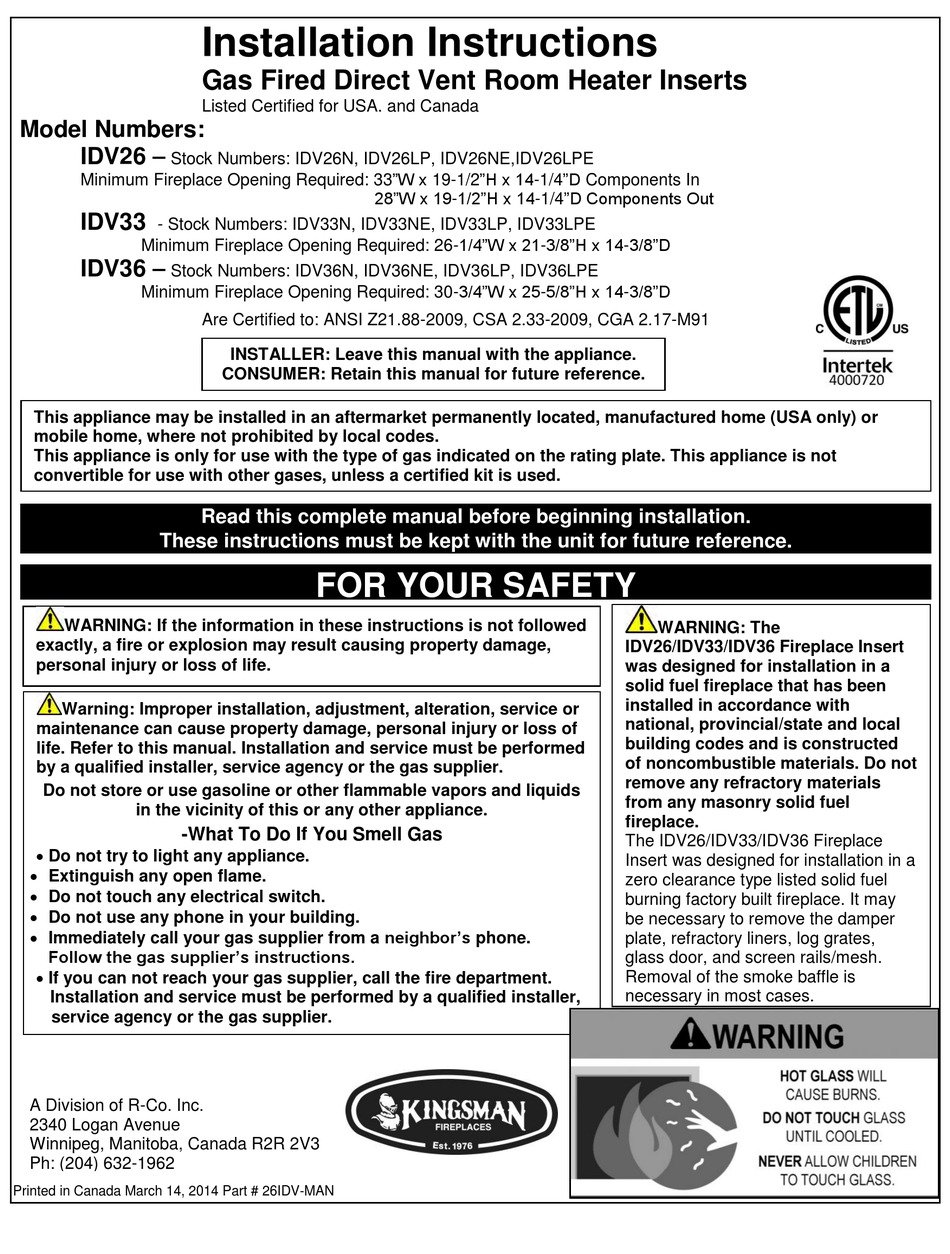

Installation Instructions

Gas Fired Direct Vent Room Heater Inserts
Listed Certified for USA. and Canada
28"W x 19-1/2"H x 14-1/4"D Components Out
Are Certified to: ANSI Z21.88-2009, CSA 2.33-2009, CGA 2.17-M91
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Read this complete manual before beginning installation.
FOR YOUR SAFETY
WARNING: The
IDV26/IDV33/IDV36 Fireplace Insert
was designed for installation in a
solid fuel fireplace that has been
installed in accordance with
national, provincial/state and local
building codes and is constructed
of noncombustible materials. Do not
remove any refractory materials
from any masonry solid fuel
fireplace.
The IDV26/IDV33/IDV36 Fireplace
Insert was designed for installation in a
zero clearance type listed solid fuel
burning factory built fireplace. It may
be necessary to remove the damper
plate, refractory liners, log grates,
glass door, and screen rails/mesh.
Removal of the smoke baffle is
necessary in most cases.
