Kingsman Marquis IDV33 Installation Instructions Manual

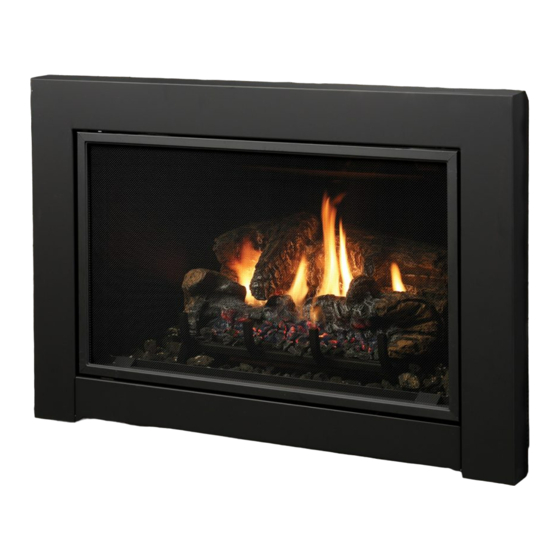

Gas fireplace insert heater
Hide thumbs Also See for Marquis IDV33:
Table of Contents

Advertisement

Quick Links

Download this manual
Model Numbers:
IDV34 - Stock Numbers: IDV34N, IDV34NE, IDV34NE2, IDV34LP, IDV34LPE, IDV34LPE2
Minimum Fireplace Opening Required: 28-5/8"W x 21-1/2"H x 17-3/4"D
–
IDV44
Stock Numbers: IDV44N, IDV44NE, IDV44NE2, IDV44LP, IDV44LPE, IDV44LPE2
Minimum Fireplace Opening Required: 32-7/8"W x 25-3/4"H x 18"D
Are Certified to: ANSI Z21.88-2017 • CSA 2.33-2017, CSA 2.17-2017
Installation Instructions
Gas Fireplace Insert Heater
Listed Certified for USA. and Canada
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
This appliance is only for use with the type of
gas indicated on the rating plate. This appliance
is not convertible for use with other gases,
unless a certified kit is used.
⚠
WARNING: The IDV34 / IDV44 Fireplace Insert
was designed for installation in a solid fuel
fireplace that has been installed in accordance
with national, provincial / state and local building
codes and is constructed of noncombustible
materials. Do not remove any refractory materials
from any masonry solid fuel fireplace.
The IDV34 / IDV44 Fireplace Insert was designed for
installation in a zero clearance type listed solid fuel
burning factory built fireplace. It may be necessary to
remove the damper plate, refractory liners, log grates,
glass door, and screen rails/mesh. Removal of the
smoke baffle is necessary in most cases.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
VENTED GAS FIREPLACE HEATER:
NOT FOR USE WITH SOLID FUEL.
CAPRI
local codes.
A Division of R-Co. Inc.
2340 Logan Avenue
Winnipeg, Manitoba, Canada R2R 2V3
Ph: (204) 632-1962
Printed in Canada January 7, 2021
Part # 34IDV-MAN17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Marquis IDV33 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kingsman Marquis IDV33

Summary of Contents for Kingsman Marquis IDV33

  • Page 1 Installation Instructions Gas Fireplace Insert Heater Listed Certified for USA. and Canada Model Numbers: IDV34 - Stock Numbers: IDV34N, IDV34NE, IDV34NE2, IDV34LP, IDV34LPE, IDV34LPE2 Minimum Fireplace Opening Required: 28-5/8”W x 21-1/2”H x 17-3/4”D – IDV44 Stock Numbers: IDV44N, IDV44NE, IDV44NE2, IDV44LP, IDV44LPE, IDV44LPE2 Minimum Fireplace Opening Required: 32-7/8”W x 25-3/4”H x 18”D CAPRI Are Certified to: ANSI Z21.88-2017 •...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents............................... Safety Screen Installation............................Pre-installation Questions and Answers........................Operations and Maintenance Instructions........................Annual Inspection List..............................Important Information..............................Warnings, Installations and Operations........................Installation Requirements for the Commonwealth of Massachusetts................. Mobile Home/Manufactured Housing Installation....................... IDV34 Section IDV34 Fireplace Openings and Dimensions………………………………………………………………………………... IDV34 Clean Views and Surround Options.........................
  • Page 3 Gas Conversion for Top Convertible Pilot – Part B....................Gas Conversion for Modulator – PART C........................Gas Line Installation..............................Millivolt System, Lighting, and Burner Control......................Troubleshooting the Gas Control System........................Remote Control Operation............................Proflame 1 IPI Overview / Components............................. Junction Box Location..............................IPI Electronic Ignition Parts List –...

  • Page 4: Safety Screen Installation

    Safety Screen Installation- IDV34 / IDV44 – CV1BL & MQCV2BL Kits SAFETY SCREENS ARE SUPPLIED IN CV1BL, MQCV2BL, & I34CV6BL Kits ⚠ WARNING: Wait until unit is COMPLETELY cool before touching glass or attempting to install or remove Child Safety Screens. To Install Screen: Insert Hooks on Safety Screen into Slots in Glass Door Frame.

  • Page 5: Pre-Installation Questions And Answers

    Pre-installation Questions and Answers About curing of the paint Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20 minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure when heat is applied to the appliance as it is first used.

  • Page 6: Annual Inspection List

    Annual Inspection List for Determining Safe Operation of a Direct Vent Gas Fireplace Refer to this checklist for proper maintenance, safe use, and operation. See each section for more specific information. 1. Inspect and operate all pressure relief mechanisms (i.e., explosion dampers, spring loaded door latches) installed on your appliance to verify relief mechanisms are free from obstruction to operate.

  • Page 7: Important Information

    Important Information INSTALLATIONS  The following label (supplied with the gas fireplace insert) must be attached with rivets or screws to the inside of the firebox of the fireplace into which it is installed:  Cutting any sheet-metal parts of the fireplace, in which the gas fireplace insert is to be installed, is prohibited.

  • Page 8: Warnings, Installations And Operations

    Warnings, Installations and Operations - Installation Regulations This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the current CAN/CSA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1- NFPA 54 when installed in the United States.

  • Page 9: Installation Requirements For The Commonwealth Of Massachusetts

    Installation Requirements for the Commonwealth of Massachusetts In the Commonwealth of Massachusetts, the installer or service agent shall be a plumber or gas fitter licensed by the Commonwealth. When installed in the Commonwealth of Massachusetts or where applicable codes; the unit shall be installed with a CO detector per the requirements listed below.

  • Page 10: Mobile Home/Manufactured Housing Installation

    Mobile Home/Manufactured Housing Installation This Direct Vent System Appliance must be installed in accordance with the manufacturer’s installation instructions and the Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for Fire Safety Criteria for Manufactured Home Installation, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in Canada.

  • Page 11: Idv34 Section Idv34 Fireplace Openings And Dimensions

    IDV34 Fireplace Openings I34CV6 REQUIRED REQUIRED DIMENSION DIMENSION A Front Width 28-5/8” 26-7/8” B Height 21-1/2” 21-1/2” C Depth 17-3/4” 15-3/4” “D” “C” D Back Width 21-1/4 21-1/4 “B” “A” IDV34 Fireplace Dimensions 28-5/8” 28-5/8” 14-1/8” 21-3/8” 25-5/8” 18-1/4” 28-9/16” 26-7/8”...

  • Page 12: Idv34 Clean Views And Surround Options

    IDV34 Clean Views and Surround Options IDV34 Opening Requirements: Width 28-5/8” x Height 21-1/2” x Depth 17-3/4” I34CV1BL I34S3927 I34SPF4131 I34SU4541 C/W Safety Screen WIDTH 35-1/4” 39” 41-1/8” 45” HEIGHT 24-3/16” 27-5/16” 31-3/8” 41” DEPTH 13/16” 1/2” 1/2” 1/16”- To be Custom Cut and Bent MQ34CV2BL I34S3927 I34SPF4131...

  • Page 13: Idv34 Clean Views

    IDV34 Clean Views 1-5/16” I34CV1 WITH I34S3927 1-13/16” 1-5/16” 35-5/8” MQ34CV2 MQ34CV2 WITH I34S3927 2” MQ34CV3 MQ34CV3 WITH WITH MQ34DD1 or I34S3927 MQ34SF1 DOOR 2” MQ34CV4PF MQ34CV4PF WITH WITH MQ34DD1 or I34SPF4131 MQ34SF1 DOOR I34CV6 I34CV6 WITH I34S3927...

  • Page 14: I34Su4541 Universal Surround Worksheet

    I34SU4541 -Universal Surround- IDV34 For use with I34CV1BL, MQ34CV2BL, MQ34CV3BL, MQ34CV4PFBL, and I34CV6BL. This Surround can be custom cut and bent. Cut Surround at dotted line shown above to make the bottom flush with the fireplace bottom.

  • Page 15: Mantel Heights

    IDV34 Mantel Heights I34CV1 Combustible Mantel Heights I34CV1 Only I34CV1 with Mantel or with Surround and I33CS Dimension Depth Surround Mantel Shield 0” 36” 30” 2” 38-1/2” 32” 4” 40-1/2” 34” 6” 42-1/2” 36” 8” 44-1/2” 38” MQ34CV2 Combustible Mantel Heights MQ34CV2 MQ34CV2 with Mantel...

  • Page 16: Idv44 Section Idv44 Fireplace Openings And Dimensions

    IDV44 Fireplace Openings REQUIRED DIMENSION A Front Width 32-7/8” B Height 25-3/4” “D” C Depth 18” D Back Width 25-3/4 “C” “B” “A” IDV44 Fireplace Dimensions...

  • Page 17: Idv44 Clean Views And Surround Options

    IDV44 Clean Views and Surround Options IDV44 Opening Requirements: Width 32-7/8” x Height 25-3/4” x Depth 18” I44CV1BL I44S4432 I44SPF4436 I44SU4742 C/W Safety Screen WIDTH 39-9/16” 44” 44” 47” HEIGHT 28-1/2” 32-1/16” 36” 42” DEPTH 13/16” 1/2” 1/2” 1/16”- To be Custom Cut and Bent MQ44CV2BL I44S4432 I44SPF4436...

  • Page 18: Idv44 Clean Views

    IDV44 Clean Views 1-5/16” I44CV1 WITH I44S4432 1-13/16” 1-5/16” 39-15/16” MQ44CV2 MQ44CV2 WITH I44S4432 39-5/8” 2” 1-7/16” MQ44CV3 WITH MQ44CV3 MQ44DD1 WITH MQ44SF1 DOOR I44S4432 NOTE: Clean View Hooks are adjustable (1/4”) for uneven wall surface.

  • Page 19: I44Su4742 Universal Surround Worksheet

    I44SU4742 -Universal Surround- IDV44 For use with I44CV1BL, MQ44CV2BL, and MQ44CV3BL. This Surround can be custom cut and bent. Cut Surround at dotted line shown above to make the bottom flush with the fireplace bottom.

  • Page 20: Mantel Heights

    IDV44 Mantel Heights ⚠ WARNING: Combustible objects must not be placed on a non-combustible mantel unless the non-combustible mantel meets the minimum height and width requirements for a combustible mantel. I44CV1 Combustible Mantel Heights I44CV1 with I44CV1 Surround Only Mantel or with I33CS Mantel Dimension...

  • Page 21: Wall Coverings, Side Walls And Hearth Requirements

    IDV34 / IDV44 – Wall Coverings, Side Walls and Hearth Requirements Refer to Mantel Heights Charts for your minimum mantel height. Combustible Mantel Line Combustibles must be above Combustible Mantel Line This area must have Non-Combustible Combustible Floor beneath materials ONLY appliance must be Hearth Allowed non-combustible.

  • Page 22: Leveling Instructions / Riser Kit

    Leveling Instructions When installing insert it may be necessary to support back of unit. There are two leveling legs at the back sides of the appliance. Measure the height of the space to be leveled. Remove screws and set leveling legs to proper height. Replace screws.

  • Page 23: Surround Installation

    IDV34 / IDV44 – Surround Installation IDV34 Surrounds: I34S3927, I34SPF4131, 134SU4541 PARTS LIST: -Surround IDV44 Surrounds: I44S4432, I44SPF4436, I44SU4742 - [Qty 4] #6 Black Screws All surrounds attach to the back of the Clean View. CV1 / CV2 Attachment: STEP 2: Fold Tabs on Clean View over STEP 1: surround and install with [4]...

  • Page 24: Clean View Attachment

    IDV34 / IDV44 Clean View Attachment Parts List: I34CV1BL, MQ34CV2BL, I44CV1BL, MQ44CV2BL Note: Vent adapter and venting must be connected -Clean View, Safety Screen to the unit before Clean Views and Surrounds are Parts List: MQ34CV3BL, MQ34CV4PFBL, MQ44CV3BL attached. Refer to Installation of Vent Pipe section of -Clean View only (Requires MQSF1 or MQDD1 Door Frame) this manual for venting information.

  • Page 25: Mqsf1Bl Or Mqdd1Bl Attachment

    MQSF1BL / MQDD1BL - Attachment to MQI34 / MQI44 CV3 or CV4PF MQI34 / I44 SFIBL and MQDD1BL Parts List: Door with Screen MQSF1BL MQDD1BL Door Door Optional Surround NOTE: Clean View Hooks are adjustable (1/4”) for uneven wall surface. MQSF1BL MQDD1BL Clean View...

  • Page 26: I34Cv6 Installation Instructions

    I34CV6 INSTALLATION INSTRUCTIONS PRIOR TO INSTALLATION IT IS RECOMMENDED TO REMOVE GLASS DOOR, CONNECT VENTING, AND POSITION THE APPLIANCE APPROXIMATELY 2-3IN AWAY FROM THE WALL. The CV6 is installed with Mount Hooks pointing forward. PACKAGE CONTAINS To install, slide one end of the Backer Surround behind the appliance post.

  • Page 27: I33Cs -Mantel Clearance Shield

    I33CS Mantel Clearance Shield Instructions Contents of Kit: [1] Mantel Clearance Shield c/w Screws Place I33CS upside down on a protected surface. Loosen screws. Center surround onto I33CS. Tighten screws to hold surround in place. Surround is now ready to install onto Clean View.

  • Page 28: Rlt / Rlh - Brick Liner Panels

    RLT / RLH - Brick Liner Panels- Parts List -1 Back Panel -1 Right Side Panel -1Left Side Panel Brick Clips Preparation 1. Lift Log Supports out of fireplace. 2. Remove the 2 Screws in the Back Panel. 3. Slide and tilt Back Panel to remove. 4.

  • Page 29: Prl- Porcelain Liner Panels

    PRL- Porcelain Liner Panels- Parts List -1 Back Panel -1 Right Side Panel -1Left Side Panel Preparation: 1. Lift Log Supports out of fireplace. 2. Remove the 2 Screws in the Back Panel. 3. Slide and tilt Back Panel to remove. Log Supports Back Panel To Install...

  • Page 30: Log Placement - Logf35 For Idv33/34

    IDV33/34 Log Placement – LOGF35 Rear Log Holder This illustration shows the Rear Log Holder and 4 Log Pins. LOGF35 Log Set. Glowing Embers supplied with appliance. Log A Log B Log A has 2 locating holes. Position those 2 holes over the 2 Log B has 2 locating holes.

  • Page 31: Log Placement - Logf36 For Idv44

    Log Placement – LOGF36 LOGF36 Log Set includes Glowing Embers and Lava Rock. Place Log #1 onto rear log holder and center. Place Log #2 onto left side of Log #1. Place Log #3 onto right Locate 2 holes on bottoms of Logs #4 and #5, and position onto side of Log #1.

  • Page 32: Mqrsp4 / Mqrsp8 Rock And Glass Support Platform

    MQRSP4 / MQRSP8 Rock and Glass Support Platform Installation Base Unit (As Shipped) Preparation: Remove Grate Bar and replace screws. Remove Ember Plates. Do not remove existing Pilot Shield. Installation: Place MQRSP4 or MQRSP8 over burner. MQRSP4 One screw from the Fan Access Cover Plate is all that is required to mount the...

  • Page 33: Mqrock2 / Mqrock3 - Must Use Mqrsp4

    MQROCK2 / MQROCK3 -MQRSP4 IDV26 / IDV33 / IDV43 MQRSP4 Parts List Remove the ember plates and the grate bar by removing the 2 left 1Ea Rock Support and right screws on the grate bar. 1Ea Ember Plates Assembly Reinstall screws after removing parts. Place the MQRSP4 Rock Platform and ember plates into place as Step 1: Place Rocks #4 into position as shown.
  • Page 34 MQROCK2/ MQROCK3 -MQRSP4 for IDV26 / IDV33 / IDV43 (continued) Step 4: Place Rocks #6 into position as shown above. Step 5: Place Rocks #3 into position as shown above. Step 6: Place Rocks #1 into position as shown above. Step 7: Place Rocks #3 and #4 into position as shown above.

  • Page 35: Mqstone - Must Use Mqrsp8

    MQSTONE -Requires- MQRSP8 Optional Decorative Stone Set. Place smaller stones around outside of burner tube. Begin by placing larger stones inside burner tube area. Add smaller stones to center. Cover back and center of burner tube with assorted stones. Pilot Area MUST be visible at ALL times.

  • Page 36: Mq Ember Installation -Mqrsp8 / Rsp10

    MQ EMBER -Requires -MQRSP8 or RSP10 MQ DEALER ONLY Spread glass or ember chunks onto tray and burner. Ensure that layer of glass embers is not excessively thick as this will affect the flame pattern. See below. Pilot Shield* Must Be Kept Clear. MQRSP8 RSP10 (With Glass Retainer in Place) Note: Do not place all the glass embers onto the tray.

  • Page 37: Rsp10 Glass Support Platform

    RSP10 Glass Support Platform -Installation Base Unit (As Shipped) RSP10 Parts List: [1] Tray and [1] Pilot Shield [1] Glass Retainer for IDV34 - 25-1/2" [1] Glass Retainer for IDV44 - 30" [15 LBS] Bronze Glass Embers Preparation: Remove Grate Bar and replace screws. Remove Ember Plates.

  • Page 38: Mqrsp11 Support Platform

    MQRSP11 Support Platform -Installation MQRSP11 Parts List: Base Unit (As Shipped) [1] Tray and [1] Pilot Shield [1] Glass Retainer for IDV34 - 25-1/2" [1] Glass Retainer for IDV44 - 30" [2] Small Bags Lava Rock [1] Bag 350 Ember Preparation: Remove Grate Bar and replace screws.

  • Page 39: Mqlogf33 (34Idv) Or Mqlogf453 (44Idv)

    MQRSP11 With MQLOGF33 (IDV34) or MQLOGF453 (IDV44) Must be used with MQRSP11. NOTE: Lava Rock and 350 Embers supplied with fireplace and MQRSP11. ⚠ WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.
  • Page 40 EMBERS LOG 5 LOG 2 STEP 5: Place LOG 5 in front of LOG 2 as shown. STEP 5: Place 350 Embers on and around burner.

  • Page 41: Mqlogf34 - 8 Piece Log Set

    IDV34 & IDV44 MQLOGF34 - 8 Piece Log Set – Requires MQRSP11 MQRSP11 Installed. Cover Firebox Bottom with Lava Rock. Do not place Logs 2 & 3 over Burner Ports. Place Hole in Log 6 onto Locating Pin of Log 3. Set Logs 4 &...

  • Page 42: Mqrbrw Birchwood Log Set

    IDV34 & IDV44 MQRBRW - Birchwood Log Set – Requires MQRSP11 MQRSP11 Installed. Place Log 4 in between front and rear burner tubes. Setup is complete.

  • Page 43: Mqrbd4 - 3 Piece Driftwood Log Set

    IDV34 / IDV44 - MQRBD4 - 3 Piece Driftwood Log Set — Requires MQRSP11...

  • Page 44: Fan Removal / Installation

    IDV34 / IDV44 Fan Removal / Installation Fan System WARNING Electrical Grounding Instructions This appliance is equipped with a three prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this.

  • Page 45: Door Installation And Removal / Glass Door Information

    IDV34 / IDV44 Glass Door Information Glass Cleaning: During normal startup condensation will form, causing dust and lint to cling to the surface of the glass. A commercial fireplace glass cleaner can be used two or three times a season, depending on use of the appliance. ⚠...

  • Page 46: Gas Section Burner Removal / Installation

    IDV34 / IDV44 Burner Installation/Removal Burner System 1. Remove glass door assembly and logs (if installed). Be careful with logs as they become fragile after being heated. 2. Remove log supports off burner assembly. 3. The burner or burner assembly can now be removed. a.

  • Page 47: Burner System Maintenance

    Burner System Maintenance It is recommended to annually inspect and clean the Burner System to prevent malfunction and / or sooting. This operation should be performed by your dealer or a qualified technician. -CAUTION- Before servicing the burner system ensure that the gas supply is turned OFF and disconnect all electrical connections to the appliance.

  • Page 48: Conversion Kit Instructions - Part A

    Conversion Kit Instructions – PART A Caution The gas supply shall be shut off prior to disconnecting the electrical power, before proceeding with the conversion. PLEASE CONFIRM THAT STEP 4 IS UNDERSTOOD BEFORE PROCEEDING WITH CONVERSION. WARNING: This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer's instructions and all applicable codes and requirements of the authority having jurisdiction.

  • Page 49: Gas Conversion For Top Convertible Pilot - Part B

    Gas Conversion for Top Convertible Pilot – Part B (series 0190XYZ) Instructions for converting SIT 190 series pilot burner injector from NG to LPG and from LPG to NG only. This information should be considered as supplemental to the Appliance Manufacturer's Instructions. WARNING! The installation of this conversion kit must only be undertaken by a qualified and certified gas appliance installer.

  • Page 50: Gas Conversion For Modulator - Part C

    Gas Conversion for Modulator – PART C...

  • Page 51: Gas Line Installation

    Gas Line Installation This gas appliance should be installed by a qualified installer in accordance with local building codes and with current CAN/CSA - B149.1 installation codes for Gas Burning appliances and equipment in Canada and the National Fuel Gas Code ANSI Z223 in the U.S.A.

  • Page 52: Millivolt System, Lighting, And Burner Control

    Millivolt System, Lighting, and Burner Control FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. BEFORE LIGHTING This appliance has a pilot which must be lighted by hand. When ...

  • Page 53: Troubleshooting The Gas Control System

    Troubleshooting the Gas Control System ⚠ WARNING BEFORE DOING ANY GAS CONTROL SERVICE WORK, REMOVE THE GLASS FRONT. NOTE: Before troubleshooting the gas control system, be sure external gas shut off is in the "On" position. Problem Possible Causes Corrective Action Spark igniter will not Defective or misaligned Check for spark at electrode and pilot: if no spark and electrode wire is...

  • Page 54: Remote Control Operation

    IPI Proflame 1 -Remote Control Operation- The Proflame GTM is configured to control the on/off main burner operation, its flame levels, and provides on/off and Smart *thermostatic control of the appliance. Transmitter Remote Receiver Transmitter Room *thermostat ( Transmitter Operation) The Transmitter is powered by 3 AAA type batteries.

  • Page 55: Proflame 1 Ipi Overview / Components

    IPI Electronic Ignition System Overview CPI / IPI The IPI system is an advanced burner controller that Switch provides you with the option of having either a Standing- Cover Pilot, or an intermittent igniting system. This alternating mode is controlled by the CPI/IPI Switch (Continuous Pilot Ignition/Intermittent Pilot Ignition) located on the IPI System Box.

  • Page 56: Junction Box Location

    IPI Electronic Ignition System NOTE: The Remote Receiver module can also be located outside of the appliance to a maximum of 6ft away installed in a certified deep wall switch electrical box (2-3/4” depth). For this configuration an extension wiring harness (P/N: 1001-P904SI) is required. Electrical Supply in Series: The entire IPI system can be powered by a single power source (i.e.

  • Page 57: Ipi Electronic Ignition Parts List - Standard System

    Proflame 1 -IPI System Parts List- PART NO. DESCRIPTION 1006-P002SI Valve IPI Hi/Lo NG 11. 1002-P012SI IPI Stepper Kit - LP 907.012 1006-P003SI Valve IPI Hi/Lo LP 12. 1002-P013SI IPI Stepper Kit - NG 907.013 1002-P302SI IPI Ignition Board 13. 1002-P014SI IPI Reg Kit - LP Hi-Lo 907.014 1002-P047SI Pilot Assembly-LP -24”...

  • Page 58: Configuration1 / Configuration 2

    Configuration #1: Basic manual HI/LO and manual ON/OFF capabilities. Receiver Module 0.584.523/521/221 1001-P221SI Configuration #2: Remote ON/OFF and manual HI/LO capabilities. OPTIONAL: For units with remote HI/LO capabilities, a modulating servo is required to be installed on the valve. The connectors to this servo must be connected to the Remote Harness as shown in the figure above.

  • Page 59: Operating The Receiver Without Batteries For Gt / Egt / Gtm / Egtm Remote Controls

    Operating the Receiver Without Batteries For GT / EGT / GTM / EGTM Remote Controls -Wiring Harness P/N 1002-P906si required for both IPI & Millivolt systems. -Millivolt Systems will also require Power Adapter P/N 1002-P850si. The Remote Receiver & IPI or Millivolt system can be powered by the AC Adapter. This is advantageous if you do not want to use batteries.

  • Page 60: Proflame 2 Ipi Proflame 2- Parts List

    Proflame 2 –NE2 / LPE2 -IPI System Parts List- IPI PROFLAME 2 - COMPONENT PARTS IPI - PF1 and PF2 Common Components PART NO. DESCRIPTION PART NO. DESCRIPTION 1005-P001SI Valve IPI Proflame PF2 885.001 NG - Stepper 12. 1002-P033SI TC - Pilot Burner IPI (Assembled) NG 199.033 1005-P002SI Valve IPI Proflame PF2 885.002 LP - Stepper 13.

  • Page 61: Proflame 2 Ifc Module And Remote Control

    Proflame 2 IFC Module and Remote Control LCD Display ON / OFF Key Thermostat Key Batteries UP / DOWN Arrow Key Mode Key IFC Module Button  Within 10 seconds press the button again until Pairing Remote Control: you hear it beep. ...

  • Page 62: Cold Climates - Cpi Setting

    Cold Climates – CPI Setting - Proflame 2 Remote Control Use the CPI setting during cold weather, otherwise the fireplace may have a hard time starting up and establishing a flame. The CPI (Continuous Pilot Ignition) setting will keep the firebox and fireplace exhaust vent warm during cold weather. When the firebox and exhaust vent are warm, exhaust gasses will readily flow out of the firebox.

  • Page 63: Proflame 2 Remote Control Operation

    Proflame 2 Remote Control...
  • Page 64 Note: When Smart Thermostat is activated, manual flame height adjustment is disabled. Note: This function is only available in Room Thermostat or Smart Thermostat Control Mode.

  • Page 66: Electronic Ignition Lighting Instructions

    - Lighting Instructions - Intermittent Pilot Ignition System (IPI) FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Always light the pilot whether for the first time or if the gas supply has run out with the glass door opened or removed.

  • Page 67: Venting Idvvt / Idvvt43 Venting Installation

    This appliance must not be connected to a chimney flue serving a separate solid-fuel burning appliance. This appliance is approved with Kingsman Flex Vent System (as listed in the manual) or MG Duravent flex pipe system. All venting lining products must be approved and installed according to the vent manufacturers installation instructions. All vent liners must terminate in a rain cap to prevent debris and rain from entering the vent and possibly damaging the appliance or creating an unsafe condition.

  • Page 68: Installation Of Vent Pipe

    Vent Pipe Installation IDV34 / IDV44 1. Attach the vent pipes to the termination with Millpac and 4 screws per pipe joint. Be sure to label the exhaust and intake flex pipes. Make sure not to connect the exhaust to the intake or vice-versa. Lower the termination and vent pipe down the vent and screw and seal plate to the chimney crown, clay tile chimney or wood stove vent.

  • Page 69: Insulation Of Chimney Cavity

    Chimney Cavity Insulation IDV34 / IDV44 If You Live In A Cold Climate Zone And Your Chimney Is On The Side Of Your House In cold climates, especially where the chimney is NON-COMBUSTIBLE located on the outside of the home it may be INSULATION necessary to insulate the chimney cavity with (Vermiculite, etc.)

  • Page 70: Idv34 Parts List

    IDV34 Parts List MQ34CV4PFBL Clean View ‐ Picture Frame ‐ Black 37 1/8" W x 27 3/8" H x 1 7/16" D (When using a I34CV4 a Designer Door or Door PART NO. DESCRIPTION Frame is Required) FIREPLACE BASE UNIT DOORS FOR MQ34CV3 and MQ34CV4PF IDV34N [Millivolt] MQ34SF1BL...

  • Page 71: Idv44 Parts List

    IDV44 Parts List SURROUNDS FOR CLEAN VIEW FRONTS (OPTIONAL) PART NO. DESCRIPTION I44S4432BL Surround ‐ Black (Covers 44" W x 32 FIREPLACE BASE UNIT 1/16" H) IDV44N [Millivolt] INSERT DIRECT VENT I44SPF4436BL Surround Picture Frame ‐ Black (Covers IDV44NE [IPI] FIREPLACE 44"...

  • Page 72: Parts And Venting For Idv34/ Idv44

    COMMON PARTS FOR IPI ELECTRONIC IGNITION PARTS 1006-P002SI Valve IPI Proflame PF1 886.002 NG - IDV34 & IDV44 HI/LO RISER KITS 1006-P003SI Valve IPI Proflame PF1 886.003 LP - I33R40 2-1/2” Riser 40” HI/LO I33R45 2-1/2” Riser 45” 1002-P322SI IPI Module PF1 - 584.322 REMOTE CONTROL - MILLIVOLT 1002-P850SI IPI Power Adapter IPI - 584.850 AC...
  • Page 73 MISCELLANEOUS PARTS 1000-150 GE #Silicone GE Red IS806 #736 1000-150 MP #Hi-Temp Millpac Sealant 840099 1000-214 #Piezo-Igniter 1244-17 MARK 21 1000-215 #PAL Nut (18mm x 1.5mm) Blk (1364.03) 1000-216 Gold Contact ON/OFF Switch 1000-255 #Orifice Brass - #37 Natural Gas 1000-255 #Orifice Brass - #51 Liquid Propane 350-EMBER...

  • Page 74: Limited Lifetime Warranty

    During the first year after installation of the appliance, we will provide a replacement for any component part of your unit found to be defective in materials or workmanship, including labour costs. Repair work requires prior approval by Kingsman, labour costs are based on a predetermined rate schedule and any repair work must be done through an authorized Kingsman dealer.
