Power smart DB5023 Manual page 9

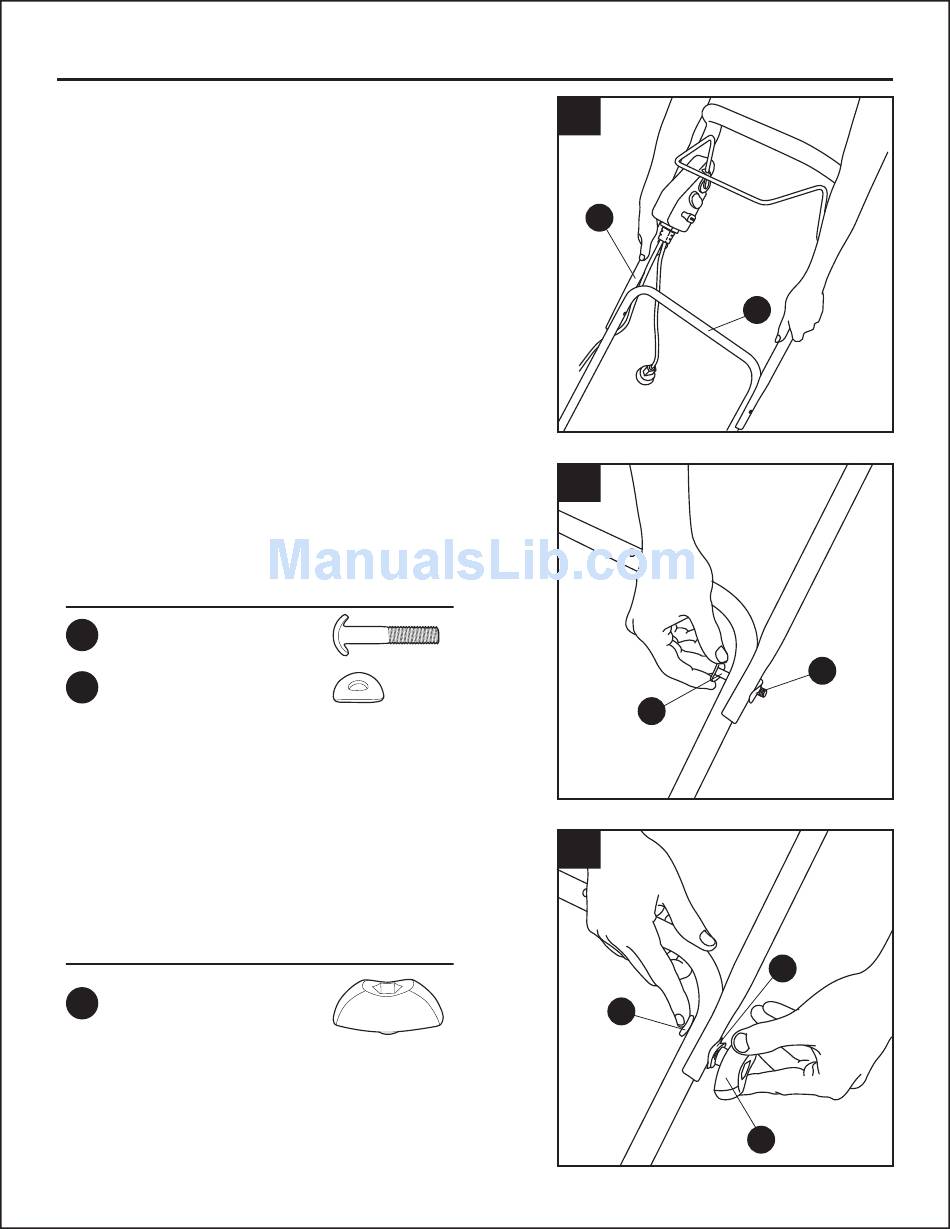

ASSEMBLY INSTRUCTIONS
4. Hold the upper frame (C) so that the screw holes
align with the holes on the middle frame (B).
5. Insert the joint fixing bolt (AA) with the metal washer
(BB) into the aligned holes on each side. The metal
washer (BB) should be inserted outside of the frame.
Hardware Used
AA
M8 x 45 Joint fixing bolt
BB
DIA. 8 Metal washer
6. Use the joint fixing knobs (CC) to secure the
connection. The joint fixing knobs (CC) should be
inserted outside of the frame.
Hardware Used
CC
M8 Joint fixing knob
4
C
5
x 2
x 2
AA
6
x 2
AA
9
B
BB
BB
CC
