ASSEMBLY INSTRUCTIONS

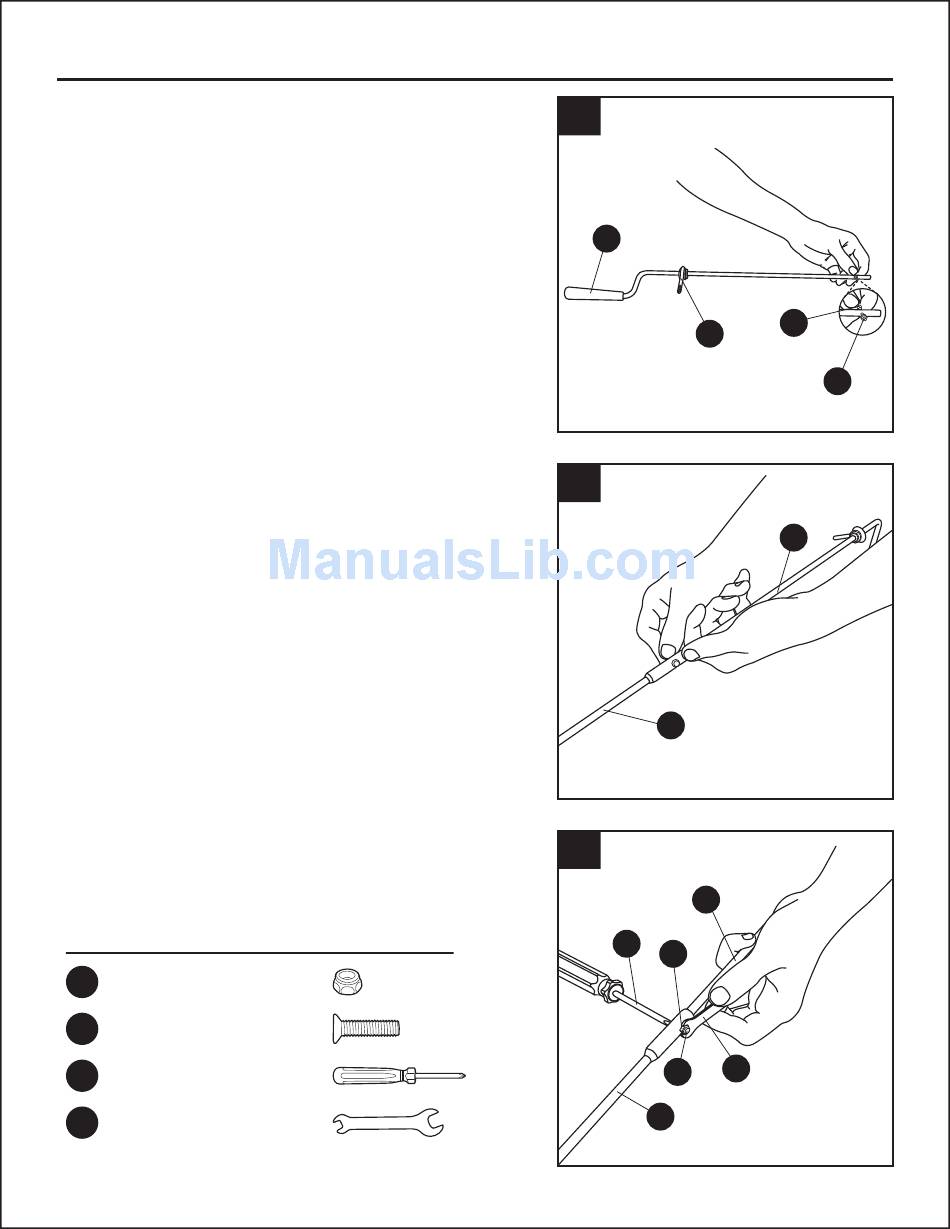

10. Locate the upper chute crank (E) in the parts bag.
Remove the screw (EE) and nut (DD) from the upper
chute crank (E) using the Phillips screwdriver and the
wrench provided.
Note: You may be able to unfasten the screw and nut
by hand.
11. Slide the upper chute crank (E) into the lower chute
crank (F), aligning the screw holes.
12. Tighten the screw (EE) into the aligned holes using
the Phillips screwdriver (FF). Fasten the nut (DD)
with wrench (GG).
Hardware Used
DD
M4 Nut
EE
M4 x 16 Screw
FF
Phillips Screwdriver
7 mm
GG
Two-sided open-end wrench
10
E
11
12
FF
x 1
x 1
x 1
x 1
11
EE
Q
DD
E
F
E
DD
GG
EE
F
