Power smart DB5023 Manual page 13

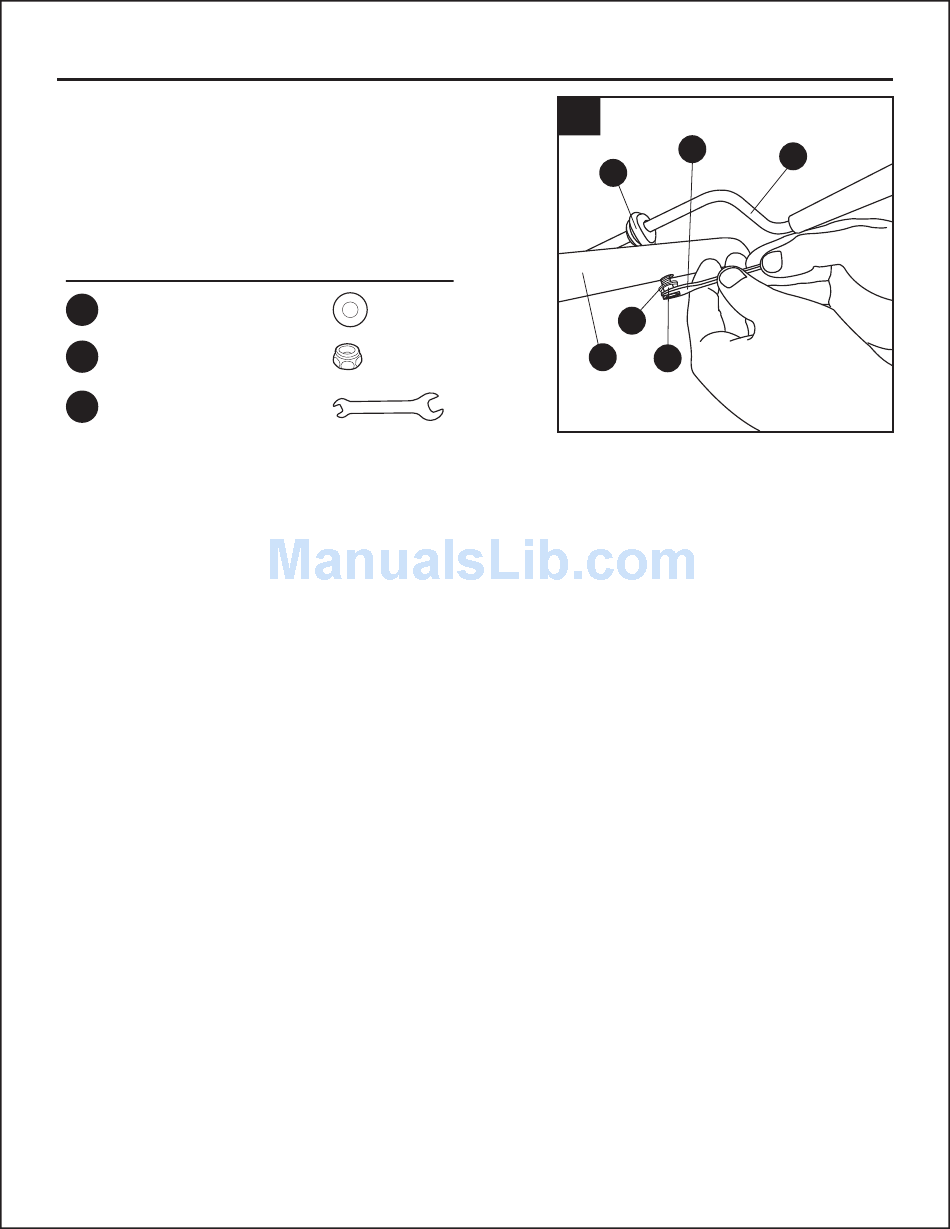

ASSEMBLY INSTRUCTIONS
16. Position the chute crank (E) so that the eye bolt with
rubber grommet (Q) inserts into the center hole of
the middle frame (B). Secure with washer (HH) and
nut (II).
Note: Do not overtighten the nut.
Hardware Used
HH
Ф6 × Ф13 × 1 Washer
II
M6 Nut
7 mm
GG
Two-sided open-end wrench
16
Q
x 1
HH
x 1
B
x 1
13
GG
E
II
