Page 1: Reference Manual
Reference Manual D AD 3260 BS - 6 x AES3-id to AES3 converter D AD 3260 SB - 6 x AES3 to AES3-id converter © LYNX Technik AG Brunnenweg 3 64331 Weiterstadt Germany www.lynx-technik.com... - Page 2 Except as expressly written by LYNX Technik AG, the furnishing of this document does not give you any license to patents, trademarks, copyrights or other intellectual property of LYNX Technik AG or any of its affiliates.
-
Page 3: Warranty
LYNX Technik, with shipping charges prepaid. LYNX Technik shall pay for the return of the product to the customer if the shipment is within the country which the LYNX Technik service center is located. -
Page 4: Regulatory Information
Sandstrasse 7 D-64404 Bickenbach Germany Declare under our sole responsibility that the product TYPE: D AD 3260 SB, D AD 3260 BS To which this declaration relates is in conformity with the following standards (Environments E1-E3): EN 55103-1 /1996 EN 55103-2 /1996 EN 60950 /2001 Following the provisions of 89/336/EEC and 73/23/EEC directives. -
Page 5: Table Of Contents
Reference Manual D AD 3260 Version1.1 Contents Warranty ..............3 Regulatory information........... 4 Europe ................4 Declaration of Conformity..........4 USA.................4 FCC 47 Part 15............4 Contents ..............5 Getting Started............7 Packaging................7 Product Description ............7 Module Layout..............8 Connections ............9 Audio Input Connections ..........9 Audio Output Connections ..........9 Audio Connections (balanced)........9 Power Connections ............10... - Page 6 Reference Manual D AD 3260 Version1.1 This Page is intentionally left blank Page 6...
-
Page 7: Getting Started

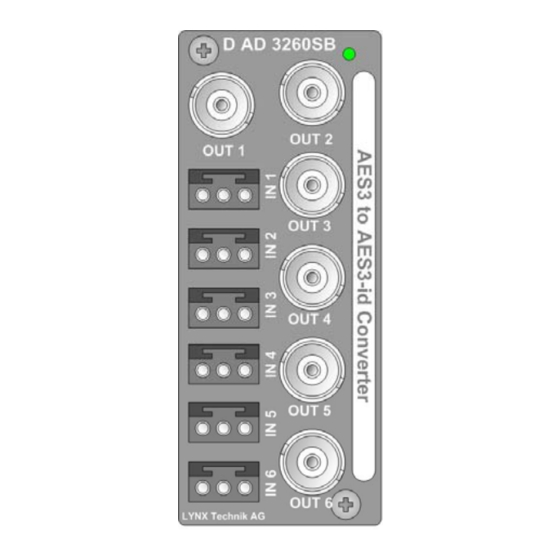

Product Description The D AD 3260 BS is a high quality AES3-id (unbalanced 75 Ohm) to AES 3 (balanced 110 Ohm), the D AD 3260 SB a AES3 to AES3-id converter designed primarily for broadcast and professional applications. -
Page 8: Module Layout
Reference Manual D AD 3260 Version1.1 Module Layout Figure 2 shows the physical layout of the D AD 3260 MiniModule. If the module is being used in a stand alone application then the optional power supply (R PS 3001 E, R PS 3001 U, R PS 3001-3 or R PS 3004) is required to power the module (not shown) Figure 2 –... -
Page 9: Connections
Reference Manual D AD 3260 Version1.1 Connections Audio Input Connections The D AD3260 MiniModule is configured with standard 75 Ohm BNC connectors for the AES3-id Audio connections. Connection is self-explanatory. We recommend the use of high quality audio cable to reduce the risk of interference or errors due to excessive cable attenuation. -
Page 10: Power Connections
Data Connection Power Connection i2C-SDA (data) + 5V i2C-SCL (clock) Male Connector (view looking into connector from front) Caution Only use the optional LYNX R PS power modules. Ensure the 5-pin power connector is locked securely in place. Page 10... -
Page 11: Installation
Reference Manual D AD 3260 Version1.1 Installation Mechanical Stand Alone Operation The D AD 3260 MiniModule can be used in a stand alone application. There are two options for the use of the module in this way. a) Using the R FR 3005 Rack Frame 1 option. This allows up to any 10 of the MiniModules to be secured onto a rack frame assembly for 19 inch rack mounting. -
Page 12: Multiple Units
Reference Manual D AD 3260 Version1.1 Multiple Units Most applications will require more than one MiniModule, which can include any of the available Series 3000 MiniModule product range. There are two options for mounting multiple units. a) Using the R FR 3005 Rack Frame option. This allows up to any 10 of the MiniModules to be secured onto a rack frame assembly for 19 inch rack mounting. -
Page 13: Electrical Installation
/ receiving the signals from the module or damage can result. Caution. Only use the optional Lynx R PS 1 power modules. Ensure the 5-pin power connector is locked securely in place. -
Page 14: Multiple Units
Reference Manual D AD 3260 Version1.1 Multiple Units When installing multiple MiniModule units it is recommended you use the R FR 3005 Rack Frame 1 and / or R FR 3010 Rack Frame 2 options. Please refer to the documentation supplied with these options for details on electrical installation. - Page 15 Reference Manual D AD 3260 Version1.1 Specifications (D AD3260 SB) Inputs Signal 6 x AES 3-id unbalanced transformer isolated inputs Input Impedance 75 Ohms Connection Return Loss <25dB (32KHz to 100KHz) Outputs Signal 6 x AES 3 balanced transformer isolated outputs Output Impedance 110 Ohms Connection...
-
Page 16: Available Options
Reference Manual D AD 3260 Version1.1 Available Options Below is a list of available options for the D AD 3260 MiniModule. Please refer to product brochures or our web site for more detailed information. Model Description External brick power supply module for R PS 3001 E Series 3000 MiniModules. -
Page 17: Parts List
Part Number 5.155.003.290 D AD 3260 SB Mini Module (complete) Description AES3 to AES3-id Converter Model Number D AD 3260 BS Part Number 5.155.003.291 Service If you are experiencing problems, or have questions concerning your D AD 3020 MiniModule please contact your local distributor for assistance. -
Page 18: Contact Information
Reference Manual D AD 3260 Version1.1 Contact Information Please contact your local distributor; this is your local and fastest method for obtaining support and sales information. LYNX Technik can be contacted directly using the information below. Address LYNX Technik AG Brunnenweg 3 64331 Weiterstadt Germany. - Page 19 Reference Manual D AD 3260 Version1.1 This Page is intentionally left blank Page 19...
- Page 20 Reference Manual D AD 3260 Version1.1 Notes Page 20...
