TuffStuff Multi-Press SP-403 Assembly Manual page 8

31

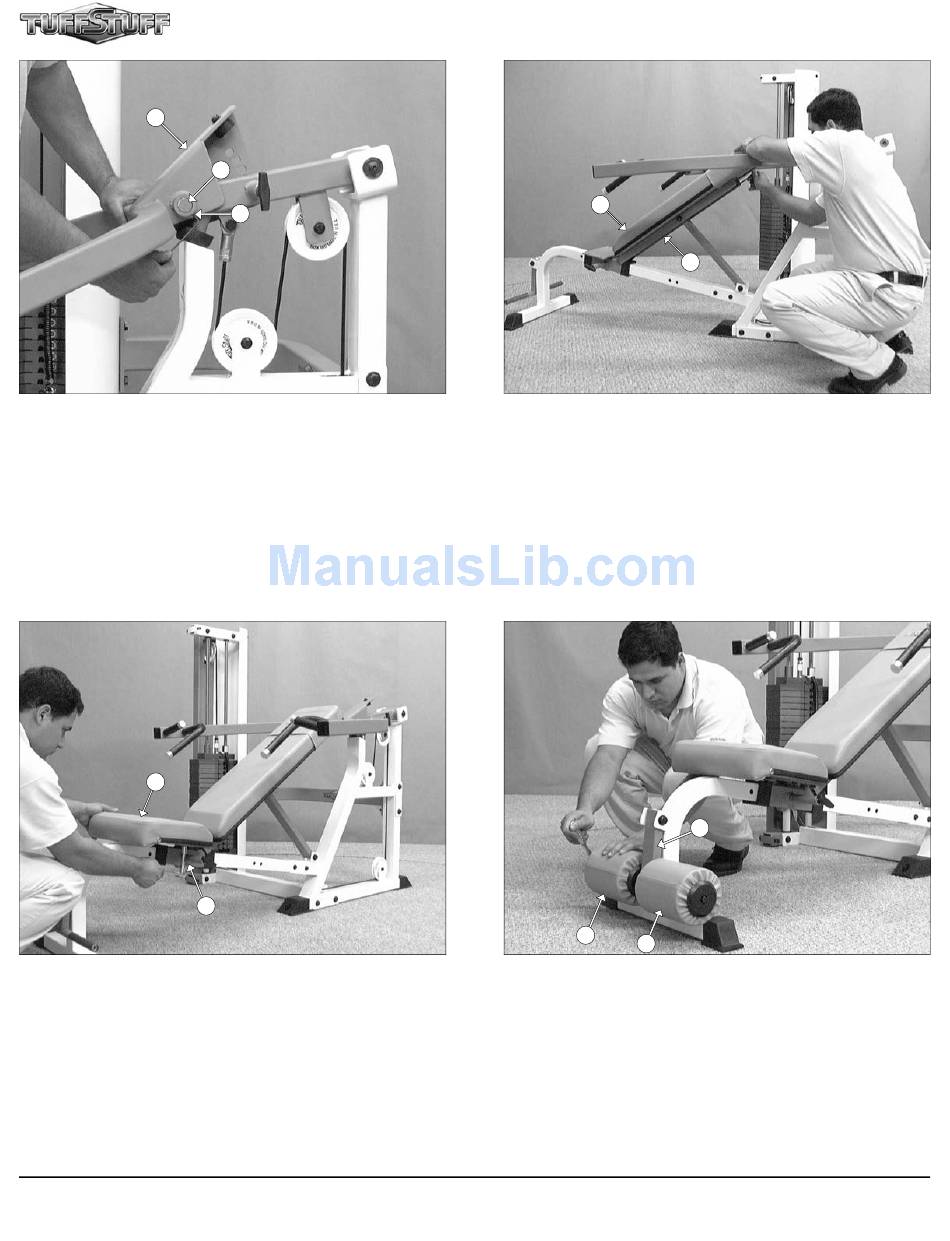

FIG. 21 Secure the Press Bar (#31)
(#34) using two Socket Set Screws 1/4-20 X 1/4 (#86). Use the sup-
plied Hex Key 1/8" (#92) for securing both Socket Set Screws.
43
42
FIG. 23 Affix the Seat Pad (#43)
(#42), in the position as shown above, using four Hex Head Cap
Screws 3/8-16 X 1 1/4 (#75), and four Flat Washers SAE 3/8" (#19).
7
34
86
to the Press Bar Pivot Axle
to the Bench Slide Carriage
44
FIG. 22 Affix the Back Pad (#44)
(#36), in the position as shown above, using two Flat Head Socket
Cap Screws 3/8-16 X 1 1/4 (#25).
7/32" (#93) for securing both Flat Head Socket Cap Screws.
46
46
FIG. 24 Insert a Foot Roll 1 X 5 1/2 X 7 1/4 (#46)
end of the Bench Foot Roll Holder
place using two Hex Head Cap Screws 3/8-16 X 1 1/2 (#76).
36
to the Bench Back Pad Frame
Use the supplied Hex Key
41
over each tube-
(#41), and secure them into
SP-403 Multi-Press
