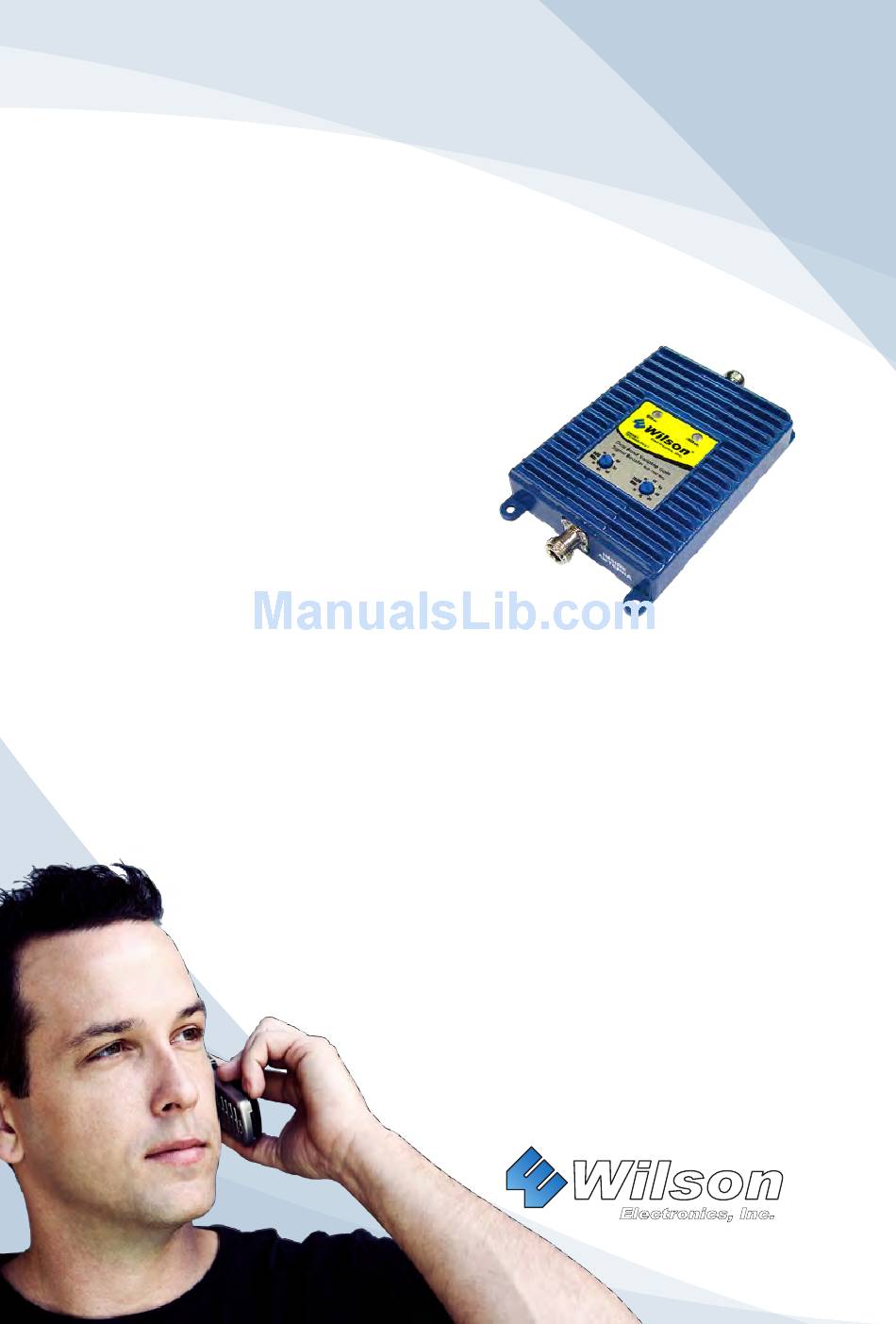

Installation
Guide
AG Pro 75
Smart Technology™ In-Building
Wireless 800/1900 MHz
Adjustable Gain Signal Booster
Contents:
Antenna Options & Accessories . . . . . . . . . . . . . . . . . . . . . . . . . .1
Quick Installation Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Installation Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Before Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Finding the Strongest Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Outside Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Installing the Inside Antenna . . . . . . . . . . . . . . . . . . . . . . . . . .9
Warnings and Recommendations . . . . . . . . . . . . . . .15
Guarantee & Warranty . . . . . . . . . . . . . . . . . . . . . . .17
AG Pro 75 Specifications . . . . . . . . Back Cover
Note: This manual contains important safety and operating
information . Please read and follow the instructions in this
manual . Failure to do so could be hazardous and result
in damage to your signal booster .
Wilson
Electronics, Inc.
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AG Pro 75 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wilson Electronics AG Pro 75

  • Page 1: Table Of Contents

    Installing the Inside Antenna . . . . . . . . . . . . . . . . . . . . . . . . . .9 Installing a Wilson Electronics Signal Booster . . . . . . . . .10 Powering up a Wilson Electronics Signal Booster .
  • Page 2: Antenna Options & Accessories

    Supply Outdoor Antenna Options Indoor Antenna Options & Accessories To purchase these call Wilson Electronics Sales Department at: 800-204-4104 1 . 1900 MHz Yagi PCS Antenna (301124) A . Dual-Band Panel Antenna 700-2700MHz (301155) 2 . 800 MHz Yagi Cellular Antenna (301129) B .
  • Page 3: Quick Installation Overview

    . Lightning surge protection is recommended for all in-building installations . See page 7 . The AG Pro 75™ Signal Booster has been packaged with the gain control knobs adjusted to the highest gain position . If one or both of the lights are red please refer to page 14 .
  • Page 4: Installation Diagram

    Note: A lightning surge protector is recommended for all building installations. Make sure the protector is installed in line between the outside antenna and the signal booster. Typical Installation Contact Wilson Electronics Technical Support Team with any questions at or email:...
  • Page 5: Before Getting Started

    Before Getting Started This guide will help you properly install your Wilson Electronics AG Pro 75™ Signal Booster . It is important to read through all of the installation steps for your particular application prior to installing any equipment. Read through the instructions, visualize where all the equipment will need to be installed and do a soft installation before mounting any equipment .
  • Page 6 . The AG Pro 75 works with two antennas . The inside antenna communicates with your cell phone, and the outside antenna communicates with the cell tower .
  • Page 7: Finding The Strongest Signal

    The outside antenna receives the cell tower signal and sends it through the coax cable to the AG Pro 75, where it is amplified and re-transmitted much stronger through the inside antenna into the room . When the inside antenna picks up a signal from your cell phone, the signal booster amplifies that signal and transmits it through the cable to the outside antenna and back to the cell tower .
  • Page 8: Outside Antenna Installation

    . Warning: Lightning protection is recommended for all installations (Wilson Electronics Part #859902) . Take extreme care to ensure that neither you nor the antenna comes near any electric power lines . Installing Lightning Protection...
  • Page 9 . In some instances, it may be possible to run the cable up into the fascia of the attic overhang . In this circumstance, the cable will be accessible in the attic for further routing . Contact Wilson Electronics Technical Support Team with any questions at or email:...
  • Page 10: Installing The Inside Antenna

    . If using more than one inside antenna, a separation of at least 20 feet is necessary between inside antennas . See configuration on page 3 . Optional Wide Band Inside Antenna (Sold Separately) Contact Wilson Electronics Technical Support Team with any questions at or email:...
  • Page 11: Installing A Wilson Electronics Signal Booster

    Warning: An inside antenna must have a separation distance from all persons that is at least 15 inches for the panel antenna . Contact Wilson Electronics Technical Support Team with any questions at or email:...
  • Page 12: Powering Up A Wilson Electronics Signal Booster

    6 . Using multiple signal boosters in one installation could cause interference to the cell tower . 7 . Contact Wilson Electronics Technical Support Team with any questions at 800-204-4104 or email tech@wilsonelectronics .com . Technical Support hours are M-F: 6 am to 7 pm MST .
  • Page 13 Never point antennas toward each other Outdoor Antenna Inside Panel Antenna Signal booster Figure 2 CORRECT INSTALLATION Never point antennas toward each other Outdoor Antenna Inside Panel Antenna Signal booster Contact Wilson Electronics Technical Support Team with any questions at or email:...
  • Page 14: Understanding The Signal Booster Lights

    . If one or both lights are blinking orange, this indicates that the booster has shut down due to close proximity to a cell tower . First, turn down the gain control on the band that Contact Wilson Electronics Technical Support Team with any questions at or email:...
  • Page 15 The indicator lights on the signal booster will be a solid green after the first 15 minute installation period, and the unit is powered up and working properly . Contact Wilson Electronics Technical Support Team with any questions at or email:...
  • Page 16: Warnings And Recommendations

    . Warning: Do not use an Omni Directional Antenna with the AG Pro 75 Note: Lightning surge protection is recommended for all in-building installations. Contact Wilson Electronics Technical Support Team with any questions at or email:...
  • Page 17 About Wilson Electronics Wilson Electronics, Inc . has been a leader in the wireless communications industry for nearly 40 years . The company designs and manufactures signal boosters, antennas and related components that significantly improve cellular telephone signal reception and transmission in a wide variety of applications, both mobile and in-building .
  • Page 18: Guarantee & Warranty

    Returned Material Authorization (RMA) number supplied by Wilson Electronics . Wilson Electronics shall, at its option, either repair or replace the product . Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer if located within the continental U .S .
  • Page 19 . Copyright © 2011 Wilson Electronics, Inc . All rights reserved . Operation is subject to the following two conditions: (1) This device may not cause interference and (2) this device must accept any interference, including interference that may cause undesired operation of this device .
  • Page 20: Ag Pro 75 Specifications

    AG Pro 75™ Specifications IC: 4726A-271265 Dual-Band Wireless FCC ID: PWO271265 800/1900 MHz Specifications Model Number 271265 Antenna connectors N-Female Antenna impedance 50 ohms Dimensions 5 .7 x 4 .2 x 1 .5 inch (14 .0 x 10 .8 x 3 .9 cm) Weight 1 .27 lbs (0 .544 kg)
