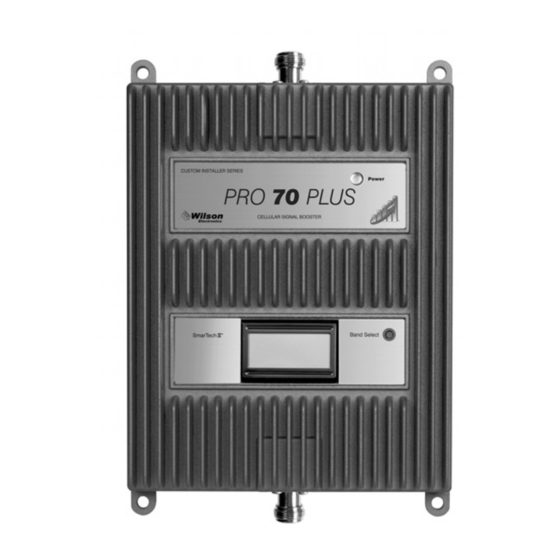

PRO 70 PLUS
In-Building
SmarTech
Cellular Signal Boosters
-50 Ohm
™
®
Advertisement
Table of Contents
Related Manuals for Wilson Electronics PRO Series
Summary of Contents for Wilson Electronics PRO Series
-
Page 1: Table Of Contents

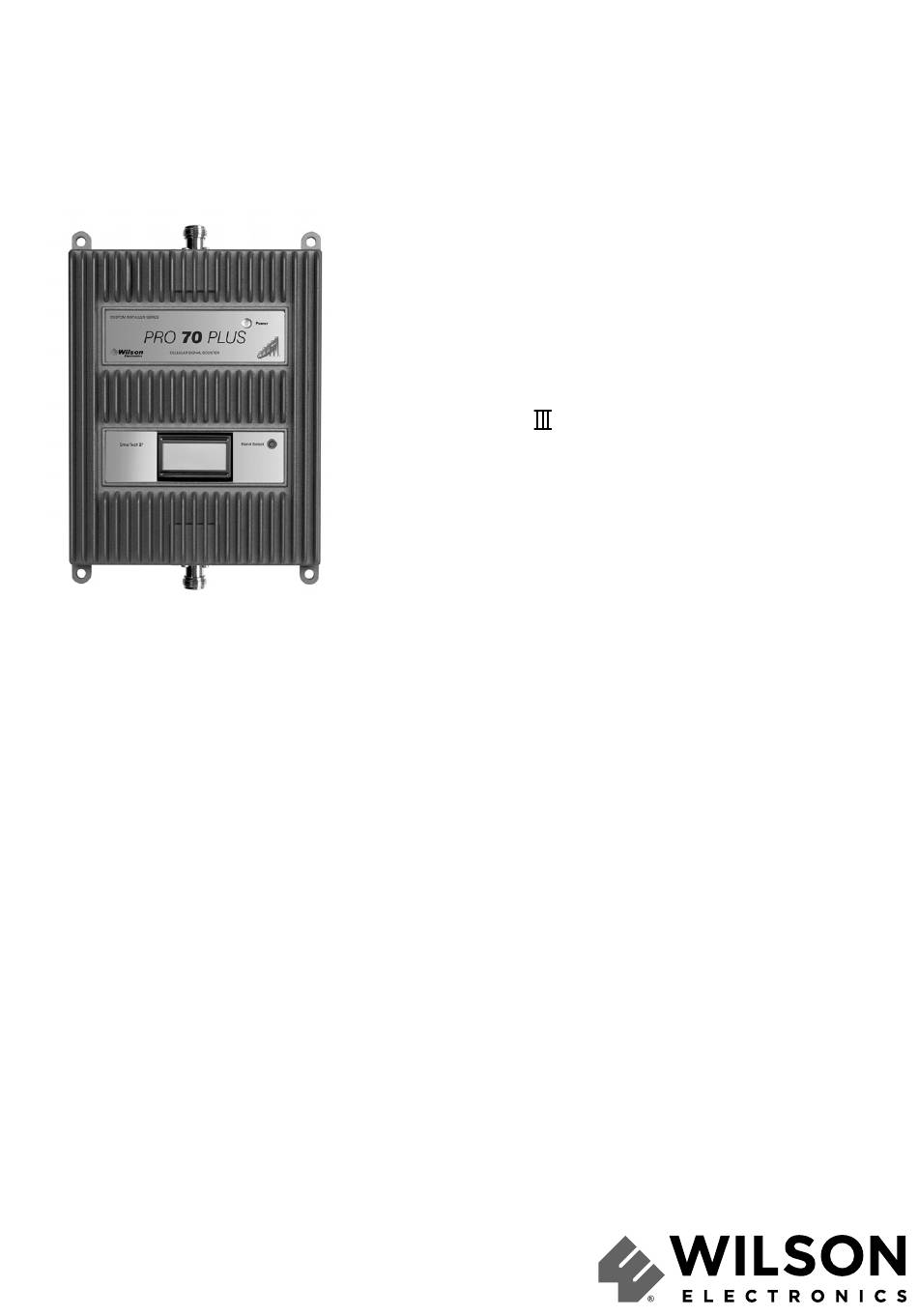

PRO SERIES INSTALLATION GUIDE PRO 70 PLUS -50 Ohm ™ In-Building SmarTech ® Cellular Signal Boosters Contents: How Cellular Boosters Work ......... 1 Install Overview . -
Page 2: How Cellular Boosters Work
Install Overview Refer to Installation Diagram on page 3 & 4. Contact Wilson Electronics Technical Support Team with any questions at 866-839-9361. Select a location on the roof or outside of the building to install the outside antenna. Refer to pages 3 &... -
Page 3: Inside This Package
50 to 75 feet of horizontal separation from the outside antenna. Vertical separation also helps increase isolation. Alternate means of isolation are possible. If physical separation is not possible, please contact Wilson Electronics Tech Support at 866-839- 9361 for suggestions on alternate methods to achieve isolation. -
Page 4: Installation Diagram
Preferred Method: Place the Inside Antenna in the ceiling facing down for the best coverage. Power Supply Surge Protector Power Strip Contact Wilson Electronics Customer Support Team with any questions at upport Team with any questions at 866-839-9361 or email: tech@wilsonelectronics.com @ il... - Page 5 Optional Inside Antenna for added coverage Signal Booster Contact Wilson Electronics Customer Support Team with any questions at Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361 or email: tech@wilsonelectronics.com 866 839 9361 il t h@ il...
-
Page 6: Outside Antenna Installation
Point antennas away from each other Never point antennas toward each other Outdoor Antenna Outdoor Antenna Inside Inside Antenna Antenna Signal Booster Signal Booster Figure 2 Figure 1 Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361 or email: tech@wilsonelectronics.com... - Page 7 In this circumstance, the cable will be accessible in the attic for further routing. Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361 or email: tech@wilsonelectronics.com...
-
Page 8: Installing The Inside Panel Antenna(S)
Recommended installation locations for in-building signal boosters are in a closet or on a shelf where power is available. Attic installations may expose the booster to high heat. Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361 or email: tech@wilsonelectronics.com... -
Page 9: Finding The Strongest Signal
Signal readings usually appear as a negative number (for example, -86). The closer the number to zero, the stronger the signal (see Signal Srength Graph above). Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361 or email: tech@wilsonelectronics.com... -
Page 10: Post Install Setup / Lcd Screen
After completing the amplifier installation, the LCD display and push button on the lower panel of the Pro Series booster is used to verify the final gain that the booster adjusted itself to produce after antennas have been placed. - Page 11 Red indicates the booster has shut down due to extreme oscillation (feedback). Orange indicates the booster has shut down due to extreme signal overload. This is caused from being too close to a cell tower. Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361 or email: tech@wilsonelectronics.com...
- Page 12 If the Signal Booster will not respond, relocation of the outside antenna may be required. 2. If the light remains orange, contact the Wilson Electronics Customer Support Team for assistance at 866-839-9361.
- Page 13 Signal Boosters improve network cell phone areas without compromising carrier systems. All products are engineered and assembled in the company’s 100,000 square-foot headquarters in St. George, Utah. Wilson Electronics has product dealers in all 50 states as well as in countries around the world.
-
Page 14: Warnings And Recommendations
This device may be operated ONLY in a fi xed location (i.e..may operate in a fi xed location only) for in-building use. Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361 or email: tech@wilsonelectronics.com... - Page 15 This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Wilson Electronics could void the authority to operate this equipment.
- Page 16 (contact Wilson Technical Support for assistance) Kit 311201-1120 301126 w/12.5 RG174 cable-SMA Omni Directional w/ F-Female 20’ RG11 Cable Kit 314473-1175 75 Ohm Pole Mount Panel Antenna 75’ RG11 Cable Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361 or email: tech@wilsonelectronics.com...
-
Page 17: Warranty
Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson Electronics shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer if located within the continental U.S. - Page 18 Notes Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361 or email: tech@wilsonelectronics.com...
- Page 19 Notes Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361 or email: tech@wilsonelectronics.com...
- Page 20 Signal Booster. Noise power, gain, and linearity are maintained by the Signal Booster’s microprocessor. 3301 East Deseret Drive, St. George, UT www.wilsonelectronics.com | tech@wilsonelectronics.com Copyright © 2016 Wilson Electronics. All rights reserved. Wilson Electronics products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents 111753_Rev03_09.06.17...
