- Page 1 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2011.02.104...
-
Page 2: User Manual
User Manual DOOR CAMERA DRC-4BGN / 4CGN • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. - Page 3 3. Wiring & Installation.....................4 4. Specification........................7 1. Greetings Ⓡ * Thank you for purchasing our Commax product. * You should read this user’s manual carefully before operating the unit. * This common method H/A system provides household residents with added safety and convenience based on the various built-in features.

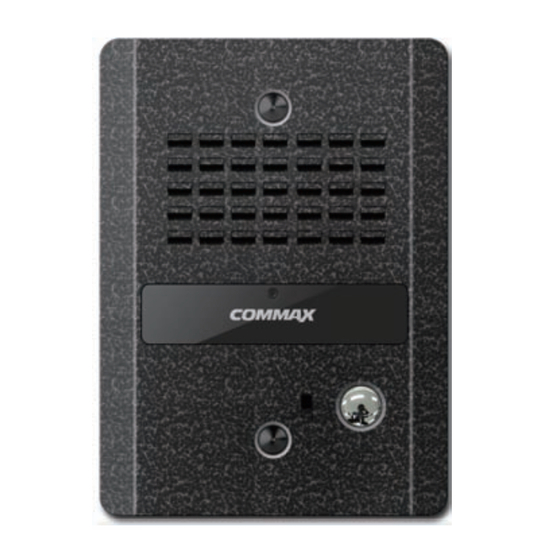

- Page 4 2.Overview Name contents Front Panel Mounting Holes S peaker Transmits sounds from the household. C amera Lens Protect it from foreign substances. LED Lamp Turns on at night for better viewing. For use when communicating with the household. Page Button Used to page the household.
- Page 5 3. Wiring & Installation 1. Cut out the mounting template included in the manual and use it to drill mounting holes (Ø6.5) on the wall. Insert Concrete anchors in the holes. 2. Wire the household monitor cables as shown below. with matched polarity.[FIG-2] (#1:RED/VOICE, #2:BLUE/GND, #3:YELLOW/DC12V, #4:BLACK/VIDEO) 3.
- Page 6 [MOUNTING TEMPLATE] - 5 -...
- Page 7 - 6 -...
- Page 8 4. Specification DRC-4BGN Model Resolution C.C.D(Camera Module) specification Rated voltage (supplied from the monitor) Wiring Method(household) 4-wire polarity 70 。 Horizontal : 56 。 , Vertical : 42 。 90 。 Horizontal : 71 。 , Vertical : 53 。...
