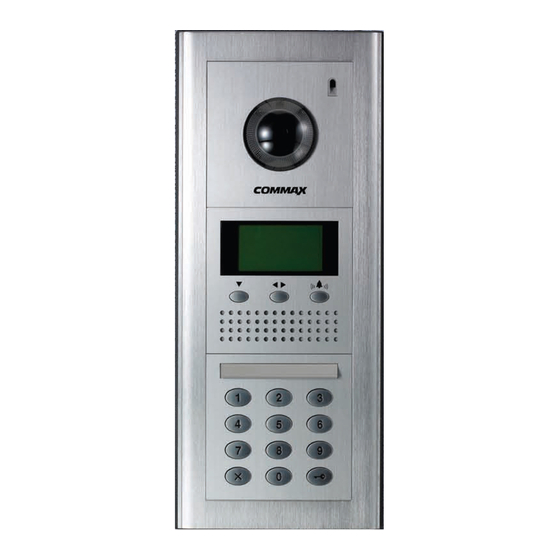

Commax DRC-MSB User Manual

Multi entry unit
Hide thumbs Also See for DRC-MSB:

Advertisement

Table of Contents

513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea
Int'l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133
Web site : www.commax.com
Printed In Korea / 2010.03.101
MULTI ENTRYUNIT DRC-MSB/MSC
Thank you for purchasing COMMAX products.
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRC-MSB and is the answer not in the manual?

Questions and answers

Related Manuals for Commax DRC-MSB

Summary of Contents for Commax DRC-MSB

  • Page 1 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Thank you for purchasing COMMAX products. Web site : www.commax.com Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.

  • Page 2: Table Of Contents

    Table of Contents Warnings and caution Features Part names and Functions Calling In-house unite by resident Number Calling In-house unite by the listed resident names Calling / talking duration Open the entrance with PIN Number Setting the ID for Multi-Entry Panel Setting In-House unit aas master and Sub Units Changing the password Connectable Products...

  • Page 3: Warnings And Caution

    Warnings and caution Make sure to follow the instructions to prevent any danger or property losses. It indicates prohibition. It indicates prohibition of disassembly. Warning Death or serious It indicates prohibition of contact. injury is expected. It indicates dos and don’ts. It indicates that the plug should be pulled out from the socket.
  • Page 4 Install the product in a flat and Pull the plug if the product is If the product generates strange stable place. not used for a long time. sound, make sure to pull the Otherwise, it may not function plug immediately and contact properly. Commax service center.

  • Page 5: Features

    Video type by buttons(DRC-nSC/nSB) and Audio type (DR-nSB) according to clients’ needs. Using a DRC-MSC (color) entry unit with a black & white videophone unit, as well as using a DRC-MSB (black & white) entry unit with a color videophone unit, will cause blurred images.
  • Page 6 8) Screen display duration lasts for 30 seconds after receiving a call 9) Talking duration time last for 60 seconds. 10) Temperature limit : -10℃ ~ +40℃ 11) Dimension(mm) : 140(W) x 341(H) x44(D) 12) Weight: 1570g Installation ▶ Surface Mount Type Flush Mount Type...

  • Page 7: Part Names And Functions

    2. Part names and Functions Contents Contents C-MIC Power status and Light night lamp Lamp for CCD Camera Dial button CDS Sensor CCD Camera Cancel button LCD Display Camera angle control Down button Terminal for door release Right and Left button Volume control for receiving call Call button Connection terminal to CCU-BS...

  • Page 8: Calling In-House Unite By Resident Number

    3. Calling In-house unite by resident Number 1) Press the buttons according to the residence number and then Press “ ” 2) After the residence answers, you can talk with the in-house unit. 3) “Beep” will sound in the cause of a wrong number, 4) “Line Busy”...

  • Page 9: Open The Entrance With Pin Number

    6. Open the entrance with PIN Number 1. Opening the common entrance with Household Number Note : The doors do not open by default password “ 1234 ” Only after changing default Password to new one, can you use this function. 1) Press resident number”...

  • Page 10: Setting In-House Unit Aas Master And Sub Units

    8. Setting in-house unit as Master and sub units • Setup begins from the multi-entry unit connected to channel 1. •In one household, there should only be one established MASTER multi-entry unit. The remaining units should be set as SLAVE units. •From the household number registration mode, pressing the “Door release”...

  • Page 11: Changing The Password

    10. Changing the password 1) Changing Resident Password 1. Hold “Residence Number” and “Key button for 2 seconds and release when LCD stops blinking. 2. Enter “Current password“ 3. Hold “Key button for 2 seconds and release when LCD stops blinking. 4.

  • Page 12: Connectable Products

    12. Resident registration program (NAME TOOL_200) This program updates through the company web site (WWW.COMMAX.COM) 1) Download “ NAME TOOL_200.zip” through COMMAX homepage and expand the zip files to a temporary folder. 2) Connect the side, D-sub connector of download cable to the serial port of the PC and...
  • Page 13 3) Set the dip switches of Building Distributor to match its assigned ID. 4) Run “NAME TOOL_200.exe” file. 5) Select the Building ID in “ Select No ”. on the menu. 6) Select the port connecting with the computer in “ Select Port ” 7) Select “...
  • Page 14 8) Enter a resident number and name and then select “ OK ” to enter the next resident number and name. (can be entered up to 200 resident numbers and names) 9) Select “ Cancel ” to quit 10) In order to edit or delete, select the resident number and name among the existing list of names as shown above , and Then you can modify through the selection of “...
  • Page 15 12) “Completed sending” message is displayed as above, select (Y). (When “LOBBY Not connected” message is displayed, please recheck the cable connection, the Dip switches of the Building Distributor and “Select No.” & “Select Port” in the program menu while shutting off the Building Distributor. Then select “...

  • Page 16: Wiring And System Diagram

    17) With this data, you can make use of the “modify”, ”Add” functions in this program and select “ SEND ” to complete. 13. Wiring and System Diagram 1) Wiring Diagram...
  • Page 17 2) Wiring Please pay attention to the polarity of the wires. Units will not work properly when mis-wired - When using a UTP(CAT.5) cable, be sure to check the connection of the color of the wires as shown in the picture above. - Within 20m between Build Distributor and Multi Entry Panel, the power is supplied from the Building Distributor.

  • Page 18: Specification

    3)System diagram 13. Specification Item Content(DRC-MSC/MSB) Wiring To Build Distributor: 8-wire(talk 2, Data 2, Video 2, Power 2) Power voltage DC24~DC28V 5A ( powered by building distributor) Transmission Method Duplex System Screen dimension 128x64 GRAPHIC LCD Standby : 60mA Power requirement Maximum operation: 450mA(Max.) When power source is supplied from Building Distributor.
