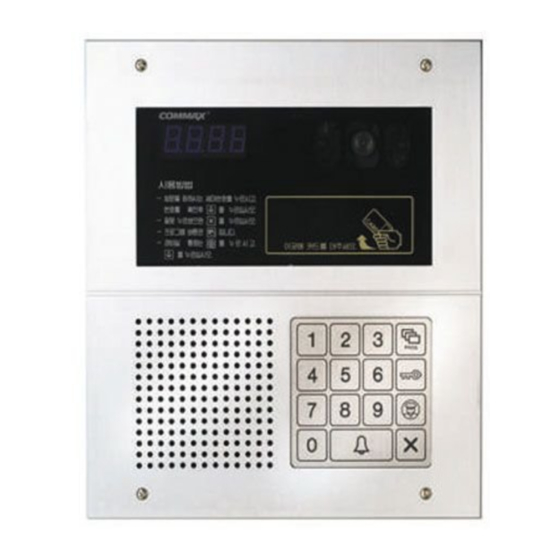

Main Entrance Camera
DRC-481L
• 8-wire Common Method (Interphone)
• 4-wire Common Method (Videophone)
• RF/ID Feature (Optional)
• Surveillance Monitor Support
T hank you for purchasing our C OMMAX product.
P lease carefully read this UserÕ s G uide (in particular, precautions for safety)
before using the product and follow the instructions to use your productexactly.
T he company is not responsible for any safety accidents caused in abnormal
operation of the product.
(Common Method)
-Feature-
Model No.
DRC-481L(C)/RF
DRC-500L(C)/RF
DRC-500L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRC-481LCRF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commax DRC-481LCRF

Summary of Contents for Commax DRC-481LCRF

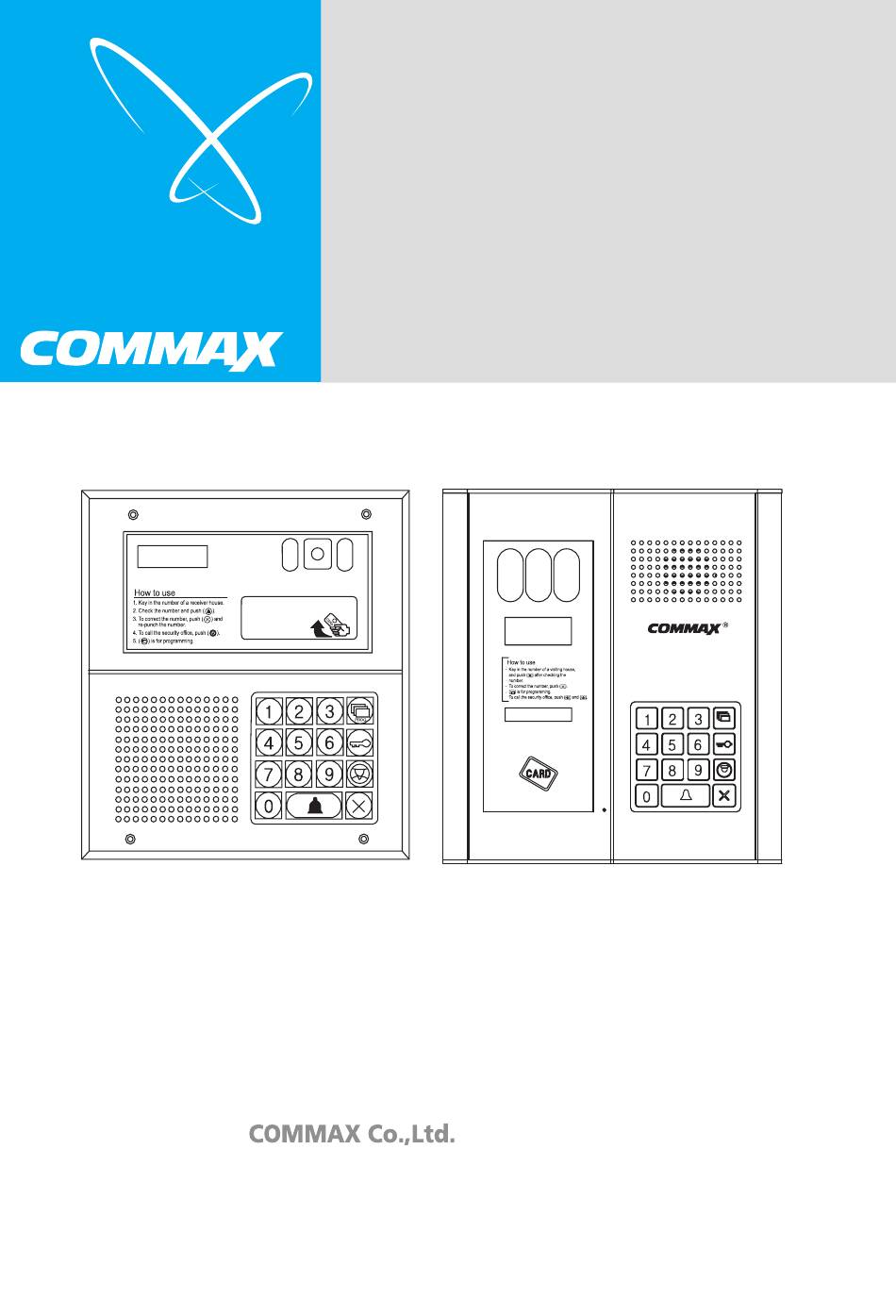

  • Page 1 Main Entrance Camera (Common Method) Model No. DRC-481L(C)/RF DRC-500L(C)/RF DRC-481L DRC-500L -Feature- • 8-wire Common Method (Interphone) • 4-wire Common Method (Videophone) • RF/ID Feature (Optional) • Surveillance Monitor Support T hank you for purchasing our C OMMAX product. P lease carefully read this UserÕ s G uide (in particular, precautions for safety) before using the product and follow the instructions to use your productexactly.
  • Page 3 Class B device NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Table Of Contents

    Table of Contents 1. Greetings …………………………………………………………………………… 4 2. Before Getting Started …………………………………………………………… 4 3. Overview …………………………………………………………………………… 5 4. PIN Types ………………………………………………………………………… 10 5. Setting PIN ………………………………………………………………………… 11 6.Household PIN Confirmation ……………………………………………………… 14 7.Configuring Building and Serial Numbers in the Main Entrance Interphone ……… 15 8.
  • Page 5 Safety Warning & Caution Please follow the things described below in order to prevent any danger or property damage. Prohibition. Warning It may cause a serious damage or No disassembly injury if violated. No touch Must follow strictly. Shows plugging out the power cord Caution It may cause a minor damage or without an exception...
  • Page 6 Warning If an abnormal sound, burning Please don’ t disassemble, Please don’t insert any Please use only the designated repair or rebuild this product smell or smoke is coming out metallic or burnable materials batteries for the products of arbitrarily (please contact the of the product, please plug out into the ventilation hole.

  • Page 7: Greetings

    1. Greetings Thank you for purchasing a Commax product. This product is a high tech Main Entrance interphone that supports electronic and remote (Optional) keys and finger print recognition (Optional) features. Please read this manual carefully. 2. Before Getting Started...

  • Page 8: Overview

    3. Overview 3-1. Feature DRC-481L Description Description Description Display Window (FND) Guard Button Household Interphone (1) RF/ID Receiver (Optional) Cancel Button Household Interphone (2) Speaker Reset Button Video Out Selection Switches Power: DC12V/1A (RF-1A) No. 1: Computer Connection Key Pad Door Release Terminal No.
  • Page 9 DRC-500L Description Description Description Speaker Night Lamp Security Switch Connection Key Pad Display Window (FND) Power: DC15V/1A(CS-15C) Program Button CCD Camera Reset Button Computer Connection Termina Electronic Key Button Selection Switches Guard Button Guardhouse Interphone Termina No. 1: Computer Connection No.
  • Page 10 3-2. Basic Function RF/ID Receiver (Optional) To open the door using a Remote Cardkey, place the key here. The word ‘oPEn’will display and the door will be released. A A u u d d i i o o G G u u i i d d e e “...
  • Page 11 Cancel Button (X: Cancel) This button is used to cancel the current operation. A A u u d d i i o o G G u u i i d d e e “ “ C C a a n n c c e e l l l l e e d d ” ” Selection Switches No.
  • Page 12 ● Must Know Before Use! 1) Accessing All Features with the Program Button -When an error has been made as indicated by continuous beeps, please cancel and start again from the beginning. Beep Beep Beep Start again from (Error) the beginning 2) Forgotten PIN 2-1.

  • Page 13: Pin Types

    4. PIN Types 4-1. Management PIN - This PIN is for use by the person in charge of the Management Office. - By default, this PIN is set as 4321. - For convenience, hereafter management PIN. 4-2. Building PIN - This is the common PIN for each main entrance. - By default, this PIN is set as 1234.

  • Page 14: Setting Pin

    5. Setting PIN 5-1. Management PIN Setup P - Old Management PIN - E - 0 - E - New PIN -E Management PIN must be 4-digits long. 0000 will not be recognized as a valid PIN. Press the Press the Program button (P). Enter the old PIN 4321.
  • Page 15 5-2. Building PIN Setup P - Old Building PIN - E - 1 - E - New PIN - E Building PIN must be 4-digits long. 0000 will not be recognized as a valid PIN. Press the Press the Program button (P). Enter the old PIN 1234.
  • Page 16 5-3. Household PIN Setup K - Program Number - E - Household Number - E - Old Household PIN - E - New PIN - P Household PIN must be 4-digits long. 0000 will not be recognized as a valid PIN. This method of Household PIN change may vary depending on household interphone types.

  • Page 17: Household Pin Confirmation

    6.Household PIN Confirmation 6-1. Household PIN Confirmation P - Building (Management) PIN - E - Program Number - E - Household Number - E Press the Press the Program button (P). Enter the Building (Management) PIN. Call button (E). Press the Press the Household Number.

  • Page 18: Configuring Building And Serial Numbers In The Main Entrance Interphone

    7.Configuring Building and Serial Numbers in the Main Entrance Interphone This feature must be performed for it automatically configures Building and Serial numbers when Households or the Guardhouse is paged from the Main Entrance. Up to 99 Main Entrance interphones can be installed per each building. 7-1.
  • Page 19 7-2. Configuring Serial Number from the Main Entrance Interphone P - Building (Management) PIN - E - 3 - E - Serial Number - E Press the Press the Program button (P). Enter the Building (Management) PIN. Call button (E). Press the Call button (E).

  • Page 20: Using Remote Cardkeys (Rf/Id) - Optional

    8. Using Remote Cardkeys (RF/ID) - Optional 8-1. Testing Remote Cardkeys P - Building (Management) PIN - E - 9 - E - Card Test - X (Cancel) This feature is used to test Remote Cardkeys. Press the Press the Program button (P). Enter the Building (Management) PIN.
  • Page 21 8-2. Remote Cardkey Registration P - Building (Management) PIN - E - 10 - E - Card Registration - X (Cancel) Press the Enter the Building (Management) PIN. Press the Program button (P). Call button (E). ex) Building PIN Press the Card Here Press the Press the Call button (E).
  • Page 22 8-3. Individual Deletion of Remote Cardkeys P - Building (Management) PIN - E - 12 - E - Card Deletion - X (Cancel) Press the Enter the Building (Management) PIN. Press the Program button (P). Call button (E). ex) Building PIN Press the Card Here 1.
  • Page 23 8-4. Confirming Remote Cardkey Registration P - Building (Management) PIN - E - 13 - E - Card Confirmation - X (Cancel) Press the Enter the Building (Management) PIN. Press the Program button (P). Call button (E). ex) Building PIN Press the Press the Card Here Program Number (13).
  • Page 24 8-5. All Remote Cardkey deletion P - Building (Management) PIN - E - 11 - E - E Refrain from deleting all Remote Cardkeys, except for during installation. Press the Enter the Building (Management) PIN. Press the Program button (P). Call button (E).
  • Page 25 8-6. Remote Cardkey Capacity Expansion P - Building (Management) PIN - E - 19 - E - 0 - E: Maximum 2048 Cards can be registered. P - Building (Management) PIN - E - 10 - E - 1 - E: Unlimited number of Cards can be registered.

  • Page 26: Surveillance Monitor Configuration

    9. Surveillance Monitor Configuration P - Building (Management) PIN - E - 4 - E - 0 - E: Surveillance disabled. P - Building (Management) PIN - E - 4 - E - 1 - E: Surveillance enabled. This feature provides entrance surveillance of the Main Entrance to a separate monitor by using the Camera from the Main Entrance Interphone.

  • Page 27: Door Release Time Setup

    10. Door Release Time Setup P - Building (Management) PIN - E - 5 - E - Door Release Time - E This feature adjusts the door release time. Enter the Building (Management) PIN. Press the Press the Program button (P). ex) Building PIN Call button (E).

  • Page 28: Page Tone Selection

    11. Page Tone Selection P - Building (Management) PIN - E - 7 - E - 0 - E: Melody Tone P - Building (Management) PIN - E - 7 - E - 1 - E: Bell (Ringer) This feature sets the Recall tone heard when Households or the Guardhouse is paged from the Main Entrance.

  • Page 29: Wiring Method Selection

    12. Wiring Method Selection P - Building (Management) PIN - E - 6 - E - 4 - E: 4-wire Common Method (12-wire common) P - Building (Management) PIN - E - 6 - E - 8 - E: 8-wire Common Method Video images from the Main Entrance cannot be viewed in the Household when the 8-wire Common Method has been selected.

  • Page 30: Video Out Impedance Adjustment

    13. Video Out Impedance Adjustment P - Building (Management) PIN - E - 8 - E - 0 - E: Short Distance P - Building (Management) PIN - E - 8 - E - 1 - E: Long Distance By default, the unit is set for short distance. Do not change if possible.

  • Page 31: Household Interphone Diagnosis

    14. Household Interphone Diagnosis P - Building (Management) PIN - E - 14 - E - Household Number - E This feature checks for the Household Interphone’ s operating conditions. Press the Enter the Building (Management) PIN. Press the Program button (P). Call button (E).
  • Page 32 ① Press the Program button (P). ( ‘Prog’ will appear) ② Enter the Building (Management) PIN. ③ Press the Page button (E). ④ Enter number 14 (Household Interphone Diagnosis). ⑤ Press the Page button (E). ( ‘Subt’ will appear) ⑥ Enter the Household Number, then press the Program button. ⑦...

  • Page 33: Household Number Registration

    15. Household Number Registration P - Building (Management) PIN - E - 15 - E - Guardhouse page from the Household - Household Number - P - Serial Numbe - E This feature is used to register Household Numbers through the Main Entrance Interphone when the Guardhouse Interphone has not been installed.
  • Page 34 <Note> What is Multi Sub Number? Refers to individual numbers for each videophone in the Household when there is more than one. The Master’ s Serial Number is 0. Sub Serial Numbers are from 1 to 9. Maximum 10 videophones can be installed in a household, and their serial numbers must not overlap.

  • Page 35: Paging The Household

    16. Paging the Household Enter theHousehold Number. Press the page button. A paging tone will sound. ex) unit 101 Press the Call button (E). Wait for a reply 17. Paging the Guardhouse Press the Guard button. Press the Page button. A paging tone will sound.

  • Page 36: Door Release Using The Household Pin

    18. Door Release Using the Household PIN Household Number - K - Household PIN - E Enter the Household Number. Press the Electronic key button. ex) To open the door of unit 101 Enter the Household PIN. Press the Page button. Press the Call button (E).

  • Page 37: Appendix (Various Program Summaries)

    20. Appendix (Various Program Summaries) Various PIN Programs 1. P - Old Management PIN - E - 0 - E - New PIN- E: Management PIN Change 2. P- Old Building PIN - E -1 - E - New PIN - E: Building PIN Change 3.

  • Page 38: Wiring Method

    21. Wiring Method 1) Guardhouse Interphone (CDS-481L) For Computer For Internal Connection Phone Line (Optional) Bk: Black Br: Brown R: Red Bk Br R Or Y G B Pu G Bk Br R Or Y G B Pu G Or: Orange Y: Yellow G: Green B: Blue...
  • Page 39 2) Main Entrance Interphone (DRC-481L) Bk: Black Br: Brown R: Red Or: Orange Y: Yellow G: Green B: Blue Pu: Purple G: Gray Infrared Sensor W: White Guardhouse (Household Videophone) (Household Videophone) Monitor Security Door Release Mechanism Security ① DC 12V used. ②...
  • Page 40 (DRC-500L) Bk: Black Br: Brown R: Red Or: Orange Y: Yellow G: Green B: Blue Pu: Purple G: Gray W: White Guardhouse (Household Videophone) (Household Videophone) Monitor Infrared Sensor Door Release Terminal Security ① Use DC 15V. ② It is designed to use a reed switch. When it is not used, connect two lines. ③...
  • Page 41 3) Household Videophone(CH-481SL) Bk: Black Telephone Br: Brown R: Red Or: Orange Household Camera Y: Yellow G: Green B: Blue Talk Pu: Purple Main Entrance G: Gray W: White Talk 1 Talk 2 Guardhouse Talk 3 Warring1 Sensor Warring2 Sensor Burglar Emergency Extention...
  • Page 42 5) Household Videophone(CAV-50FSD) Bk: Black Telephone Br: Brown R: Red Or: Orange Household Camera Y: Yellow G: Green B: Blue Talk Pu: Purple Main Entrance G: Gray W: White Talk 1 Talk 2 Guardhouse Talk 3 Warring1 Sensor Warring2 Sensor Burglar Emergency Extention...
  • Page 43 7) Household Videophone(CAV-501D) Telephone Household Camera Talk Main Entrance Talk 1 Talk 2 Guardhouse Talk 3 Warring1 Sensor Warring2 Burglar Emergency Bk: Black Br: Brown R: Red Or: Orange Y: Yellow Extention Main Entrance Call G: Green B: Blue Pu: Purple G: Gray W: White - 40 -...
  • Page 44 8) Household Videophone(CAV-482S) Telephone Household Camera Talk Main Entrance Talk 1 Talk 2 Guardhouse Talk 3 Warring1 Sensor Warring2 Sensor Burglar Emergency Burglar 1 Sensor Burglar 2 Sensor Communication Bk: Black Br: Brown R: Red Or: Orange Power Y: Yellow G: Green B: Blue Pu: Purple...
  • Page 45 9) TV-Phone Interface Adaptor(ADT-481) Unit DC Talk 1 Talk 2 Guardhouse Talk 3 Bk: Black Br: Brown R: Red Or: Orange Extention Main Entrance Call Y: Yellow G: Green B: Blue Pu: Purple Guardhouse(CKV-60T) G: Gray W: White Door Release(CKV-60T) Camera 10) Security Interface Adaptor(ADT-482) Power...
  • Page 46 11) System Map - 43 -...
  • Page 47 12) Wiring Method for Communications with the Guardhouse Bk: Black Br: Brown R: Red Or: Orange Y: Yellow G: Green B: Blue Pu: Purple G: Gray W: White Bk Br R Or Y G B Pu - 44 -...
  • Page 48 13) Main Entrance Interphone Wiring Bk: Black Br: Brown R: Red Or: Orange Y: Yellow G: Green B: Blue Pu: Purple G: Gray ※ NOTE W: White Camera 1 1. Main Entrance System CALL VD/IN VD/OUT Camera 2 2. Household Videophone CALL VD/IN VD/OUT...
  • Page 49 14) Wiring ADT-481 and CKV-60T Bk: Black Br: Brown R: Red Or: Orange Y: Yellow G: Green B: Blue Pu: Purple G: Gray W: White Guardhouse Guardhouse OPEN/CLOSE OPEN/CLOSE 15) Wiring ADT-482 and CAV-482S Telephone Telephone Household Camera Main Entrance Burglar 1 Burglar 2 Sensor...
  • Page 50 16) Installing Numerous Videophones in a Household Multysub Number Multysub Number Multysub Number Multysub Number Household Camera Loby Talk Loby Talk Loby Talk Multysub Number Multysub Number Multysub Number Multysub Number Household Camera Loby Talk Loby Talk Loby Talk ※NOTE : Guardhouse Line (8-wire Common) : Main Entrance Line (4-wire Common) : Sub Extension (6-wire Common)
  • Page 51 17) CCTV and Sensor Wiring CAMERA 1 Monitor 1 R: Red Y: Yellow B: Blue W: White CAMERA 2 Monitor 2 ※ NOTE 1. Monitor 1: To view only when being used by the Main Entrance Interphone (DRC-481L). 2. Monitor 2: Continuous surveillance of the Main Entrance. - 48 -...
  • Page 52 18) Wiring DRC-481L and CDS-481PC - 49 -...
  • Page 53 19) Wiring CDS-481PC and Multi Port - 50 -...

  • Page 54: Specifications

    22. Specifications Installation Method Flush Mounted Model DRC-481L DRC-500L Specfications Household Videophone (4-wire Common), Guardhouse Interphone (8-wire Common) Transmission System DC12V 1A(RF-1A) DC15V/1A(CS-15C) Rated Voltage Standby: 200mA, Max: 450mA DC:Standby:400mA, Max:500mA Power Consumption Hands Free (One Way) Communication Method B/W C.C.D 1/3• , COLOR C.C.D. 1/4• Imaging Device 15,735KHz/60Hz, 15,625KHz/50Hz, Scanning Frequency...
  • Page 55 MEMO - 52 -...
  • Page 57 Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea...
