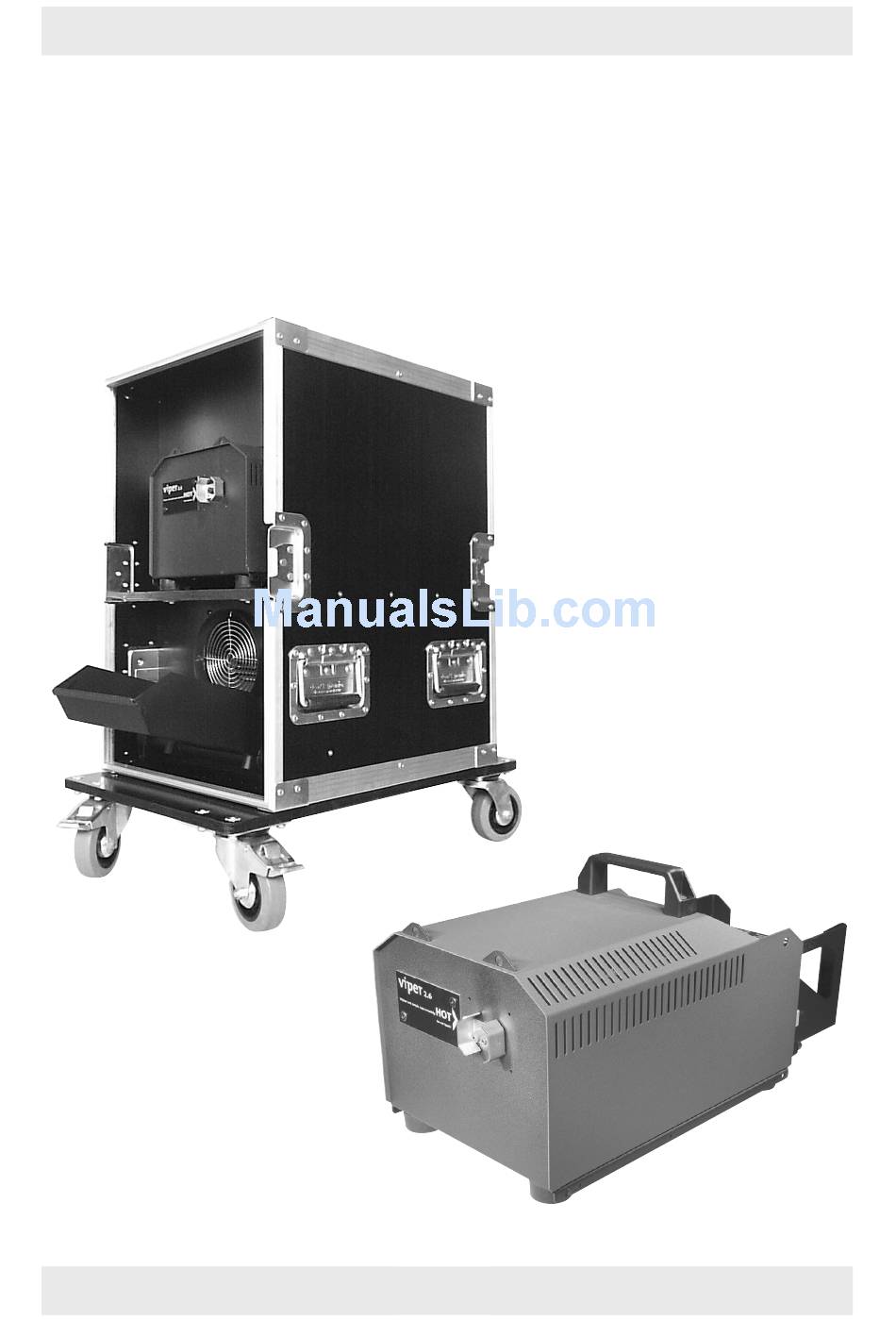

Operating manual
Viper
2.6
Viper deLuxe
a Look Solutions product
1

Advertisement

Table of Contents
loading

Related Manuals for Look Solutions Viper 2.6

Summary of Contents for Look Solutions Viper 2.6

  • Page 1 Operating manual Viper Viper deLuxe a Look Solutions product...
  • Page 2 Set of Equipment supplied – 1 Viper 2.6 or Viper deLuxe – 1 tank lid with Quick Connector – 1 manual Please check whether all the products you ordered are supplied.

  • Page 3: Table Of Contents

    2. Safety instructions 3. Description of the parts 4. Fluid 4.1 General Notes 4.2 Changing the fluid container 5. Operating the Viper 2.6 5.1 Selecting the location 5.2 Putting into operation 5.3 Switching the device off 5.4 Control choices 5.4.1 Using a fan 5.4.2 Control via DMX 512...

  • Page 4: Introduction

    1. Introduction The Viper 2.6 is a very powerful fog generator. It unites the current digital technology with proven technique and power. New features guarantee a much more simple operation – place and fog, reducing the amount of time needed to set up the machine.

  • Page 5: Safety Instructions

    2. Safety instructions A fog machine is not a toy! • Very hot steam escapes from the nozzle. Danger of getting burnt. • Occasionally very hot droplets of fluid may escape when in operation. Thus never aim at persons directly and keep a minimum distance of 3 m to the nozzle.

  • Page 6: Description Of The Parts

    3. Description of the parts Front view viper Vapour and nozzle area extremely Do not touch! 1: · Nozzle Rear view 2: · Fluid tube 3: · Fluid tube inlet 5: · Socket for external fan 4: · Fuse for external fan 6: ·...
  • Page 7 3. Description of the parts Top view · Air vents · DMX in/out · Control panel for adjusting analog in viper the DMX start address and Fuse : T5A This machine has been designed to the output 230V~/50Hz/2600W be used with waterbased glycol-fluid. Fan : max.

  • Page 8: Fluid

    4. Fluid 4.1 General Notes The Viper 2.6 has been designed to be used with Look fog fluids. The following Look fog fluids are available: Quick-Fog thick, quick disappearing fog fluid Regular-Fog thick, long lasting fog fluid Slow-Fog thick, extremely long lasting fog fluid If fluids have been used other than Look fog fluids we can‘t grant warranty on...

  • Page 9: Putting Into Operation

    (230 V/50 Hz). A „P” and two figures appear on the display. P 2 5 b. After a warm up time of approx. seven minutes the Viper 2.6 is ready to start. The green Ready-Led [22] blinks if the working temperature is reached. As soon as the final temperature is reached, the LED illumates permanently.
  • Page 10 5. Operating the Viper 2.6 Control panel (Standard-Menu) 22: Ready-LED, green 21: Timer-LED, red P 1 5 20: LED display 19: DMX-LED, yellow 18: Enter-button 17: Up/Down-buttons 16: Mode-button Abb. 1: Display shown at adjusting the pump output 2 7 5 Abb.

  • Page 11: Control Choices

    5. Operating the Viper 2.6 O F F Abb. 4: Display shown at switching off the device 5.4 control choices Please note: The Mode-button can‘t be used for scrolling through the Menu. The Mode-button has to be pressed momentarily. If the Mode-button is pressed more than two seconds, the machine will change into the Timer-Mode (see point 5.5).

  • Page 12: Adjusting The Dmx Start Address

    DMX-LED [19] shines. Now the pump and the fan can be adjusted via the desk. Please note: If a fan is connected to the machine, the Viper 2.6 uses two channels at your desk. Channel 1 = Pump, Channel 2 = Fan.

  • Page 13: Stand Alone Mode

    5. Operating the Viper 2.6 5.4.4 Stand alone The Viper 2.6 can be used in the Stand alone mode. In this mode the control of the pump and the fan must be adjusted at the machine. a) Press and release the Mode-button [16] until a „P” and two figures appear on the display [20].
  • Page 14 5. Operating the Viper 2.6 Control panel Timer-Menu (the red Timer-LED [21] shines) Adjusting of the output/pump in steps of 1% (1-99%) P 1 5 Adjusting of the wait time in minutes (0.1-99) P 0 1 Adjusting of the fog time...

  • Page 15: Operating With Internal Timer

    If the timer is in operation and you disconnect the machine from the mains cable, the Viper 2.6 will re-start in the Timer-Mode as soon as it‘s reconnected to the mains. To stop this press and hold the Mode-button [14] for more than 2 seconds or switch to „ESC“...

  • Page 16: Cleaning, Care And Maintenance

    – Take care that the machine can not get overheated. – Do not run the Viper 2.6 without any fluid, as the pump will run dry. – Wipe up spiled Fluid immediately. Moisture – also fluid – can destroy the electric of the machine.

  • Page 17: Troubleshooting

    7. Troubleshooting The fog machine does not fog • Check external control signals • Check mains supply • Check fluid tank (empty?) • Check for correct connections at the fluid bottle • Check for fluid in the fluid tube • Check if fluid filter is clogged •...

  • Page 18: Specifications

    8. Specifications Fog generator Procedure: vaporizing fog generator Power requirement: 2600 Watt Voltage: 230 V/ 50 Hz Warm up time: approx. 7 min. Fluid consumption: at max. output 240 ml/min at cont. output 70 ml/min Fluid tank capacity: 5 Liter Fog output: adjustable in 99 steps, steps à...

  • Page 19: Warranty Conditions

    9. Warranty Conditions For the fog machine Viper 2.6/Viper deLuxe Look‘ guarantee is: 1. Free of charge, subject to the following conditions (No. 2 - 6) we will repair any defect or fault in the unit if it is caused by a proven factory fault and has been advised immediately after appearance and within 24 month of delivery to the end user.
  • Page 20 Look Solutions product...
