Summary of Contents for Look Solutions Power-Tiny

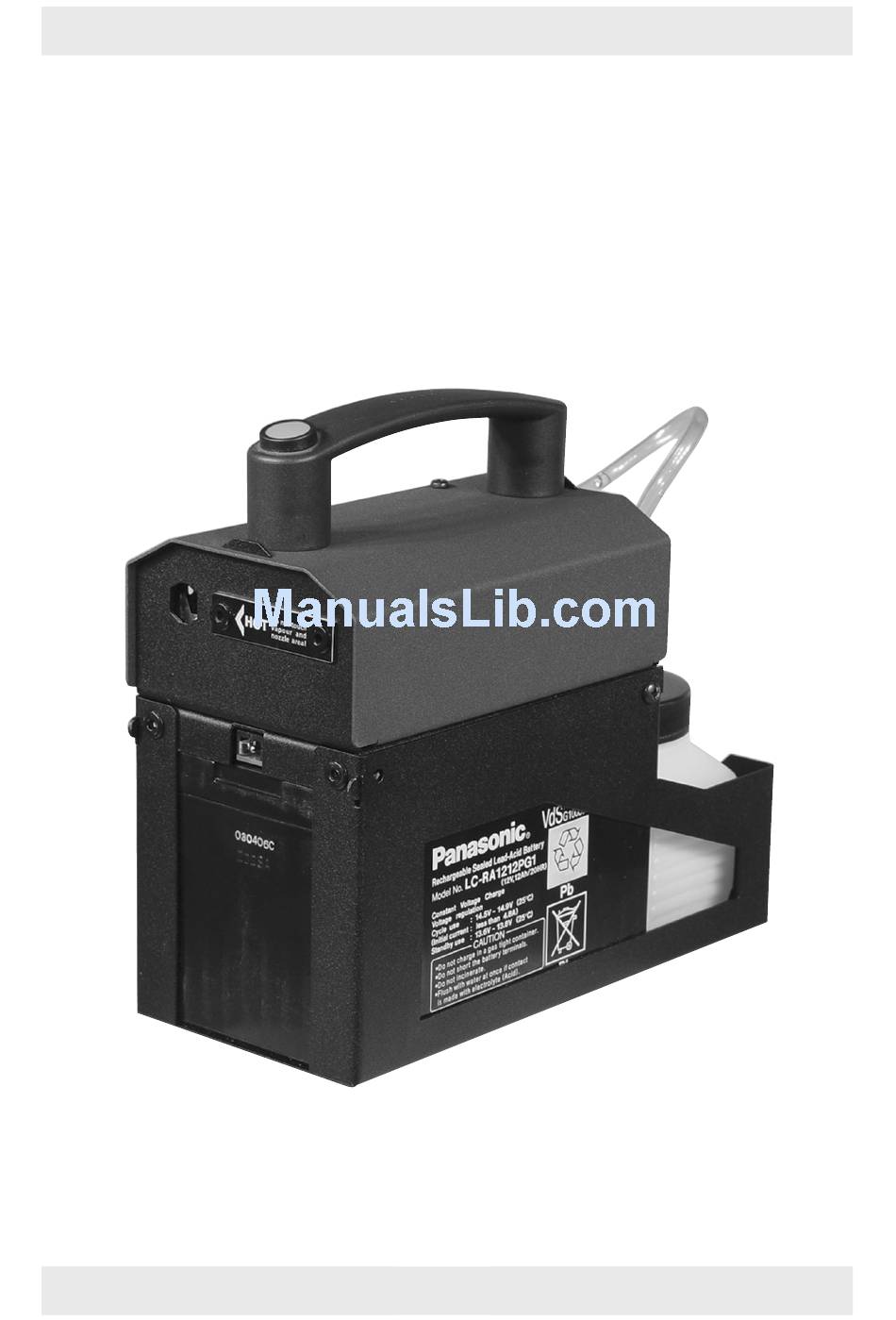

- Page 1 Operating manual Power-Tiny a Look Solutions product...
- Page 2 Set of Equipment supplied – 1 Power-Tiny with battery pack and fluid tank 250 ml – 1 charger – 1 bottle of fluid 250 ml When the order includes a radio remote, the following items are supplied additionally: – 1 receiver with 3 pin XLR-plug –...
-
Page 3: Table Of Contents
Contents 1. Procedure of the Power-Tiny 2. Safety Instructions 3. Description of the parts 4. Fluid 4.1 General 5. Operating the Power-Tiny 5.1 Selecting the Location 5.2 Mounting the Power-Tiny 5.3 Starting-up the Power-Tiny 5.4 Control choices 5.4.1 0 - 10 Volt (+) DC control 5.4.2 Control via Radio remote... -
Page 4: Procedure Of The Power-Tiny

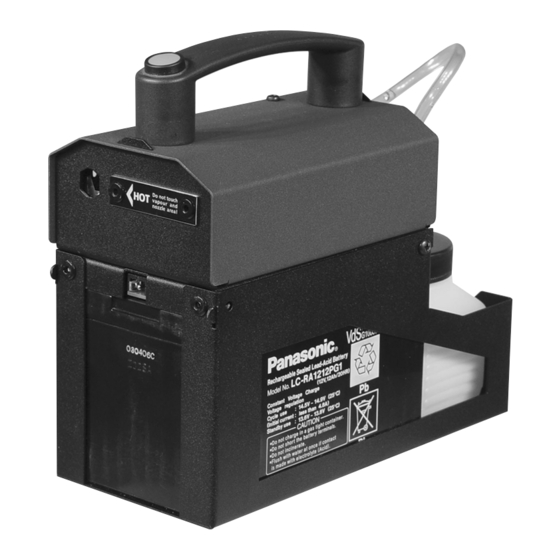

1. Procedure of the Power-Tiny The Power-Tiny is a battery-operated, microprocessor-controlled fog generator. It is based (as most fog generators) on the vaporizer principle, i.e. a glycol fluid is evaporated and condenses into fog when leaving the fog nozzle. However, the Power-Tiny only heats when fog is actually needed. -
Page 5: Safety Instructions
• Fog may activate smoke detectors. • Use only Look Solutions Tiny-Fluid in this machine. Artificially-made fog can be produced in many different ways. The method used here to produce fog, with a device which works according to the vaporizer principle, is the most harmless one. -
Page 6: Description Of The Parts
3. Description of the parts 1: · Start button 2: · Fog nozzle 3: · Socket for charger 4: · Battery pack (Battery with housing, PCB, fuse and connector) 5: · Fluid tube 6: · Battery connector (Speakon) 7: · Screws (thumb screw) 8: ·... -
Page 7: Fluid
• have a relative air humidity of less than 80%. 5.2 Mounting the Power-Tiny If the Power-Tiny is to be built in props or similar, make sure that a fog-free air supply is guaranteed. Too high fog concentration can condense inside the machine and can result in damages caused by moisture. -
Page 8: Control Choices
DMX 512: Connect the DMX-converter (DMXit, available as an option) to the machine, using the 3pin XLR-plug [12]. Now the Power-Tiny can be connected to a DMX desk and can be controlled via DMX. Timer: Connect the Timer (TIMEit, available as an option) to the machine, using the 3pin XLR-plug [12]. -
Page 9: Changing The Battery Pack
To change the battery pack [4] unplug the battery connector [6] from the machine. Unscrew the thumb screws [7] and disconnect machine and battery pack. Put the Power-Tiny on a new battery pack and fix it with the screws. Connect the battery pack to the machine. -
Page 10: Capacity
6. The battery pack 6.1 Capacity The battery has a capacity of 12 Ah and is supplied in a charged status. A fully- charged battery can generate more than 100 fog emissions of 4-5 seconds. The permanent fogging time amounts to 10 minutes. When used correctly, the battery holds its capacity for several years and/or some hundred charge/discharge cycles. -
Page 11: Technical Data
6. The Battery pack • Avoid short-circuits – Do not short-circuit the Speakon-cable. This will destroy the FKS-fuses. • Keep away from fire – Do not expose the battery to fire or burn it. The battery might explode. 6.5 Technical Data Model Lead-gel battery Output voltage... -
Page 12: General Notes
• short circuit within the battery or in the output lines • the battery voltage can not reach 13.8 V (especially in the case of old batteries) 2) Protect the unit against rain 3) Use the charger exclusively for charging the Power-Tiny battery 7.3 Technical Data Model... -
Page 13: Service And Maintenance
• Clean the unit from time to time, especially if you use it in a built-in state/ condition. • If the Power-Tiny is not in use for a longer time, please take care that the battery is disconnected. The battery should be charged before storing. -
Page 14: Technical Data
9. Technical data Procedure Vaporizing fog generator Power requirement 400 Watts Voltage 12 V battery Warm up time 1 sec Fluid tank capacity 250 ml Fluid consumption 10 ml/min. with continuous output Continuous output with battery 10 min. Temperature control microprocessor Control start button... -
Page 15: Warranty Conditions
10. Warranty conditions For the fog machine Power-Tiny Look‘ guarantee is: 1. Free of charge, subject to the following conditions (No. 2 - 6) we will repair any defect or fault in the unit if it is caused by a proven factory fault and has been advised immediately after appearance and within 12 months of delivery to the end user. - Page 16 Look Solutions product...
