Summary of Contents for Look Solutions Cryo-Fog

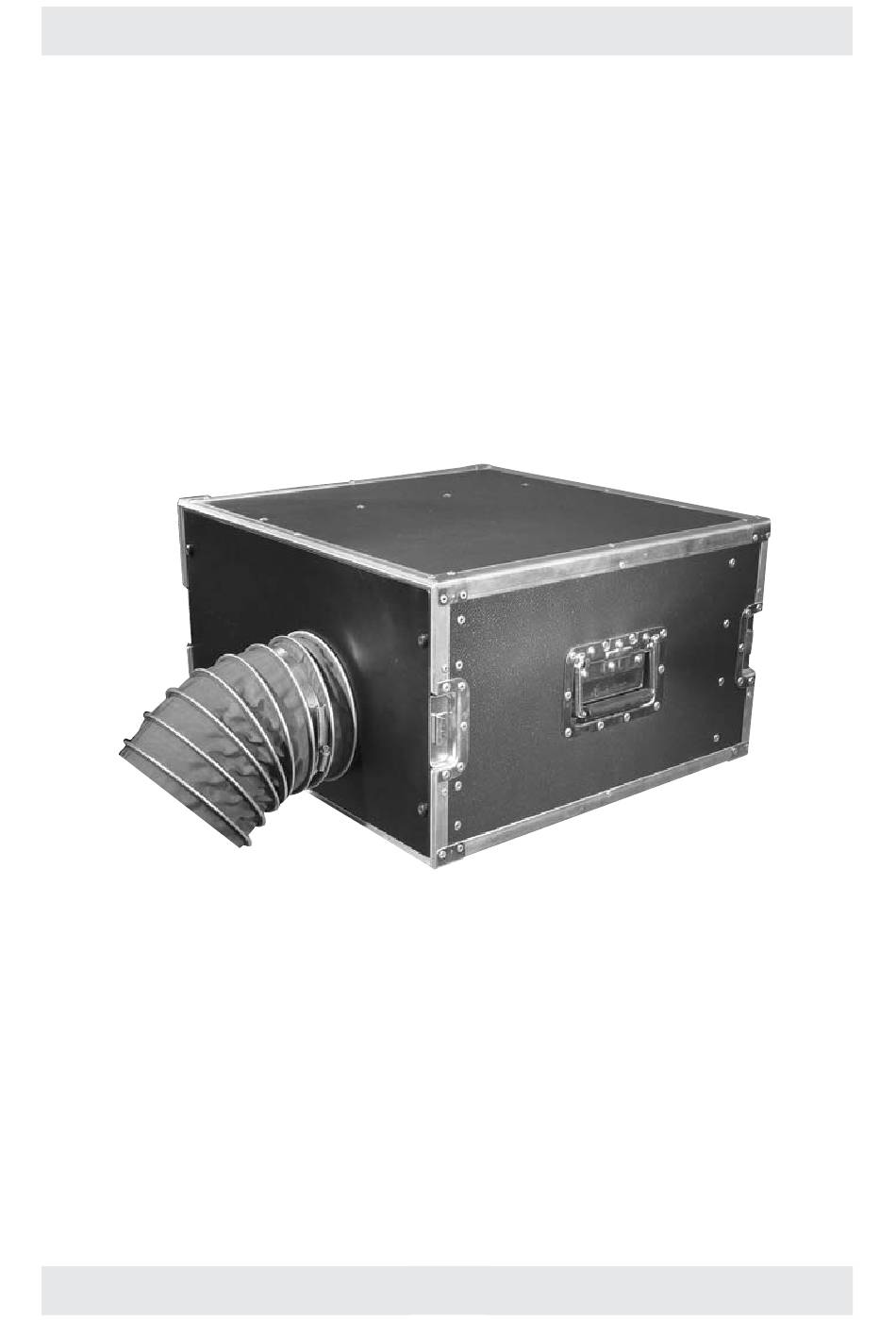

- Page 1 Operating manual Cryo-Fog a Look Solutions product...
- Page 2 Set of Equipment supplied – 1 Cryo-Fog – 1 Connecting tube complete with connectors to link the machine with the -Tank, 5 m – 1 Tank lid with Quick Coupling – 1 Operating manual Please check whether all the products you ordered are supplied.
-
Page 3: Table Of Contents
2. Safety instructions 3. Description of the parts 4. Fluid 4.1 General Notes 4.2 Changing the fluid container 5. Operating the Cryo-Fog 5.1 Selecting the location 5.2 Putting into operation 5.3 Switching the device off 5.4 Disconnect the machine from the tank 5.5 Control choices... -
Page 4: Introduction
The Cryo-Fog is a powerful 2200 Watt low fog machine. The Cryo-Fog is a fog generator, a fan and a cooling chamber built into a compact flightcase (26.5 x 20 x 12 in) with space next to the fog generator to held a 5 L bottle of fluid. -
Page 5: Safety Instructions
2. Safety instructions A fog machine is not a toy! • Make sure, that all persons who work with the tank and the gas are professio- nals. Incorrect use can cause the risk of suffocation! • Carbon dioxide is not toxic but may cause asphyxiation in high concentrations. •... - Page 6 3. Descriptions of the parts Front view Do not touch vapour and nozzle area! C A U T I O N ! Extrem temperatures (hot & cold) 1: · Fog nozzle Tank lid 9: · Brass coupling 10: · Brass collar 11: ·...
-
Page 7: Description Of The Parts
2. Exhaust the CO remaining in the hose (display: Co2 or DMX: Channel 3) Serial no. Made by OTTEC Technology GmbH for Look Solutions. Made in Germany. 2: · Fluid tube 6: · DMX in/out 3: · Fluid tube inlet 7: ·... -
Page 8: Fluid
4. Liquid 4.1 Introduction The Cryo-Fog can be used with the following Look-fog fluids: For low fog use only the recommended Cryo-Fog Fluid. This is a special fluid, high concentrated and quick disappearing. For use as a normal fog machine:... -
Page 9: Operating The Cryo-Fog
5. Operating the Cryo-Fog 5.1 Selecting the location The location in which the Cryo-Fog is to be operated must – be dry, – be free from dusty or polluted air, – be free from vibrations, – be a non-flammable place or surface, –... -
Page 10: Switching The Device Off
When you switch off the DMX signal, the machine will be switched into the post-run-mode automatically after 15 seconds. Note: Please make sure that the Cryo-Fog is not disconnected too early to allow the fan to run until the cooling chamber is dry. -
Page 11: Disconnect The Machine From The Tank
At operation via DMX: The Cryo-Fog needs three channels on your desk (first channel = Pump, second channel = Fan, third channel = Cooling). Run the cooling channel (third channel) at full until no noise can be heard from the machine –... - Page 12 5. Operating the Cryo-Fog Menue 20: Ready-LED, green 19: Cooling-ready-LED, red P 1 5 18: Display 17: DMX-LED, yellow 16: Enter button 15: Up/Down buttons 14: Mode button Fig. 1: Display shown for adjusting the pump output 2 7 5 C o 2 Fig.
-
Page 13: Control Choices
DMX 512 this data takes priority over 0-10 V (+) DC and Stand alone operation. 5.5.1 Operating via DMX 512 Connect the Cryo-Fog to a DMX-desk using the 5pin XLR socket [8] on the back of the machine. As soon as the machine receives a correct DMX signal, the yellow DMX-LED [17] is illuminated. -
Page 14: Stand Alone Mode
The DMX mode is the only mode where the Cryo-Fog can be used as a normal fog machine. In this case, use only the first two channels for pump and fan and leave the third one in position “0“. -
Page 15: Wiring Of The Connectors
5. Operating the Cryo-Fog b. Press the Enter button [16] once. The fan start to run and after approx. three seconds the valve for the CO opens. The machine now starts cooling the chamber but will not start to fog. As soon as the cooling chamber is cold enough, the red LED [19] illuminates and the fogging process starts. -
Page 16: Cleaning, Care And Maintenance
– Take care that the machine can not get overheated. – Do not run the Cryo-Fog without any fluid, as the pump will run dry. – Wipe up spilled fluid immediately. Moisture – also fluid – can destroy the electric parts of the machine. -
Page 17: Troubleshooting
7. Troubleshooting The fog machine does not produce low fog: • Cooling chamber will not get cool enough – CO tank is empty or the pressure is too low – CO tube too long or too warm (no liquid CO reach the machine) The fog machine does not fog: –... -
Page 18: Specifications
7 min. Temperature control: Microprocessor controlled Overheating protection: Heater block/Thermostat Pump/Thermal switch Dimensions (L x W x H): 26.5 x 20 x 12 in Weight without tank: 62 lbs Manufactured for: Look Solutions - Fog machines made in Germany... -
Page 19: Warranty Conditions
9. Warranty conditions For the fog machine Cryo-Fog Look‘ guarantee is: 1. Free of charge, subject to the following conditions (No. 2 - 6) we will repair any defect or fault in the unit if it is caused by a proven factory fault and has been advised immediately after appearance and within 12 months of delivery to the end user. - Page 20 Look Solutions product...
