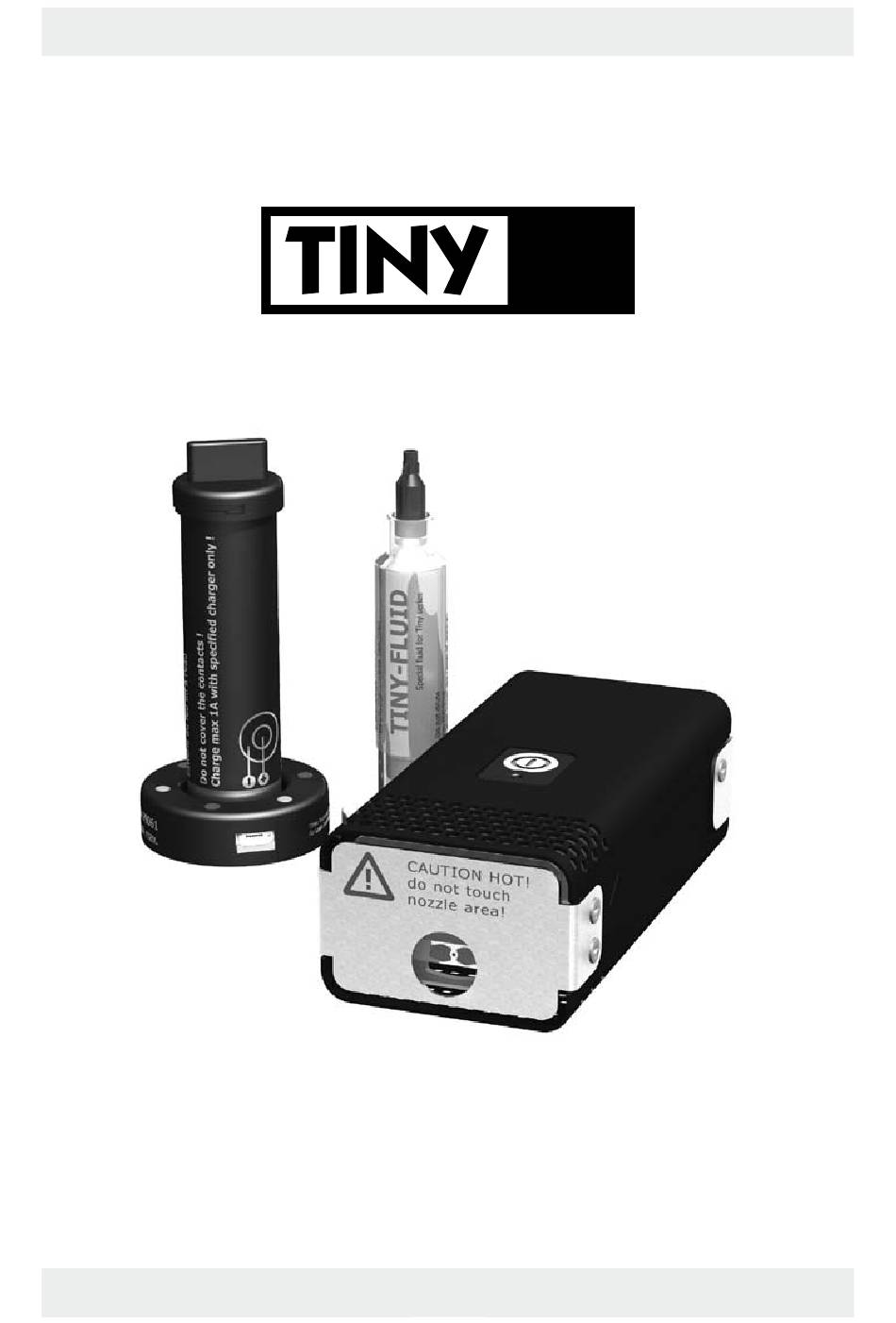

- Page 1 Operating manual a Look Solutions product...
- Page 2 Set of Equipment supplied – 1 Tiny S – 2 rechargeable batteries 3.7 V – 1 remote with cable – 1 charger – 1 cable with USB- and Micro-USB-plug – 1 wall wart 5V – 6 fluid reservoirs filled with 5 milliliter fluid each...
-
Page 3: Table Of Contents
Contents 1. Procedure of the Tiny S 2. Safety Instructions 3. Descriptions of the parts 4. Fluid 4.1 General 4.2 Refilling the fluid reservoir 5. Operating the Tiny S 5.1 Selecting the Location 5.2 Mounting the Tiny S 5.3 Starting-up the Tiny S 5.4 Status Display of the battery... -
Page 4: Procedure Of The Tiny S
The Tiny S is a battery-powered, microprocessor-controlled mini fog generator. It is based (as most fog generators are) on the vaporizer principle, i.e. a glycol fluid is evaporated and condenses into fog when leaving the fog nozzle. However, the Tiny S only heats when fog is actually produced. -
Page 5: Safety Instructions
2. Safety instructions A fog machine is not a toy! • Very hot steam escapes from the nozzle. Risk of scalding. • Occasionally very hot droplets of fluid may escape when in operation. Thus never aim at persons directly and keep a minimum distance of 3 m to the nozz- •... -
Page 6: Descriptions Of The Parts
3. Description of the parts 1: · Ventilation slots 2: · Fog nozzle 3: · Screws to unscrew the stainless steel hood 4: · Start button 5: · Yellow LED 11: · Fluid reservoir to be screwed in 13: · Battery to be screwed in 14: ·... - Page 7 3. Description of the parts · Calibrating button to calibrate the vapori- · Socket for connecting the cable of the control panel · Slot for battery · Slot for fluid reservoir 6: · Screws for connecting the vaporizer to the connecting pins 10: ·...
-
Page 8: Fluid
• have a relative air humidity of less than 80%. 5.2 Mounting the Tiny S If the Tiny S is be built into props or similar, make sure that a fog-free air supply is guaranteed. Too high a fog concentration can condense inside the machine and can... -
Page 9: Starting-Up The Tiny S
(see point 7.1) If the Tiny S is not generating fog, the machine switches off automatically after approx. 1 minute. The yellow LED [5] does not light anymore. The machine can still be activated... -
Page 10: Status Display Of The Battery
5. Operating the Tiny S 5.4 Battery Status Display The yellow LED [5] on the Tiny S indicates (among other things (see point 7.2)) how strong the battery still is and/or when it may need to be recharged. 1) LED flashes slowly: Battery capacity of 15% –... -
Page 11: The Rechargeable Battery
The supplied battery is a maintenance-free 3.7V Lithium-Ion battery. It can be used in any position. The connection to the Tiny S is established by putting the battery into the slot at the back of the machine. 6.2 Capacity and Lifetime The battery has a capacity of 1500 mAh and is supplied in a 50% charged status. - Page 12 6. The Battery Disconnect the battery from the Tiny S after each use and recharge it, or, when the yellow control-LED in the machines lid [5] flashes fast, recharge immediately. Avoid complete discharge (control-LED does not light at all) because this will cause irreversible damage to the battery-pack.
-
Page 13: Technical Data
6. The Battery 6.6 Technical Data Model Lithium-Ion battery Output voltage 3.7 V Capacity 1500 mAh Temperature range 10° C to 40° C Fuse 7.5 A Miniblade, Art. No. 40177 Dimensions L = 7.7 cm, Ø = 2.0 cm Weight 50 g... -
Page 14: Service And Maintenance
7.1.1 Removal of the Vaporizer a) Separate the Tiny S from the battery. To remove the battery, press it slightly into the slot, rotate it anti-clockwise and withdraw it. b) Unscrew the four screws [3] with a suitable screwdriver to release the stainless steel hood. -
Page 15: Calibrating The Vaporizer
7. Service and Maintenance 7.1.3 Calibrating the Vaporizer Since all vaporizers have different electrical qualities, the Tiny S must be recalibrated after every exchange of the vaporizer. IMPORTANT: During the calibration process the vaporizer temperature must be at 20° C. Never start fogging before the calibrating process. Too cold or too warm units must first adapt to the room temperature (20°... -
Page 16: If The Machine Does Not Work Perfectly
Vaporizer cannot be calibrated: Try once again to calibrate the vaporizer as explained in point 7.1. If this should not help, the vaporizer is broken and cannot be used. – lights permanently The battery is completely discharged: Disconnect the Tiny S from the battery-pack and recharge the battery. -
Page 17: Care And Maintenance
Dimensions Tiny S (L x W x H) 10.3 x 5.0 x 3.5 cm Weight Tiny S incl. fluid accessoir and battery approx. 250 g Manufactured for: Look Solutions - Fog machines made in Germany · Buenteweg 33 · DE - 30989 Gehrden... -
Page 18: Warranty Conditions
9. Warranty conditions For the miniature fog machine Tiny S Look‘ warranty is: 1. Free of charge, subject to the following conditions (No. 2 - 6) we will repair any defect or fault in the unit if it is caused by a proven factory fault and has been advised immediately after identification and within 24 months of delivery to the end user. - Page 20 Look Solutions product...
