Operating manual
FX
USA
1
a Look Solutions product

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tiny FX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Look Solutions Tiny FX

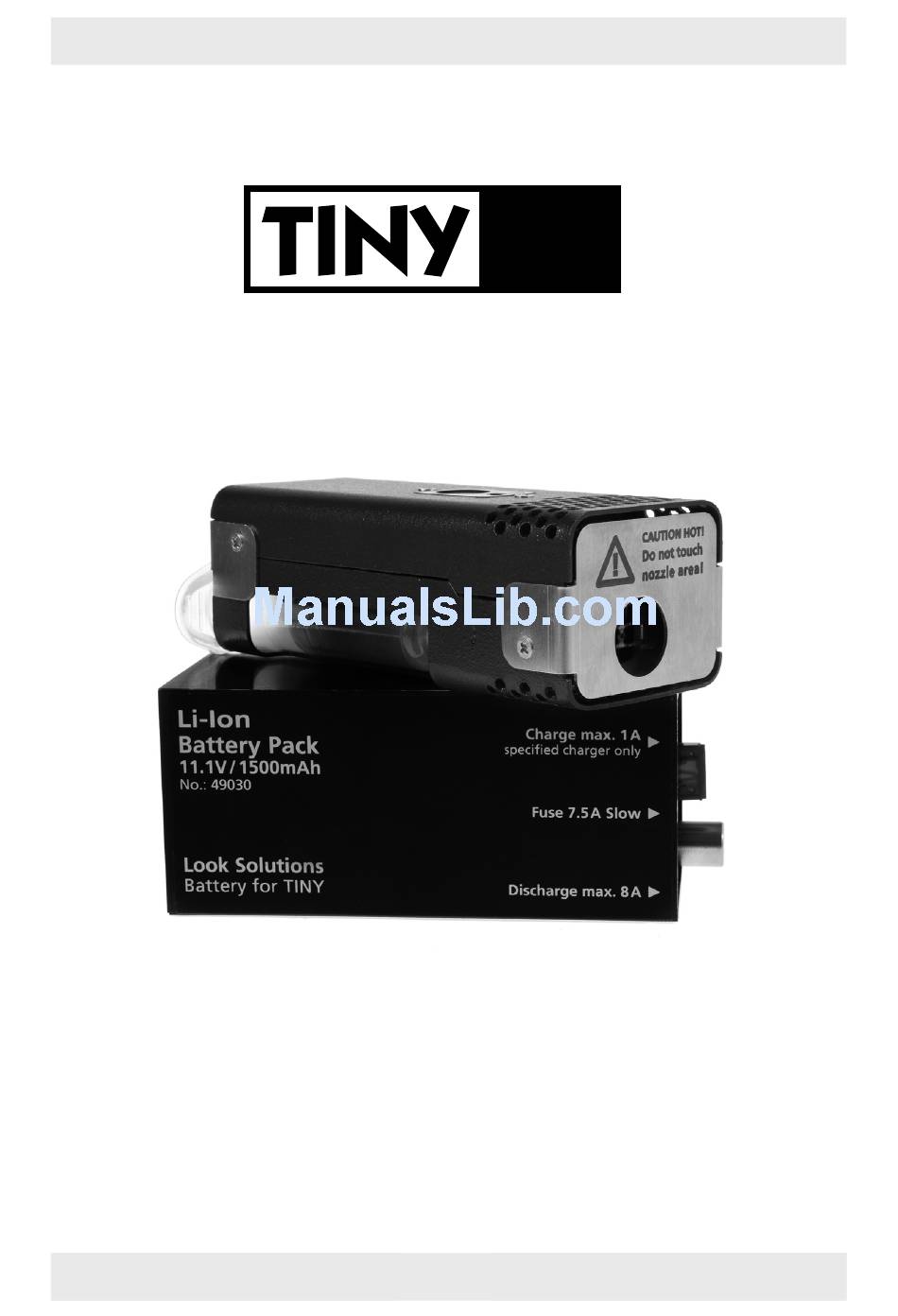

  • Page 1 Operating manual a Look Solutions product...
  • Page 2 Set of Equipment supplied – 1 Tiny FX – 1 battery cable with push-pull plugs – 1 remote with cable – 1 rechargeable battery-pack 11.1 V – 1 charger – 6 fluid reservoirs filled with 5 milliliter fluid each to be screwed in...
  • Page 3: Table Of Contents

    Contents 1. Procedure of the Tiny FX 2. Safety Instructions 3. Descriptions of the parts 4. Fluid 4.1 General 4.2 Refill the fluid reservoir 5. Operating the Tiny FX 5.1 Selecting the Location 5.2 Mounting the Tiny FX 5.3 Starting-up the Tiny FX 5.4 Programming of a fixed fogging time...
  • Page 4 1. Procedure of the Tiny F07 The Tiny FX is a battery-powered, microprocessor-controlled mini fog generator. It is based (as most fog generators are) on the vaporizer principle, i.e. a glycol fluid is evaporated and condenses into fog when leaving the fog nozzle. However, the Tiny FX only heats when fog is actually produced.
  • Page 5: Safety Instructions

    2. Safety instructions A fog machine is not a toy! • Very hot steam escapes from the nozzle. Danger of getting burnt. • Occasionally very hot droplets of fluid may escape when in operation. Thus never aim at persons directly and keep a minimum distance of 10 ft from the nozzle.
  • Page 6: Descriptions Of The Parts

    3. Description of the parts 1: · Ventilation slots 4: · Start button 2: · Fog nozzle 5: · Yellow LED 3: · Screws to unscrew the 11: · Fluid reservoir stainless steel hood to be screwed in · Start button ·...
  • Page 7 3. Description of the parts · Socket for connecting the cable of the control panel or the receiver of the radio remote · Socket for · Connector for connecting fluid reservoir the battery cable · Calibrating button to calibrate the va- porizer 6: ·...
  • Page 8: Fluid

    4. Fluid 4.1 General The Tiny FX is built to be used with original Look Tiny-Fluid. Use of other liquids will clog the vaporizer and void the warranty. 4.2 Refilling the fluid reservoir The fluid reservoir can be refilled using the delivered refilling set [12]. Thus, the reservoirs can be used several times.
  • Page 9: Operating The Tiny Fx

    5. Operating the Tiny FX 5.2 Mounting the Tiny FX If the Tiny FX is to be built in props or similar, make sure that a fog-free air supply is guaranteed. Too high a fog concentration can condense inside the machine and can result in damages caused by moisture.
  • Page 10: Programming Of A Fixed Fogging Time

    The programmed fogging time cannot be recalled by pressing the start button in the machines lid [4]. If the start button in the lid is pressed, the Tiny FX will produce fog as long as the button is held down, regardless of whether a fogging time has been programmed in.
  • Page 11: Wiring Of Connectors

    5. Operating the Tiny FX 5.5 Battery Status Display The yellow LED [5] on the Tiny FX indicates (among other things (see point 7.2)) how strong the battery still is and/or when it must be recharged. 1) LED flashes slowly: Battery capacity of 15% –...
  • Page 12: Operating And Storing

    – Disconnect the charger from the battery. Disconnect the battery-pack from the Tiny FX after each use and recharge it, at the latest when the yellow control-LED in the machines lid [5] flashes fast.
  • Page 13: Fuse

    6. The Battery 6.6 Safety Regulations – Keep away from children – Do not heat up over 140° F (for example by sun exposure) or expose to fire – Keep away from moisture – Do not short-circuit – Do not dismantle or deform –...
  • Page 14: Service And Maintenance

    7. Service and Maintenance 7.1 Changing the Vaporizer The micro vaporizer especially developed for the Tiny FX has a limited working life. Depending on application duration, the fogging output will reduce after a while and the vaporizer has to be changed.
  • Page 15: Calibrating The Vaporizer

    7. Service and Maintenance 7.1.3 Calibrating the Vaporizer Since all vaporizers have different electrical qualities, the Tiny FX must be recalibrated after every exchange of the vaporizer. IMPORTANT: During the calibration process the vaporizer temperature must be at 70° F. Never start fogging before the calibrating process. Too cold or too warm units must first adapt to the room temperature (70°...
  • Page 16: If The Machine Does Not Work Perfectly

    7. Service and Maintenance 7.2 If the machine does not work perfectly 7.2.1 There will be no fog, if… – the battery is discharged (yellow charge indicator (LED) [5] lights up permanently, the pump automatically cuts off) => charge the battery –...
  • Page 17: Care And Maintenance

    7. Service and Maintenance 7.3 Care and Maintenance To ensure perfect performance of the Tiny FX, you should consider the following notes: – Make sure the fluid bottle as well as the connecting spout and the quick connector are clean and free from small bits of dirt.
  • Page 18: Technical Data

    10 min. Temperature control Microprocessor Control Cable remote Radio remote Dimensions Tiny FX (L x W x H) 3.8 x1.7 x 1.3 in Weight Tiny FX approx. 6.3 oz Look Solutions Manufactured for - Fog machines made in Germany...
  • Page 19: Warranty Conditions

    10. Warranty conditions For the miniature fog machine Tiny FX Look‘ warranty is: 1. Free of charge, subject to the following conditions (No. 2 - 6) we will repair any defect or fault in the unit if it is caused by a proven factory fault and has been advised immediately after appearance and within 12 months of delivery to the end user.
  • Page 20 Look Solutions product...
