Summary of Contents for Atlona AT-UHD-SW-52ED

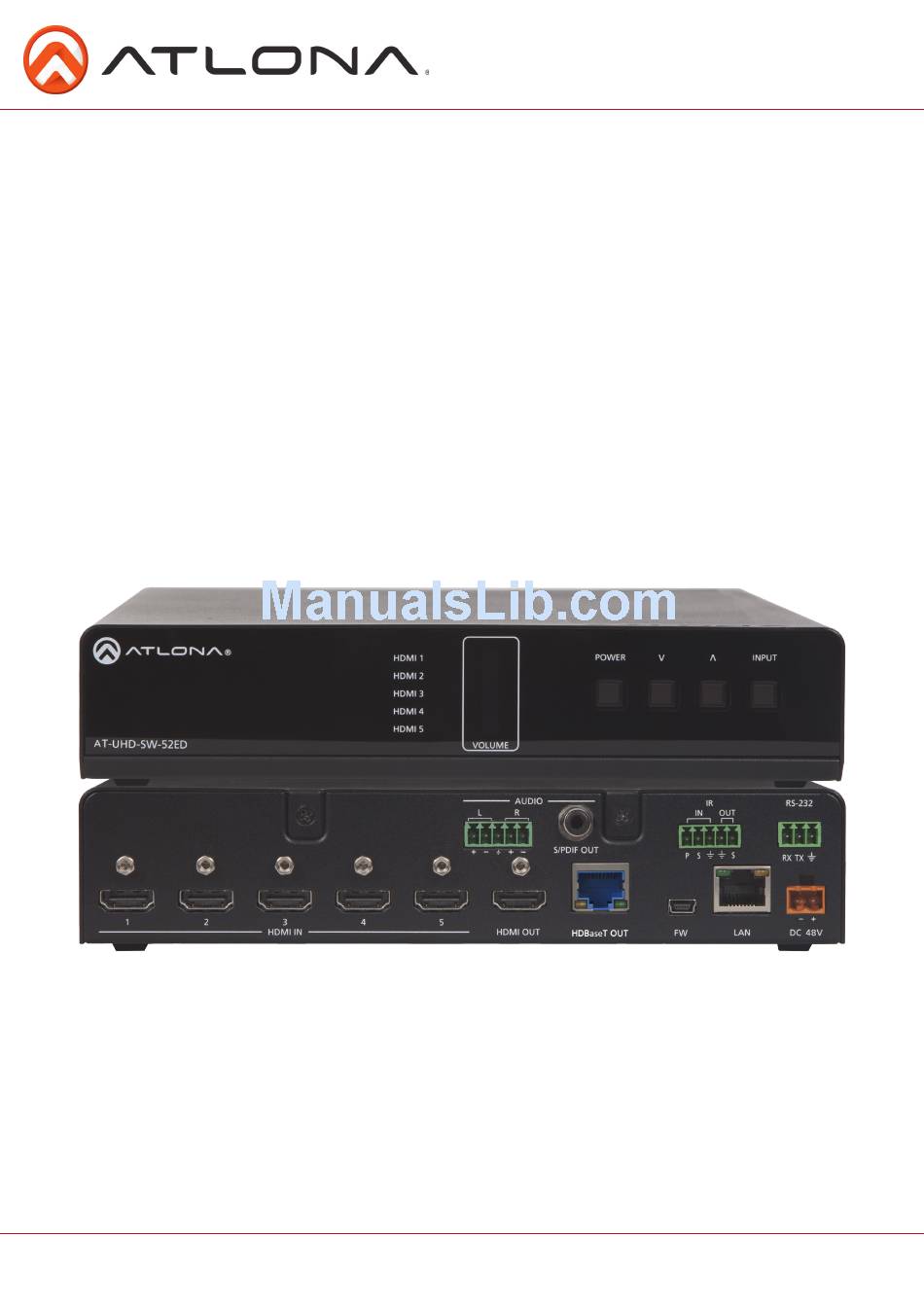

- Page 1 4K/UHD 5 Input HDMI Switcher with Mirrored HDMI and HDBaseT Outputs and PoE AT-UHD-SW-52ED User Manual Please check http://www.atlona.com/UHD-SW-52ED.html for the most recent firmware update or manual. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
....................6 7. Audio ....................7 8. TCP/IP ....................8-13 9. RS-232 ....................14-16 10. Connection Diagram ....................17 11. Specifications ....................18 12. Safety ....................19 13. Warranty ....................20-21 14. Registration ....................21 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Two unit mounting will use two short rack ears (the second will be in the box with the second unit) and two mountings plates to affix the two units together inside the rack. Wall/table mounting will use both mounting plates to affix the unit to a table or wall. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 4: Category Cable
Using the wrong size of connectors may result in interference causing loss of signal. Important! “EZ RJ45 connectors” are not recommended with HDBaseT extenders. Doing so may result in stray EMI/RFI signals to be picked up and interfere with audio and video transmission. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -

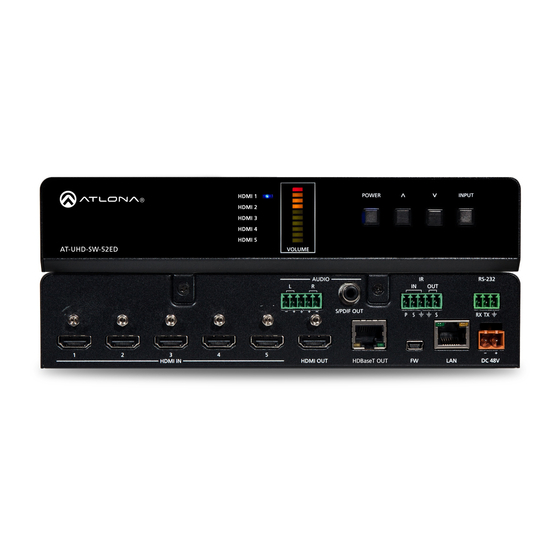

Page 5: Panel Descriptions
INPUT HDMI 2 HDMI 3 HDMI 4 HDMI 5 VOLUME AT-UHD-SW-52ED AUDIO RS-232 1. HDMI LEDs - Illuminates to indicate the selected source S/PDIF OUT 2. Volume LEDs - Displays the volume level 3. Power Button - Turns switcher on or places it in standby mode... -
Page 6: Captive Screw
Note: The IR receiver and IR transmitter is optional for the UHD-SW-52ED. The compatible IR receiver (AT-IR-CS-RX) and IR transmitter (AT-IR-CS-TX) can be purchased through atlona.com. The wires of the emitter and receiver have been marked to differentiate the pin outs. -
Page 7: Audio
Important! When terminating cables, please ensure exposed adjacent wires do not touch. This may result in a short that can damage connected devices. BALANCED UNBALANCED Important! With unbalanced connections a jumper is needed between ground and negative to reduce noise Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: Tcp/Ip
IP address set using RS-232 commands or the webGUI. TCP/IP WebGUI Atlona has created an easy to use WebGUI for initial setup and later changes to the configuration of the UHD-SW. To begin, plug a LAN cable into the LAN port of the UHD-SW and your network, then type the IP... - Page 9 If your control system supports password protection, you can turn login mode on. The GUI always requires a password. Note: The username and password used in IP Login Mode will be the same login information as the WebGUI. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 10 Auto Switch - Turn auto switching on/off. Default is off. Video Settings Source - Select one of the five inputs to be routed to the output. Audio Settings Volume - Adjust output volume up or down Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 11 Note: User information will display for the admin only. Up to 3 users other than admin can be added. Note: Only the admin password can be changed. The username will always remain “root”. If the admin password is lost the system must be returned to factory settings and setup repeated. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 12 Note: When HDCP reports as non-compliant, only user created content is transmitted. Protected content from all sources (ex. Blu-ray, AppleTV, etc) is blocked. This function is controllable through RS-232 and TCP/IP. EDID Saved Save the current output’s EDID to memory. There are eight total EDID memories to save to. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 13 Download the latest firmware from http://www.atlona.com/UHD-SW-52ED.html then update the unit using the browse and upload buttons. Click the browse button and select the firmware to be loaded. Once selected, press the upload button. The progress bar will display the progress of the firmware update.
- Page 14 RS-232 is connected through a 9-pin female D connector. The pins will have functions associated with them, some will be unassigned. Function ---- Not used Transmit Receive ---- Not used Ground ---- Not used ---- Not used ---- Not used ---- Not used Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 15 Displays the software versions: ex. VersionMCU Ex. Version OSD Ex. Version x.x.xx firmware [MCU] OSD menu [OSD] DSP [DSP] FPGA [FPGA] Type AT-UHD-SW-52ED Displays the model information Mreset Mreset Reset device to manufacture default Lock Lock Locks the front panel buttons...
-
Page 16: Rs-232
IPQuit Logs out of TCP/IP Connection IPAddUser X Y TCP/IP user was added Adds a user for TCP/IP control Ex. IPAddUser Atlona 1234 X= user and Y= Password IPAddUser username password Displays a list of users and passwords username password... -
Page 17: Connection Diagram
Connection Diagram Video Audio HDBaseT Control POWER INPUT HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 5 VOLUME AT-UHD-SW-52ED AUDIO RS-232 MUTE OFF S/PDIF OUT Control System HDMI IN HDMI OUT HDBaseT OUT DC 48V AT-UHD-EX-100CE POWER AT-UHD-EX-100CE-RX ETHERNET... -
Page 18: Specifications
1.73 x 8.75 x 10.28 (inch) Rack size 1/2 rack, 1RU Weight Device 3.15 kg 1.44 lbs Certification Power Supply CE, FCC, cULus, RCM Product CE, FCC **4096x2160@50/60Hz & 3840x2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 19: Safety
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 20: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 21: Registration
Atlona’s authorized distributors, dealers and resellers can be found at www.atlona.com. Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
